HermanMiller

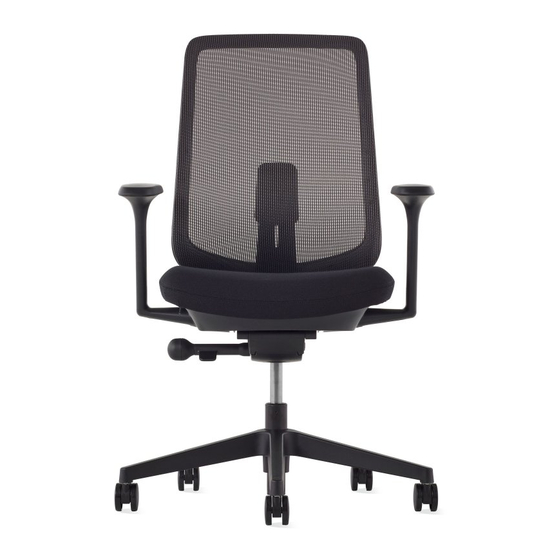

Verus

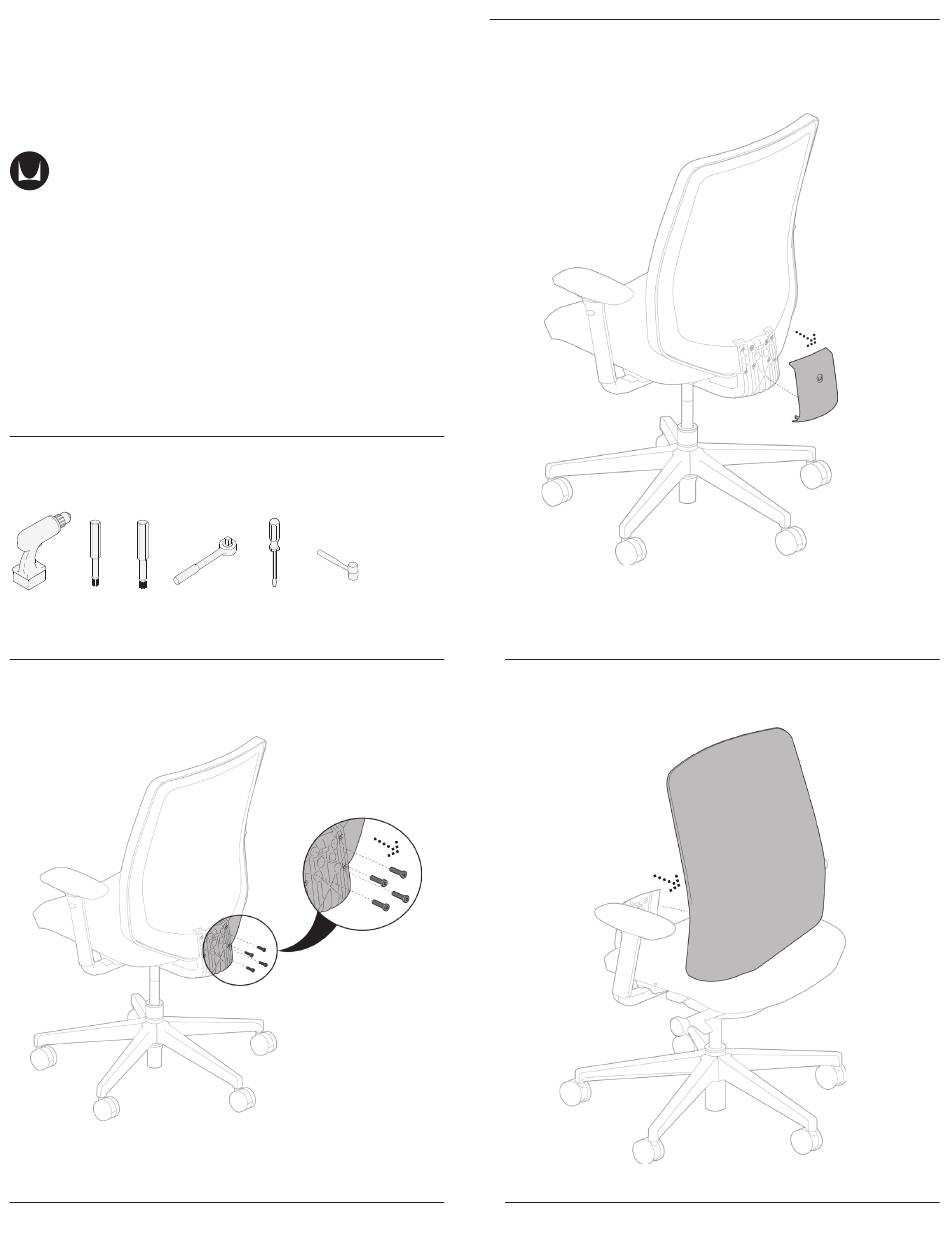

Task Chair Disassembly Instructions
TM
How to disassemble your chair.
Tools Required
T-27
T-30
13mm
Power Driver
Torx Bit
Torx Bit
socket wrench
Step 2
2.1 Take out the 4 bolt screws from the J-bar by using T-30 torx power drive.
HermanMiller for Verus
TM
Flat head
Rubber Mallet
screw driver
Upholstered Back
Step 1
1.1 Slide your fingers between the J-Bar and the cover, gently pry each
corner.
Step 3
3.1 Take out the upholstered back frame from J-bar.
1
1BN1VR rev A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HermanMiller Verus Task Chair
Summary of Contents for HermanMiller Verus Task Chair
- Page 1 Step 2 Step 3 2.1 Take out the 4 bolt screws from the J-bar by using T-30 torx power drive. 3.1 Take out the upholstered back frame from J-bar. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 2 Step 2 Step 1 2.1 Remove the back assembly by rotating the back forward to dis-engage hook features. 1.1 Remove three 13mm hex bolts using a wrench between the back and tilt. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 3 Step 2 Step 1 2.1 Remove the polymer back assembly by rotating the back forward to 1.1 Remove three 13mm hex bolts using a wrench between the back and tilt. disengage hooks. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 4 4.1 Disengage back from pocket in spine by pulling forward on back. Step 5 Step 6 5.1 Remove two T-27 screws at the top of the back. 6.1 Pull lower back forward and slide polymer back upward off of spine. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 5 9.1 Adjustable seat removal: Activate seats slide handle and slide tilt to 10.1 Fixed seat removal: insert phillips head screw driver into access the end stop. port to release fixed seat plug. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 6 Step 13 Step 14 13.1 Take out the tilt assembly from cylinder using mallet. 14.1 Take out the cylinder from the base by using rubber mallet. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 7 Step 15 15.1 Hold base and pull hard to remove caster from base. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 8 #2 Mallet Torx Bit Torx Bit Torx Bit Step 2 Step 3 2.1 Remove the 4 bolts from the J-bar using the T-30 torx bit. 3.1 Take out the mesh back from J-bar. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 9 Step 2 Step 1 2.1 Remove the back assembly by rotating the back forward to dis-engage hook features. 1.1 Remove three 13mm hex bolts using a wrench between the back and tilt. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 10 Step 2 Step 1 2.1 Remove the polymer back assembly by rotating the back forward to 1.1 Remove three 13mm hex bolts using a wrench between the back and tilt. disengage hooks. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 11 4.1 Disengage back from pocket in spine by pulling forward on back. Step 5 Step 6 5.1 Remove two T-27 screws at the top of the back. 6.1 Pull lower back forward and slide polymer back upward off of spine. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 12 Step 9 10.1 Adjustable seat removal: Activate seats slide handle and slide tilt to 9.1 Remove the seat assembly by sliding it forward. the end stop. 9.2 Depress retainer tab to release seat. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 13 13.1 Remove tilt from seat pan by sliding tilt out of track. The adjustable 14.1 Take out the tilt assembly from cylinder by pulling it hard. seat will required the seat slide handle to be activated. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 14 16.1 Take out the cylinder from the base by using rubber mallet. clockwise to unlock and slide footring off of cylinder. Step 17 17.1 Hold base and pull hard to remove caster from base. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 15 Phillips Bit 1/2” Wrench Power Driver Rubber Mallet Step 2 Step 3 2.1 Remove the seat by taking out the 4 screws in the bottom using 3.1 Remove the seat. phillips bit. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 16 7.1 Using a rubber mallet, tap up evenly on both sides until the back comes 6.1 Using a rubber mallet, gently tap the top end of the arm from underneath out of the track. and take out the arm. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 17 How to disassemble your chair. Tools Required 3/16” Hex 1/2” Wrench Rubber Mallet Power Driver Step 2 Step 3 2.1 Remove the seat. 3.1 Remove the 2 nuts holding the arms using 1/2 inch socket. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
- Page 18 4.1 Remove the arm. Repeat for opposite side. and screws, using a phillips bit. Step 6 6.1 Remove the back by taking out the 4 screws in the back using a 3/16” hex bit. HermanMiller for Verus 1BN1VR rev A Disassembly Instructions...
