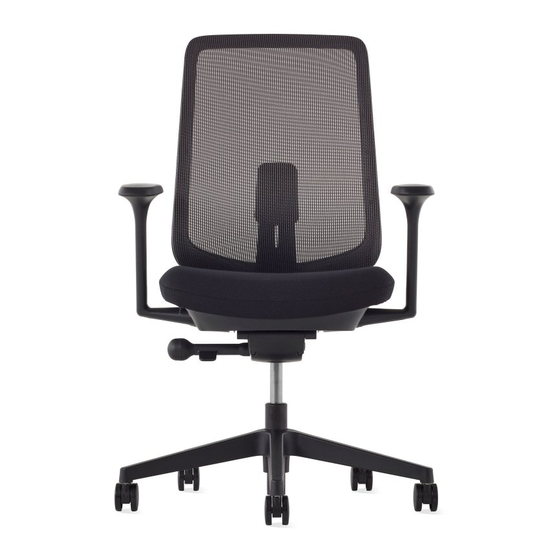

HermanMiller
Verus
Task Chair Disassembly Instructions
TM

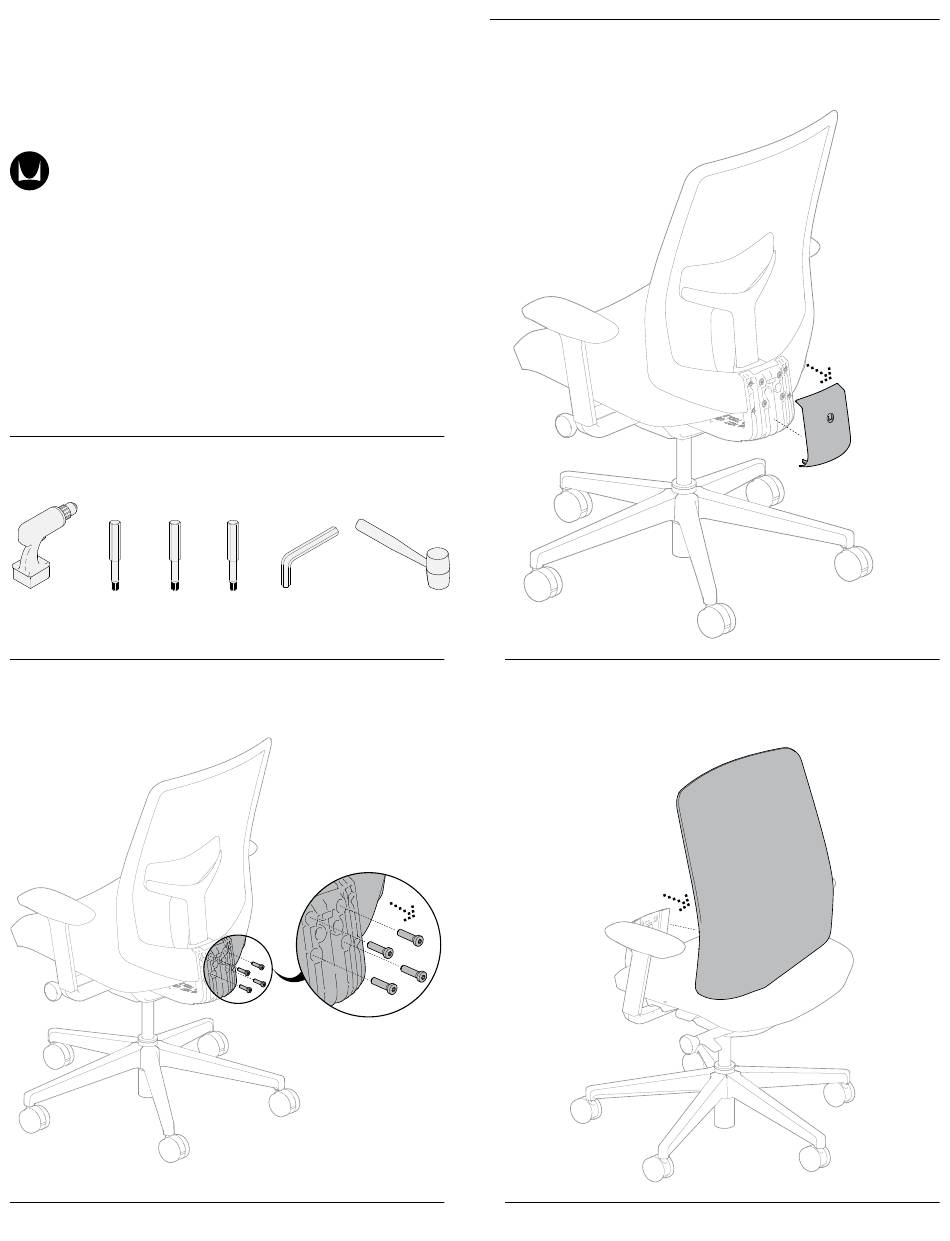

How to disassemble your chair.
Tools Required
T-25
T-30
Power Driver
Trox Bit
Trox Bit
Step 2
2.1 Take out the 4 bolt screws from the J-bar by using T-30 torx power drive.
HermanMiller for Verus
task chair
TM
T-45
Allen Wrench
Rubber Mallet
Trox Bit
Step 1
1.1 Slide your fingers between the J-Bar and the cover, gently pry each
corner.
Step 3
3.1 Take out the mesh back frame from J-bar.
1
1BHVBS rev A
Disassembly Instructions
