Ruckus SmartZone 300
Spare Fan Set
Quick Setup Guide for
SmartZone 5.1
This Quick Setup Guide provides basic instructions for
ordering and installing a spare fan assembly into the
Ruckus SmartZone 300 (SZ300) controller.
For information on advanced configuration and
management options, see the Getting Started Guide and
other appropriate documents, which are available for
download from the Ruckus Support website:
https://support.ruckuswireless.com/documents.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à
l'adresse suivante https://support.ruckuswireless.com.
このガイドの日本語版は
https://
support.ruckuswireless.com
でご覧ください。
이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta
guía en
https://support.ruckuswireless.com.
Spare Fan Set Ordering Information
To order a spare fan set for the SmartZone 300 controller,
contact Ruckus Support.
For information on how to contact Ruckus Support, visit
https://support.ruckuswireless.com/contact-us. When
asked for the part number, provide the information in the
table below.
Copyright
©
2018 ARRIS Enterprises LLC. All rights reserved.
Published November 2018, Part Number 800-71881-001 Rev A
Part Number
Description
902-S320-0000
Kit, Spare, fan assembly, SZ300 (6
fans)
Opening the Front Bezel
The front bezel helps prevent accidental access to the
controller's modules. Before you can install a module,
you must open the front bezel.
NOTE: If the controller is mounted in a rack with
adjacent units below the unit where a module needs to
be serviced, Ruckus recommends extracting the
controller from the rack approximately 5cm (2 in.). This
will provide clearance of the bezel when rotated out
towards you.
Follow these steps to open the front bezel.
1. With the controller in front of you, place your fingers
on both sides of the front bezel.
2. Pull the bezel toward you until it opens.
3. Gently lower the bezel to expose the controller's
replaceable modules.

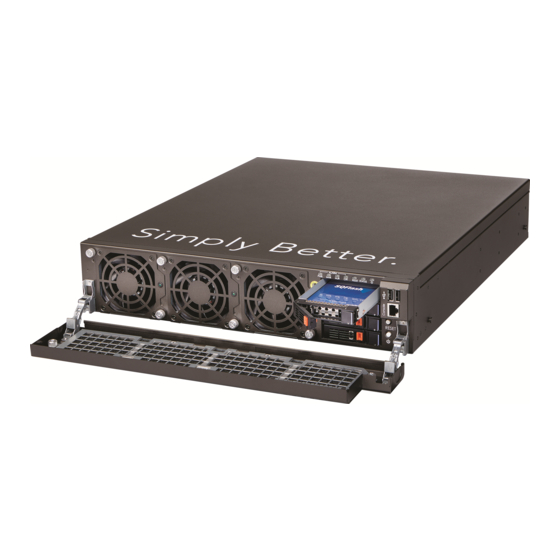

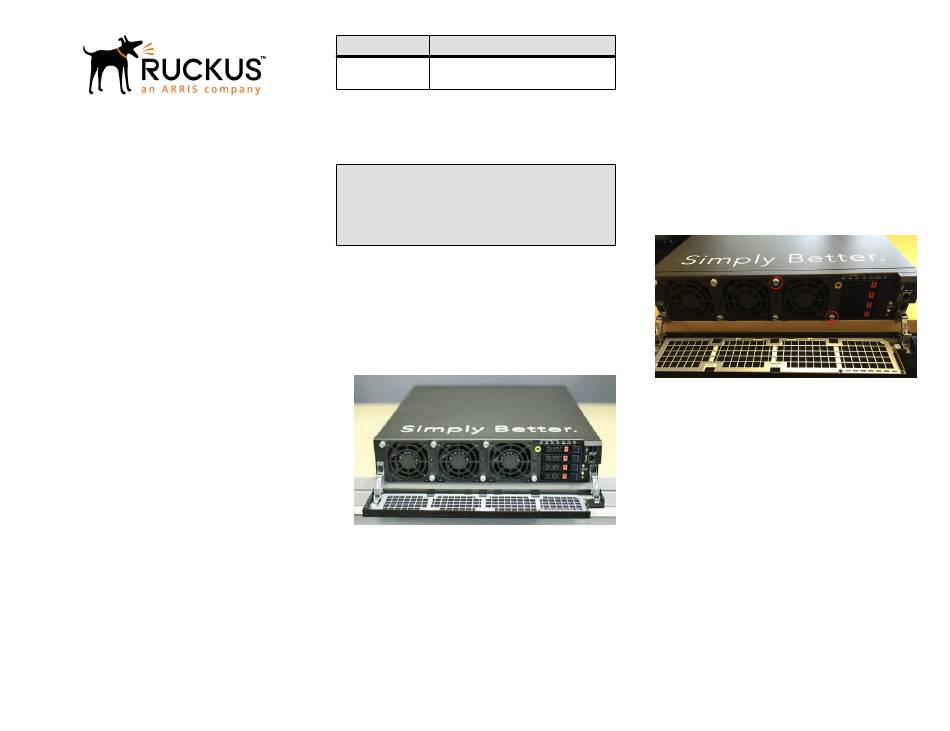

FIGURE 1 Controller with the front bezel open
Replacing the Fan Assembly
After you have obtained a spare fan assembly and
opened the front bezel of the SmartZone 300 controller,
you are ready to install the fan assembly.
The controller has three hot swappable fan modules on
the front panel. Each of the fan module includes two high
performance fans that helps ensure optimized air flow in
and around the controller and an integrated fan LED that
indicates the status of the fan module (green means
operational, off means faulty).
Follow these steps to replace the fan assembly.
1. With the front bezel open, position the controller
facing you.
2. Locate the failed fan module (and the presence of a
spinning or stopped fan).
3. With the front bezel open, position the controller
facing you.
Using either your fingers or a Phillips screwdriver,
turn the two thumb screws (that secure the fan
module to the controller's chassis) counterclockwise
to loosen them.
FIGURE 2 Loosen the two thumb screws (circled in red)
that secure the fan module
4. Hold the thumb screws that you loosened and gently
pull them out to slide the failed fan module out of the
chassis.
5. Remove the replacement fan module that you
obtained from Ruckus from its packaging.
6. Orient the fan module with the cable guide to the
right.
7. Slide the replacement fan module in until it is fully
flush with the front of the chassis.
The fan LED turns green, which indicates that the fan
module is receiving power and operating normally.
8. Hand tighten the two captive screws.
You have completed replacing a fan module in the
SmartZone 300 controller.
