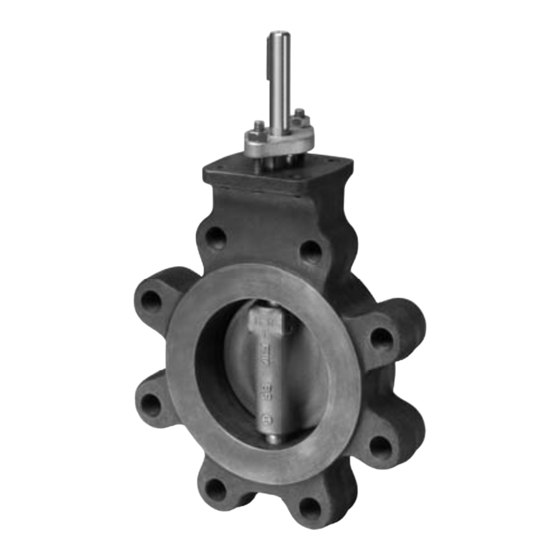

F6 Series 2-Way, ANSI Class 150 Butterfl y Valve
Reinforced Tefl on Seat, 316 Stainless Disc
Technical Data
Service
chilled, hot water, 60% glycol,
steam to 50 psi
Flow characteristic
modifi ed equal percentage, unidirectional
Controllable fl ow range
82°
Sizes
2" to 24"
Type of end fi tting
for use with ASME/class 125/150 fl ange
Materials
Body
carbon steel full lug
Disc
316 stainless steel
Seat
RPTFE
Shaft
17-4 PH stainless
Gland seal
PTFE
Bushings
glass backed PTFE
Media temperature range
-20°F to 400°F [-30°C to 204°C]
Body pressure rating
ANSI Class 150
Close-off pressure
285 psi
Rangeability
100:1 (for 30 deg to 70 deg range)
Maximum velocity
32 FPS
Leakage
bubble tight
Valve
Size
F650-150SHP
2"
102
F665-150SHP
2½"
146
F680-150SHP
3"
228
F6100-150SHP
4"
451
F6125-150SHP
5"
714
F6150-150SHP
6"
1103
F6200-150SHP
8"
2064
F6250-150SHP
10"
3517
F6300-150SHP
12"
4837
F6350-150SHP
14"
6857
F6400-150SHP
16"
9287
F6450-150SHP
18"
11400
F6500-150SHP
20"
14420
F6600-150SHP
24"
22050
F6750-150SHP
30"
34388
800-543-9038 USA
26
C
10°
20°
v
1.50
6.10
2.20
8.80
3.40
14
6.80
27
11
43
17
66
31
124
53
211
73
290
103
411
139
557
171
684
216
865
331
1323
491
1965
866-805-7089 CANADA
• Bubble tight shut-off to ANSI Class 150 Standards
• Long stem design allows for 2" insulation minimum
• Valve Face-to-face dimensions comply with API 609 & MSS-SP-68
• Designed to be installed between ASME/ANSI B16.5 Flanges
• Completely assembled and tested, ready for installation
Application
These valves are designed to meet the needs of HVAC and Commercial
applications requiring positive shut-off for liquids at higher pressures and
temperatures. Typical applications include chiller isolation, cooling tower
isolation, change-over systems, large air handler coil control, bypass and
process control applications. The large C
control valve solution for larger fl ow applications.
Valve
Nominal
Size
C
C
v
v
90°
60°
102
56
146
80
2½"
228
125
451
248
714
392
1103
607
2064
1135
3517
1934
10"
4837
2660
12"
6857
3592
14"
9287
4865
16"
11500
3270
18"
14420
7590
20"
22050
11550
24"
34388
18012
30"
30°
40°
50°
14
26
39
20
37
55
32
57
87
63
114
171
100
180
271
154
278
419
289
520
784
492
886
1336
677
1219
1838
960
1728
2606
1300
2340
3529
1596
2873
4332
2019
3634
5480
3087
5557
8379
4585
8253
12445
values provide for an economical
v
Type
Suitable Actuators
IN
2-way
Spring
2"
F650-150SHP
F665-150SHP
3"
F680-150SHP
4"
F6100-150SHP
5"
F6125-150SHP
6"
F6150-150SHP
8"
F6200-150SHP
F6250-150SHP
F6300-150SHP
F6350-150SHP
F6400-150SHP
F6450-150SHP
F6500-150SHP
F6600-150SHP
F6750-150SHP
MOD
60°
70°
80°
56
77
99
80
110
142
125
171
221
248
338
437
393
536
693
607
827
1070
1135
1548
2002
1934
2638
3411
2660
3628
4692
3771
5143
6651
5108
6965
9008
6270
8550
11058
7931
10815
13987
12128
16538
21389
18012
24563
32750
203-791-8396 LATIN AMERICA / CARIBBEAN
Non-Spring
ON/OFF
90°
102
146
228
451
714
1103
2064
3517
4837
6857
9287
11400
14420
22050
34388
