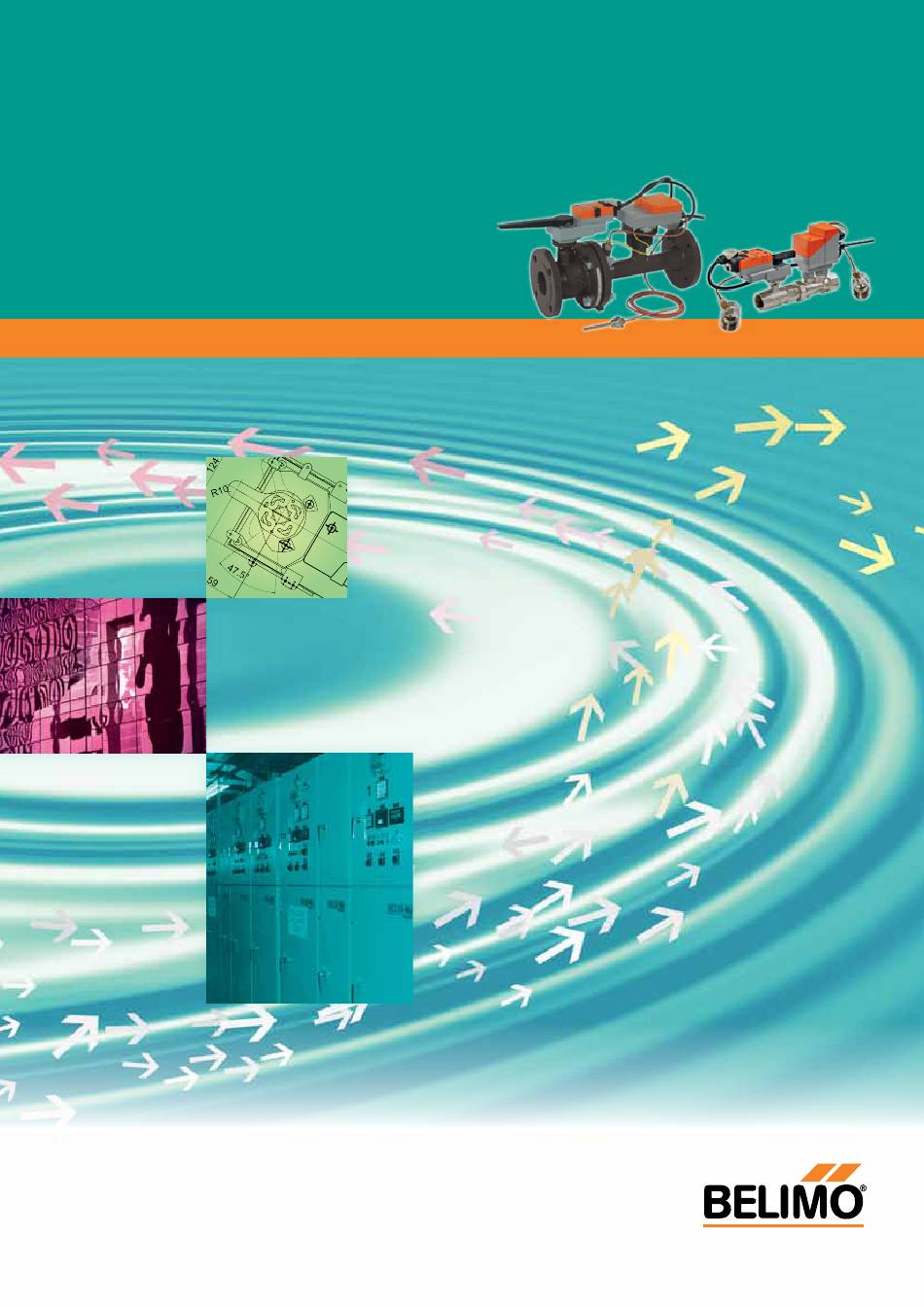

- Page 1 Belimo Pressure Independent Control Valve Range - Energy Valve Technical Databook Version 3.2 Belimo Asia Pacific...
- Page 3 Energy Valve Energy Valve – measures the load/coil supply and return temperature and calculates the power or energy consumed, and communicates to Higher Building Management levels...
-
Page 4: Product Overview
Product overview Torque Nominal Flow Adjustable max. Frequency Belimo Energy Valve™ Model No. [Hz] [mm] [Nm] [l/s] [l/min] flow rate [m³/h] EV015R+BAC 50/60 0.35 0.38…1.26 EV020R+BAC 50/60 0.65 0.7…2.34 EV025R+BAC 50/60 1.15 1.24…4.14 EV032R+BAC 50/60 10Nm 1.94…6.48 EV040R+BAC 50/60 10Nm 2.7…9... -
Page 5: Technical Data Sheet
• Control modulating • For modulating water-side control of air handling systems and heating systems • Ethernet 10/100 Mbit/s, TCP/IP, integrated web server • Communication via BACnet IP, BACnet MS/TP, Belimo MP-Bus or conventional control Type overview Model No. Frequency kvs theor.*... - Page 6 Characterised control valve (CCV) with sensor-operated flow rate or EV..R+BAC power control, power and energy-monitoring function, 2-way, internal thread Technical data Functional data Pressure rating PN16 Closing pressure ∆ps 1380kPa Differential pressure ∆pmax 350kPa Flow characteristic Equal percentage (VDI/VDE 2178), linear Leakage rate Air bubble-tight (Leakage rate A, EN12266-1) Pipe connections...
- Page 7 • Control modulating • For modulating water-side control of air handling systems and heating systems • Ethernet 10/100 Mbit/s, TCP/IP, integrated web server • Communication via BACnet IP, BACnet MS/TP, Belimo MP-Bus or conventional control Type overview Model No. Frequency ps** n(gl)
- Page 8 Characterised control valve (CCV) with sensor-operated flow rate or P6..W..EV-BAC power control, power and energy-monitoring function, 2-way, PN16 flange Technical data Functional data Pressure rating PN16 Closing pressure ∆ps 690kPa Differential pressure ∆pmax 340kPa Flow characteristic Equal percentage (VDI/VDE 2178), linear Leakage rate Air bubble-tight (Leakage rate A, EN12266-1) Pipe connections...
-
Page 9: Product Features
EV..R+BAC / P6..W..EV-BAC Product features Mode of operation The actuator is comprised of four components: characterised control valve (CCV), measuring pipe with volumetric flow sensor, temperature sensors and the actuator itself. The adjusted maximum flow ( max) is assigned to the maximum positioning signal (typically 10V/100%). - Page 10 EV..R+BAC / P6..W..EV-BAC Product features 100% max is the maximum flow rate which has been set with the greatest positioning signal, e.g. 10V. max can be set to between 30% and 100% of nom. min 0% (non-variable). Y [V] 100% Performance definition Qmax is the set maximum power output on the heat exchanger (in power control operating mode)
- Page 11 Additional information regarding the integrated web server can be found in the separate documentation. “Peer to Peer” connection http://belimo.local:8080 The Notebook must be set to “DHCP”. Make sure that only one network connection is active.
-
Page 12: Electrical Installation
EV..R+BAC / P6..W..EV-BAC Product features Power and energy monitoring function The actuator is equipped with two temperature sensors. A sensor (T2) must be installed at the valve and the second sensor (T1) must be installed on-site on the other side of the water circulation. -
Page 13: Installation Notes
The water quality requirements specified in VDI 2035 must be adhered to. Belimo valves are regulating devices. In order for these control tasks to be able to be carried out in the long run as well, they are to be kept free of solid particles (e.g. welding beads during installation work). - Page 14 EV..R+BAC / P6..W..EV-BAC Installation notes Maintenance The system must not be returned to service until the ball valve and the rotary actuator have been properly reassembled in accordance with the instructions and the pipelines have been refilled in the proper manner. Flow direction The direction of flow, specified by an arrow on the housing, is to be complied with, since otherwise the flow rate will be measured incorrectly.
-
Page 15: General Information
EV..R+BAC / P6..W..EV-BAC Installation notes Installation of immersion sleeve and DN65-DN150 temperature sensor The valve is equipped with two temperature sensors: • T2: One sensor is already mounted in the valve unit. • T1: The second sensor must be mounted at the installation site ahead of the consumer (valve in the return line;... - Page 16 EV..R+BAC / P6..W..EV-BAC Dimensions [mm] / weight Dimensional drawings min. Y Type Weight [mm] [”] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] approx. [kg] EV015R+BAC G1/4” EV020R+BAC G1/4” EV025R+BAC G1/4” EV032R+BAC 1 1/4 G1/4” EV040R+BAC 1 1/2 G1/4” EV050R+BAC G1/4”...
- Page 17 EV..R+BAC Mounting instructions 90° 90° x D N ≥ 5 AC 24 V / DC 24 V BACnet IP DC 0 ... 10 V – – DC 0 ... 10 V TCP/IP Web-Browser Web-Browser BACnet MS/TP = D– = A –...
- Page 18 EV..R+BAC Mounting instructions ~ 0.8 m ~ 3.0 m UL marked actuators is optional, please contact your local Sales Representative for details.
- Page 19 P6..W..EV-BAC Mounting instructions M18: 130 Nm M20: 190 Nm UL marked actuators is optional, please contact your local Sales Representative for details.
- Page 20 P6..W..EV-BAC Mounting instructions ~ 10 m 65 ... 400 ≤30 mm ½“ ≥15 mm DN 65 = 30 mm AC 24 V / DC 24 V – 90° 90° Y DC 0 ... 10 V U DC 0 ... 10 V Web-Browser BACnet IP BACnet MS/TP...
