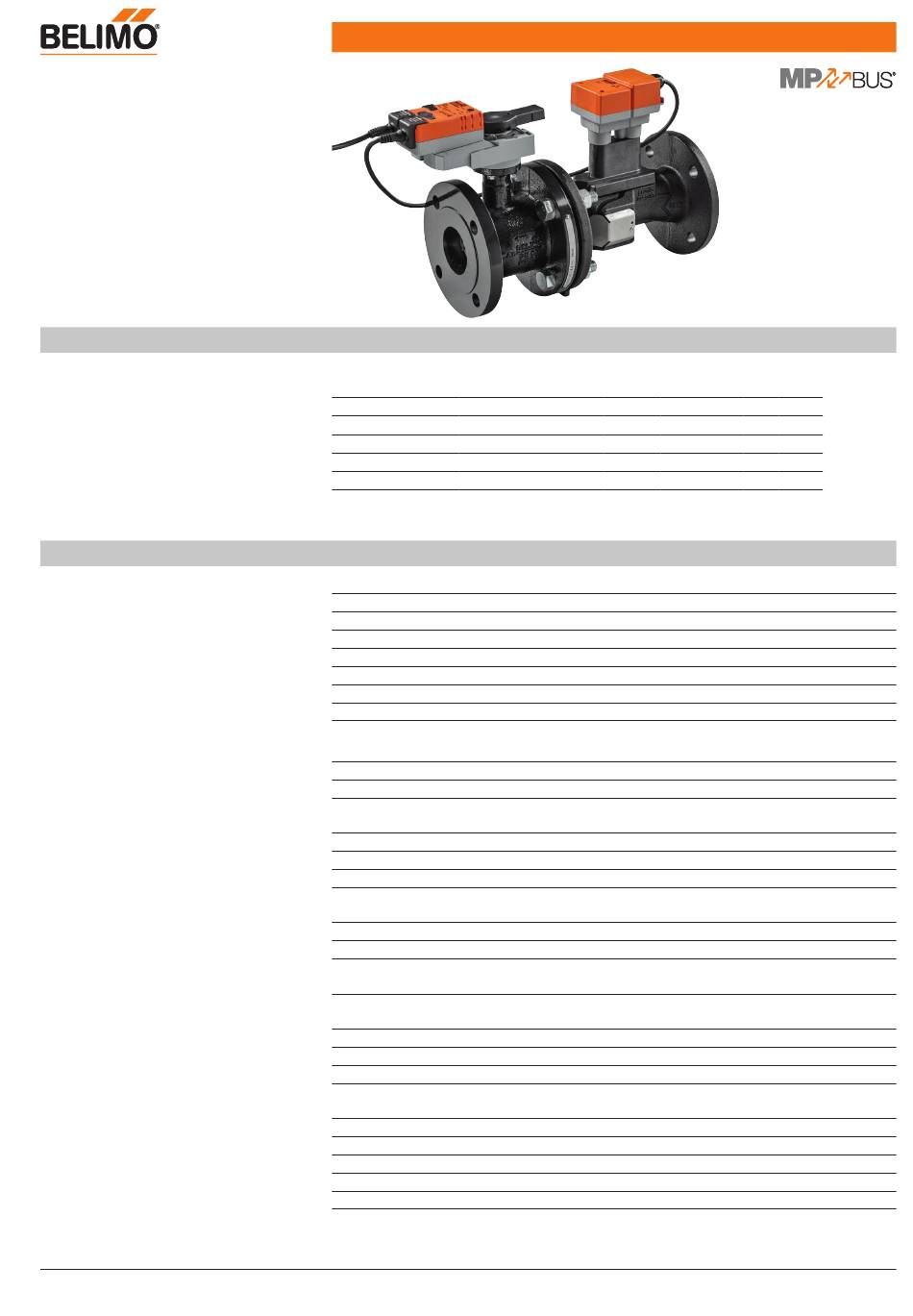

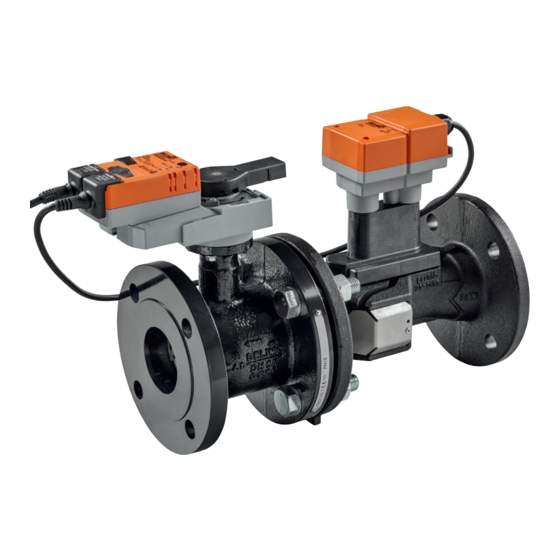

Characterised control valve with
sensor-operated flow control, 2-way,
Flange, PN 16 (EPIV)
• Nominal voltage AC/DC 24 V
• Control modulating, communicative
• For closed cold and warm water
systems
• For modulating control of air-
handling and heating systems on the
water side
• Communication via Belimo MP-Bus
or conventional control
• Conversion of active sensor signals
and switching contacts
Type overview
Technical data
Functional data
www.belimo.com
Technical data sheet
Type
EP065F+MP
EP080F+MP
EP100F+MP
EP125F+MP
EP150F+MP
kvs theor.: Theoretical kvs value for pressure drop calculation
Electrical data
Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption in rest position
Power consumption for wire sizing
Connection supply / control
Parallel operation
Torque Motor
Operating range Y
Input Impedance
Operating range Y variable
Options positioning signal
Position feedback U
Position feedback U note
Position feedback U variable
Sound power level Motor
Adjustable flow rate V'max
Control accuracy
Media
Medium temperature
Close-off pressure ∆ps
Differential pressure ∆pmax
Flow characteristic
Leakage rate
Pipe connectors
Installation position
Servicing
Manual override
EP..F+MP • en-ap • 2019-06-03 • subject to changes
DN
DN
V'nom
V'nom
[ ]
["]
[ l/s]
[ l/min]
65
2 1/2
8
480
80
3
11
660
100
4
20
1200
125
5
31
1860
150
6
45
2700
AC/DC 24 V
50/60 Hz
AC 19.2...28.8 V / DC 21.6...28.8 V
9.5 W
6.5 W
13 VA
Cable 1 m, 4 x 0.75 mm²
Yes (note the performance data)
20 Nm (DN 65...80)
40 Nm (DN 100...150)
DC 2...10 V
100 kΩ
Start point DC 0.5...24 V
End point DC 8.5...32 V
Modulating (DC 0...32 V)
DC 2...10 V
Max. 1 mA
Start point DC 0.5...8 V
End point DC 2...10 V
45 dB(A)
30...100% of Vnom
±5% (of 25...100% Vnom) @ 20°C / Glycol 0%
vol.
Cold and warm water, water with glycol up to
max. 60% vol.
-10...120°C
690 kPa
340 kPa
equal percentage (VDI/VDE 2178), optimised in
the opening range (switchable to linear)
air-bubble tight, leakage rate A (EN 12266-1)
Flange PN 16 according to EN 1092-2
upright to horizontal (in relation to the stem)
maintenance-free
with push-button, can be locked
EP..F+MP
kvs theor.
PN
n(gl)
[ m³/h]
[ ]
[ ]
16
3.2
50
74
16
3.2
126
16
3.2
16
3.2
195
16
3.2
254
1
