- Page 1 Belimo Pressure Independent Control Valve Range - EPIV Technical Databook Version 3.3 Version 3.3 Belimo Asia Pacifi c...
- Page 3 Electronic Pressure Independent Control Valve (EPIV) EPIV – uses a flow sensor and an electronic controller instead of a mechanic regulator to allocate a defined flow...
-
Page 4: Product Overview
Product Overview Torque Nominal Flow Adjustable max. Frequency Electronic Pressure Model No. Model No. Independent Valve EPIV [l/s] [l/min] [Hz] [mm] [Nm] fl ow rate [m³/h] 50/60 0.35 0.38…1.26 EP015R+MP EP020R+MP 50/60 0.65 0.7…2.34 50/60 1.15 1.24…4.14 EP025R+MP EP032R+MP 50/60 10Nm 1.94…6.48 50/60... -
Page 5: Technical Data Sheet
• Nominal voltage AC/DC 24V • Control modulating • For modulating water-side control of air handling units and heating systems • Communication via Belimo MP-Bus or conventional control • Conversion of (active) sensor signals and switching contacts Type overview Model No. -
Page 6: Product Features

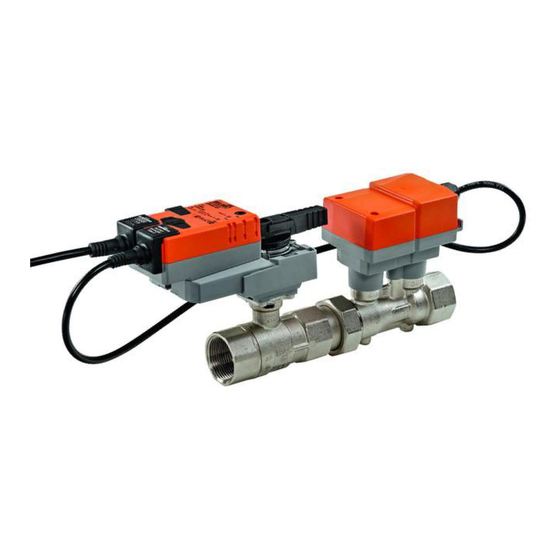

Characterised control valve (CCV) with sensor-operated flow control, EP..R+MP 2-way, with internal thread Technical data Functional data Closing pressure ps 1380 kPa Differential pressure pmax 350kPa Flow characteristic Equal percentage (VDI/VDE 2178), linear Leakage rate Air bubble-tight (Leakage rate A, EN12266-1) Pipe connections Internal thread (ISO 7-1/ EN10226-1) Installation position... - Page 7 PN16 • Nominal voltage AC/DC 24V • Control modulating • For modulating water-side control of air handling unit and heating systems • Communication via Belimo MP-Bus or conventional control • Conversion of (active) sensor signals and switching contacts Type overview Model No.
- Page 8 Characterised control valve (CCV) with sensor-operated flow P6..W..E-MP control, 2-way, with flange PN 16 Technical data Functional data Installation position Upright to horizontal (in relation to the stem) Maintenance Maintenance-free Manual override Gear disengagement with push-button, can be locked Running time Safety Protection class IEC/EN III Safety extra-low voltage...
- Page 9 EP..R+MP / P6..W..E-MP Product features Control characteristics The velocity of the medium is measured in the measuring component (sensor electronics) and converted to a flow rate signal. The positioning signal Y corresponds to the power Q via the exchanger, the volumetric flow is regulated in the EPIV.
-
Page 10: Electrical Installation
Adjustable-parameter actuators The factory settings cover the most common applications. Individual parameters can be altered with the Belimo service tool MFT-P or with the service tool ZTH AP. Positioning signal inversion This can be inverted in cases of control with with an analogue positioning signal. The inversion causes the reversal of the standard behaviour, i.e. - Page 11 EP..R+MP / P6..W..E-MP Functions Functions when operated on MP-Bus Connection on the MP-Bus Power topology – There are no restrictions for the network topology (star, ring, tree or mixed forms are permitted). Supply and communication in the same 3-wire cable A) Additional actuators and •...
-
Page 12: Operating Controls And Indicators
EP..R+MP / P6..W..E-MP Operating controls and indicators Pushbutton and green LED display No voltage supply or malfunction Illuminated: Operation Switches on angle of rotation adaption followed by standard operation Press button Pushbutton and yellow LED display Adaption Off: Standard operation without MP-Bus Power Illuminated: Adaption or synchronising process active... -
Page 13: General Information
EP..R+MP / P6..W..E-MP Installation notes Inlet section In order to achieve the specified measuring accuracy, a flow-calming section or inflow section in the direction of the flow is to be provided upstream from the measuring pipe flange. Its dimensions must be at least 5 x DN. DN L min. - Page 14 EP..R+MP / P6..W..E-MP Dimensions [mm] / weight Dimensional drawings min. Y Type Weight [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] approx. [kg] EP015R+MP EP020R+MP EP025R+MP EP032R+MP EP040R+MP EP050R+MP EP050R+MP -N Dimensions [mm] / weight Dimensional drawings min. Y If Y <180 mm, then the extension of the hand crank must be dismantled as necessary.
- Page 15 EP..R+MP Mounting Instructions 90° 90° x D N ≥ 5 – – DC 0 ... 10 V DC 0 ... 10 V DC 0 ... 10 V UL marked actuators is optional, please contact your local Sales Representative for details.
- Page 16 P6..W..E-MP Mounting Instructions M18: 130 Nm M20: 190 Nm UL marked actuators is optional, please contact your local Sales Representative for details.
- Page 17 P6..W..E-MP Mounting Instructions 90° 90° ≥ 5 x DN AC 24 V / DC 24 V – – DC (0)2...10V Sensor / DC (0)2...10V DC 2...10V MP / DC 2...10V UL marked actuators is optional, please contact your local Sales Representative for details.
