Before replacing actuator, damper must be inspected and

determined to be fully functional. See NFPA 80 &/or NFPA 105 for

Replacement of Greenheck MP2985 & MP 2986

Contents

................................................................................................................ 2

Code and Standard Issues............................................................................. 2

NFPA 80 (Fire) & NFPA 105 (Smoke) ............................................................ 3

Local Code Approval ...................................................................................... 4

Cross Reference ............................................................................................ 5

Application ..................................................................................................... 7

Mounting ...................................................................................................... 12

Linkage mounting ........................................................................................ 15

Miscellaneous parts ..................................................................................... 16

Thermal sensor replacements - BAE165 US ............................................... 16

Building Official / Fire Marshal Notification Form .......................................... 20

Contacts:

East Coast 800 543-9038 x3119

Aaron Nobel 203 749-3119

Mike Knipple 203 749-3170

Installer must be trained and experienced with repair

of fire and smoke dampers and actuators.

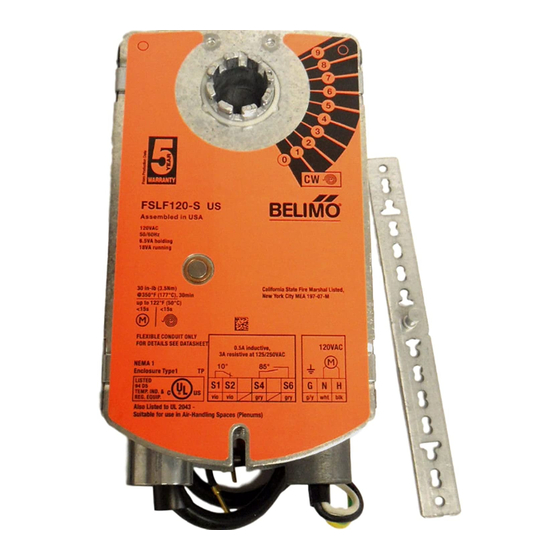

Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series

WARNING!

recommended check list.

INSTRUCTION SHEET

Motors with Belimo FSxx Series

West Coast 800 987-9042

Larry Felker 775 355-2461 (250-4160 Cell)

Laure Pomianowski 775 355-2466

WARNING!

January 2015

Table of Contents

Need help?

Do you have a question about the FS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Belimo FS Series

Page 1: Table Of Contents
Larry Felker 775 355-2461 (250-4160 Cell) Mike Knipple 203 749-3170 Laure Pomianowski 775 355-2466 WARNING! Installer must be trained and experienced with repair of fire and smoke dampers and actuators. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 2: Code And Standard Issues
Fire Fighters Smoke Control System (FSCS) panel. Retesting is required. A permit and inspection may be required since connections to an alarm system have been touched. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 3: Nfpa 80 (Fire) & Nfpa 105 (Smoke)
Test voltage input to actuators and repair as necessary if voltage is not correct. Old breakers often deliver below 115V and failed actuators may be due to power supply problems. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 4: Local Code Approval
Local Code Approval While it is not detailed in codes, the following rules should be followed for selecting Belimo actuators for replacement: Check the technical specifications to ensure an “equal or better” actuator is used.  Temperature – the replacement actuator shall have been UL555S tested at the same or better temperature as the original actuator.
Page 5: Cross Reference
UL555S testing. larger sized damper use the UL listed sizing. “What’s New” Each manufacturer tests Belimo separately www.belimo.us/firesmoke and has different sizes UL555S listed. for a cross reference by manufacturer. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 6 None. Call if needed. ASK79.350 350°F (177°C) None. Call if needed. Optional Two Auxiliary Switches Fixed 5° and 85° For more MultiProducts and ECM see Belimo Cross Reference at www.belimo.us/firesmoke Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 7: Application
The motors above are connected by linkage as shown in the photographs below. The Belimo FSLF can be direct coupled if space exists for mounting. A bracket may have to be fabricated from 16 ga. Sheet metal to hold the anti-rotation strap. The geometry of the situation determines the mounting method.
Page 8 Replace the fusible link if necessary and test the closing Test when reattached to ensure function. the damper closes if fusible link melts. THIS SPRING AND FUSIBLE LINK MUST REMAIN IN PLACE. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 9 Close-up view showing external shaft spring and part of the linkage. Both will be removed so that the Belimo can be mounted on the shaft. Crankarm is connected to the damper shaft. The Belimo may be direct coupled over the shaft. For short shaft mounting, place clamp of actuator between actuator and damper.
Page 10 View from below the damper and actuator Disassembly of MP mounted motor Damper shaft / Jackshaft extends out thru motor. Damper Bracket shaft External Spring Damper Motor frame Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 11 Remove spring, bracket and MP motor. Do not remove bearing or bracket. Jackshaft extends beyond the outboard bearing bracket and the Belimo FSLF can be direct coupled. A plate will be needed to attach the anti-rotation strap. An alternate plate is available from Greenheck and is shown below.
Page 12: Mounting
Spring is under high torsion and may cause serious injury! If any external springs are present, exercise caution – wear face and hand protection WARNING! Read Data Sheet provided in box with each actuator for specific wiring details. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 13 The most common are shown here Alternately, the anti-rotation strap can be attached to any Belimo linkage, an electrical J-box cover plate, or to a pieced of U-channel. It is important to remember that the ducts are fall-away. The actuator mounting cannot interfere with the ability of the duct to fall from the damper.
Page 14 4 box can be attached to FSNF the actuator. ½” threaded connector 2 x 4 box and Chase nipple blank cover Existing flex connector and incoming power wires Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 15: Linkage Mounting
Read Data Sheet provided in box with each actuator for specific wiring details. Possible alternate arrangements for damper clip. (FSNF, FSAF actuators shown.) Belimo linkage kits: http://www.belimo.us/belimo/media// Technical_Documents/Accessories/ Mechanical_Accessories.pdf Mounting Methods Guide: http://www.belimo.us/media/downloa ds/Instructions/Application_Guides/M ounting_Methods.pdf Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 16: Miscellaneous Parts
Miscellaneous parts Should they be needed, Belimo carries a range of parts. Ball joints and 5/16” rods are available from most distributors. Where the crank arm on the jackshaft is broken or not of the type needed, the KH12 fits over the shaft without removing it.
Page 17 Where the original switches for signaling position to a Fire Fighters’ Smoke Control Panel or to local indicator lights must be replaced or are inoperative the Belimo –S model actuators may be used or a S2A-F may be installed. Belimo S2A-F...
Page 18 This is a major concern for Fire Marshals. The wiring below is commonly connected to alarm or smoke control electronic modules in modern systems. The functional sequence is the same. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 19  Damper and duct must be clean and free of all debris.  Test damper and controls per Fire Marshal’s checklist below.  Fire alarm company may need to be present to verify proper status indication at FSCS panel. Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
Page 20: Building Official / Fire Marshal Notification Form
Auto. Damper is normally Open; check sequence of operation. Damper Numbers or Location Identifying Numbers..……………………………………………………… Date……-…………-..…… Contractor………………………………………………………………………………………………………. Service Technician (Print)……………..……………………………………………………………………… Service Technician (Signed)……………..…………………………………………………………………… Phone Number (……)……………………………………………… Notes…….……………………………………………………………………………………………………… ……………..……………………………………………………………………………………………………. ……………...…………………………………………………………………………………………………… Greenheck MP2985 & MP2986 Motors with Belimo FSxx Series January 2015...
