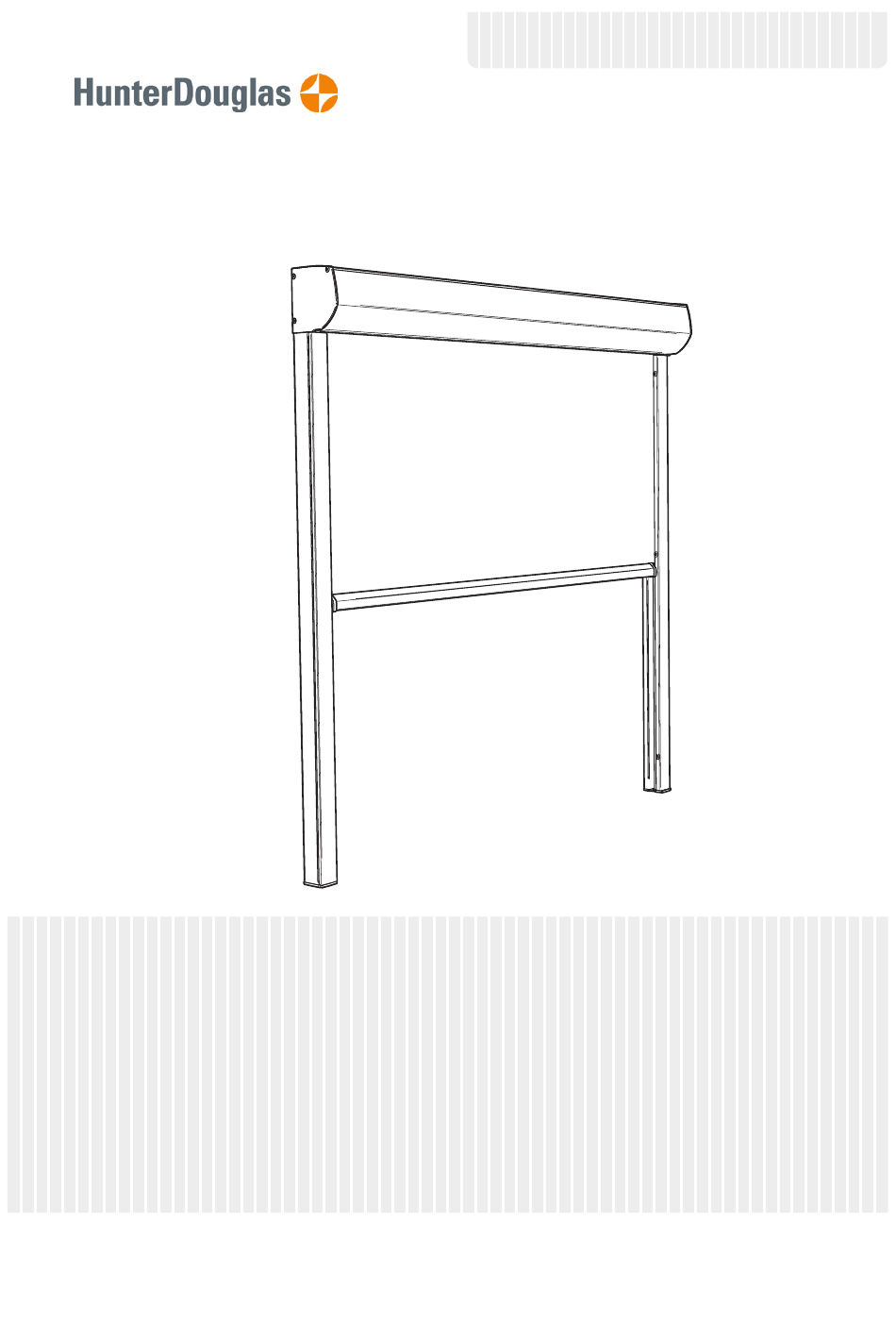

- Page 1 INSTALLATION - MAINTENANCE ZIP 100 Zip-screen Screw-fit side guides...
- Page 2 ZIP 100 Zip-screen Screw-fit side guides Installation - Maintenance • Ensure that the awning is fixed to a sufficiently secure base. If needed - contact the façade- or window supplier for specific information. • Check that the Zip-screen fits where supposed to be installed.
- Page 3 ZIP 100 Zip-screen Screw-fit side guides Installation - Maintenance Installing extension brackets (optional) h h ( ( m m m m ) ) No. brackets/rail No. brackets/rail < < 1 1 0 0 5 5 0 0 1 1 0 0 5 5 1 1 - - 1 1 8 8 0 0 0 0...
- Page 4 ZIP 100 Zip-screen Screw-fit side guides Installation - Maintenance Assembling the cassette + cassette support (optional) Lift the cassette on top of the guide rails, make sure not to damage the motor cable. Carefully assemble the legs of the cassette...
- Page 5 ZIP 100 Zip-screen Screw-fit side guides Installation - Maintenance Assembling the Zip guides Assemble the plastic guides for the fa- bric by sliding them onto the “zippers” on the sides of the fabric/front profile. See below. Make sure the plastic profiles are fitted correctly in the aluminium profiles.
- Page 6 ZIP 100 Zip-screen Screw-fit side guides Installation - Maintenance Assembling the cover profiles Finish the installation by assembling the cover profiles on both sides. Steer in the side of the cover profiles that are facing the window, make sure the plastic profile is not being stuck bet- ween the aluminium profiles, and that both alu.profiles and the plastic profiles...
-
Page 7: Maintenance
The original document may not be altered in text or version without the consent of Hunter Douglas Scandinavia www.hunterdouglas.se Hunter Douglas • Alingsås • Sweden Tel: +46-322 775 00 • E-mail: order@hunterdouglas.se © Hunter Douglas 1-2022 ® Registered Trademark of Hunter Douglas Scandinavia, Sweden...
