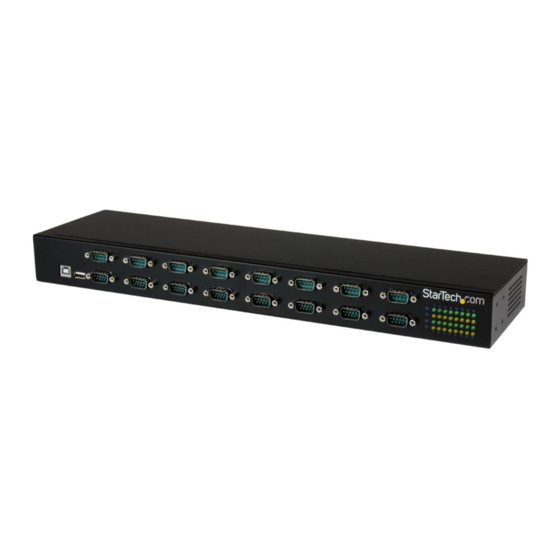

16-Port USB-to-Serial Adapter Hub
with Daisy Chain Support
ICUSB23216FD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ICUSB23216FD.
Manual Revision: 06/30/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB23216FD
Summary of Contents for StarTech.com ICUSB23216FD
- Page 1 16-Port USB-to-Serial Adapter Hub with Daisy Chain Support ICUSB23216FD *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Package contents ............................1 System requirements ..........................2 RS-232 pinout ............................. 2 Product diagram ..................3 Front view ..............................3 Back view..............................3 About the LED indicators ..............4 Installation ....................4 Install the USB serial hub with the power adapter ............... 4 Install the USB serial hub with the terminal block power ............ -
Page 4: Introduction
Introduction The ICUSB23216FD adds 16 RS232 serial ports with data transfer rates up to 921.6 Kbps and can be controlled by a desktop or laptop computer system using a single USB port. The durable metal chassis fits into standard 19-inch server storage racks for... -
Page 5: System Requirements
• Windows Server 2008 R2 • Windows Server 2003 • Mac OS 10.7 and later (tested up to 10.11) • Linux® 3.5 System requirements are subject to change. For the latest requirements, please visit www.startech.com/ICUSB23216FD. RS-232 pinout Signal Quick-start guide... -
Page 6: Product Diagram
Product diagram Front view USB Type-B connector Transmit LEDs DB9 serial connectors (host) (green) 1 to 16 Receive LEDs (yellow) USB Type-A connector (daisy chain) Back view 2-wire terminal block (9~36V DC input) DC power connector Quick-start guide... -
Page 7: About The Led Indicators
About the LED indicators The ICUSB23216FD features a set of transmit and receive LEDs for all of the 16 ports. For more information about what the LEDs signify, see the table below. LED behavior Significance Blinking Data is being transmitted through the port. -
Page 8: Install The Usb Serial Hub With The Terminal Block Power
Install the hub using the terminal block power input Warning! Make sure that the driver installation is complete before you plug in and connect the USB serial hub. 1. Insert the provided driver CD into your host computer. Note: The CD should automatically open and display all of the folders contained on the CD. -
Page 9: Use The Daisy Chain Feature
Use the daisy chain feature The ICUSB23216FD includes a daisy chain feature, allowing you to connect one ICUSB23216F serial hub or up to two ICUSB23216FD serial hubs. You can daisy chain up to three USB serial hubs, for a total of 48 ports. -
Page 10: Install The Serial Hub In A Server Rack
Install the serial hub in a server rack The ICUSB23216FD comes with the necessary hardware to install the serial hub in a regular server rack or a DIN rail. 1. To mount the serial hub, do one of the following: •... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
