340K(16-Port) \500K(24-Port) bytes buffer memory
Internal power adapter

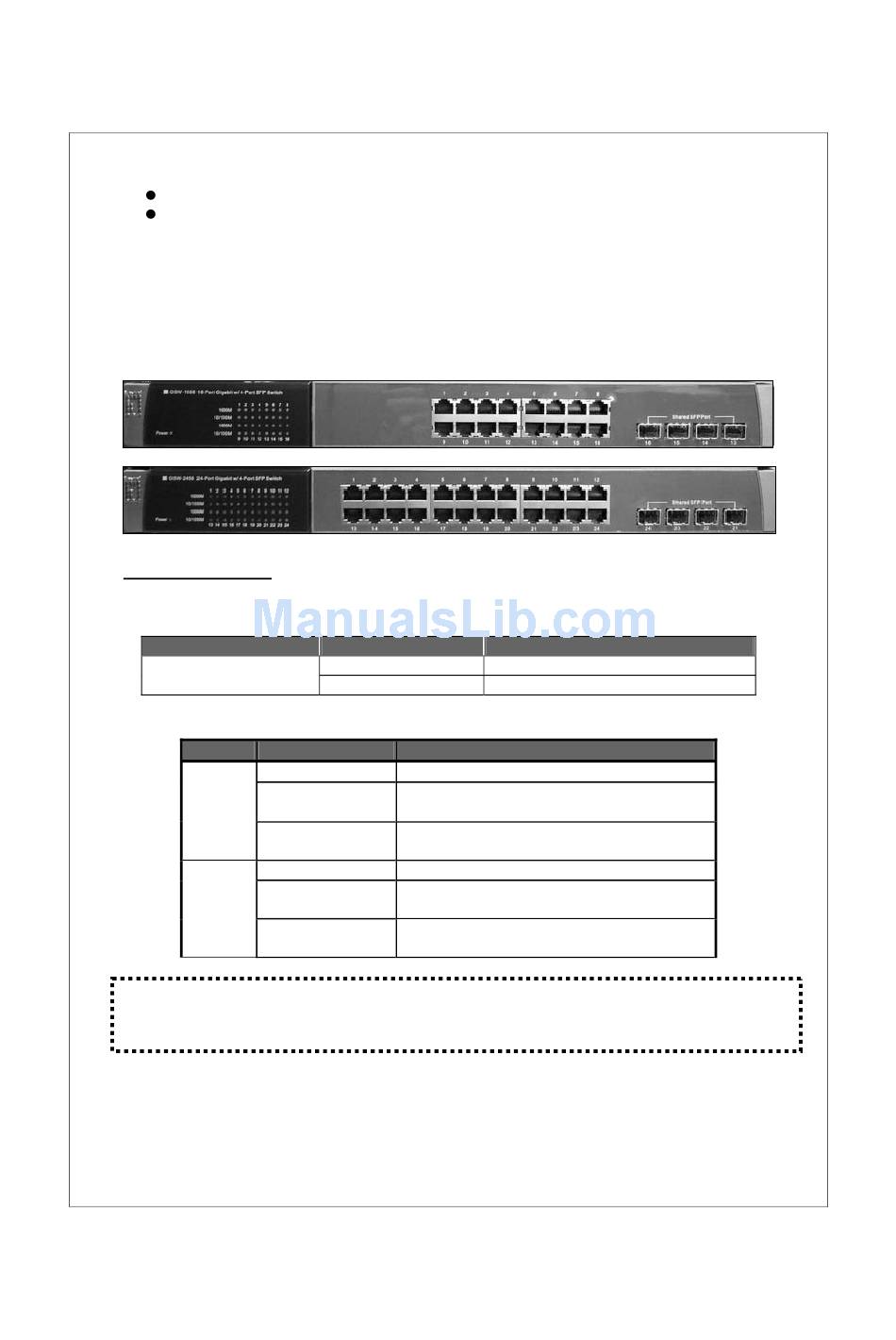

The Front Panel
The front panel consists of LED indicators. For detailed LED definition, please
refer to the next paragraph.
LEDs Definition
System LED
LED
Power
Port LEDs
LED
Steady Green
Blinking Green
1000M
Off
Steady Green
Blinking Green
10/ 100M
Off
Attention ：The Mini GBIC slot shares the same LED indicators with Gigabit RJ-45
(copper) ports.
Status
Steady Green
Off
Status
Valid port connection at 1000 Mbps
Valid port connection and there is data
transmitting/ receiving
Port disconnected or the port is connected
at 10 Mbps or 100 Mbps
Valid port connection at 10/ 100 Mbps
Valid port connection and there is data
transmitting/ receiving
Port disconnected or the port is connected
at 1000 Mbps
2
Operation
The switch is powered on
The switch is powered off
Operation
