Seagate LYVE Mobile Mount Quick Start Manual page 5

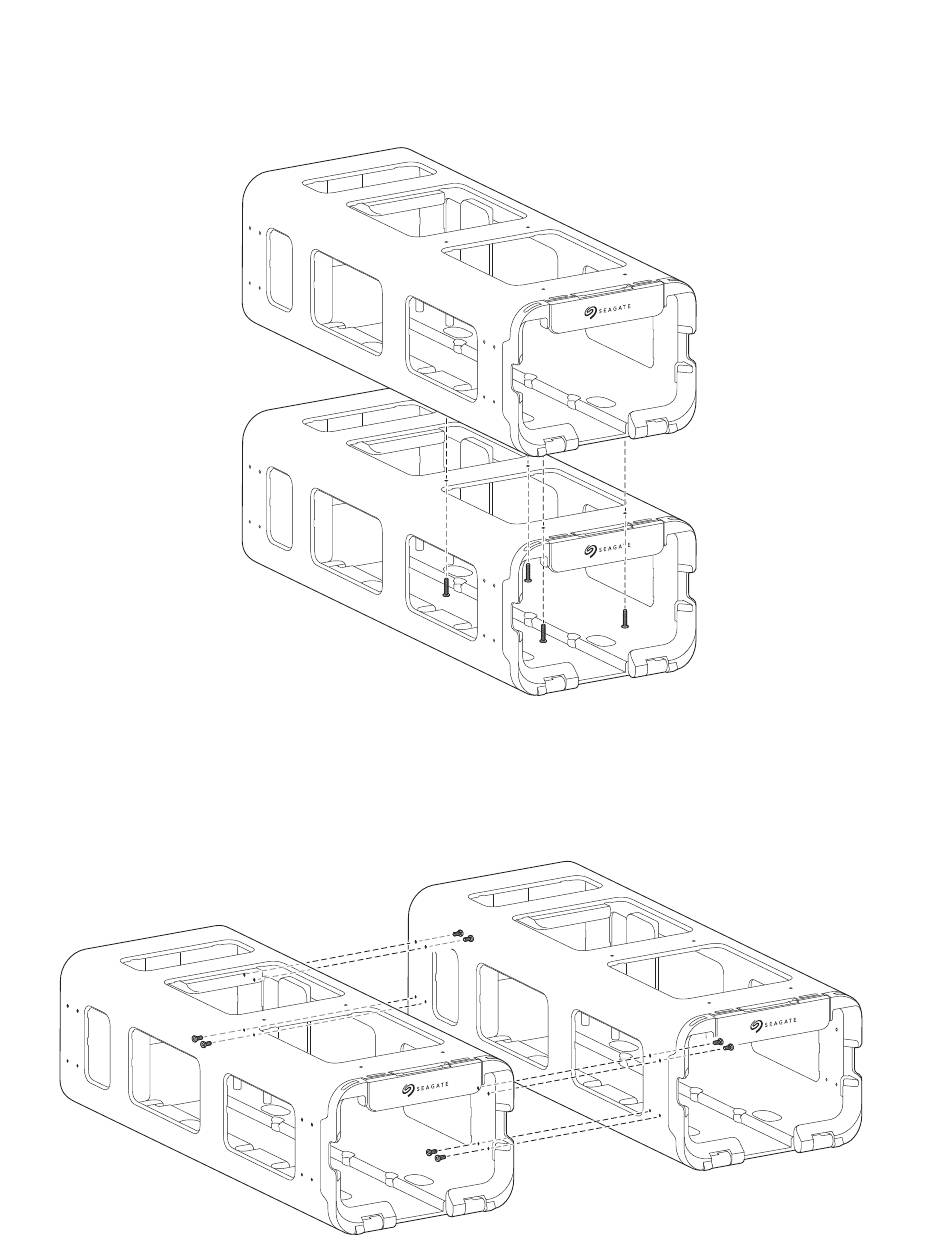

Connecting Lyve Mobile Mounts Vertically
Stack two Lyve Mobile Mounts and align the six attachment holes on the top and bottom of the
mounts. Use four M3-0.5 x L16 (5.8,1.0) screws to attach the two mounts.
Connecting Lyve Mobile Mounts Horizontally
Place two Lyve Mobile Mounts side-by-side and align the eight attachment holes on the sides of the
mounts. Use eight M3-0.5 x L7 (5.8,1.0) screws to attach the two mounts.
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
M 3
5
