Seagate LYVE Mobile Mount Quick Start Manual page 4

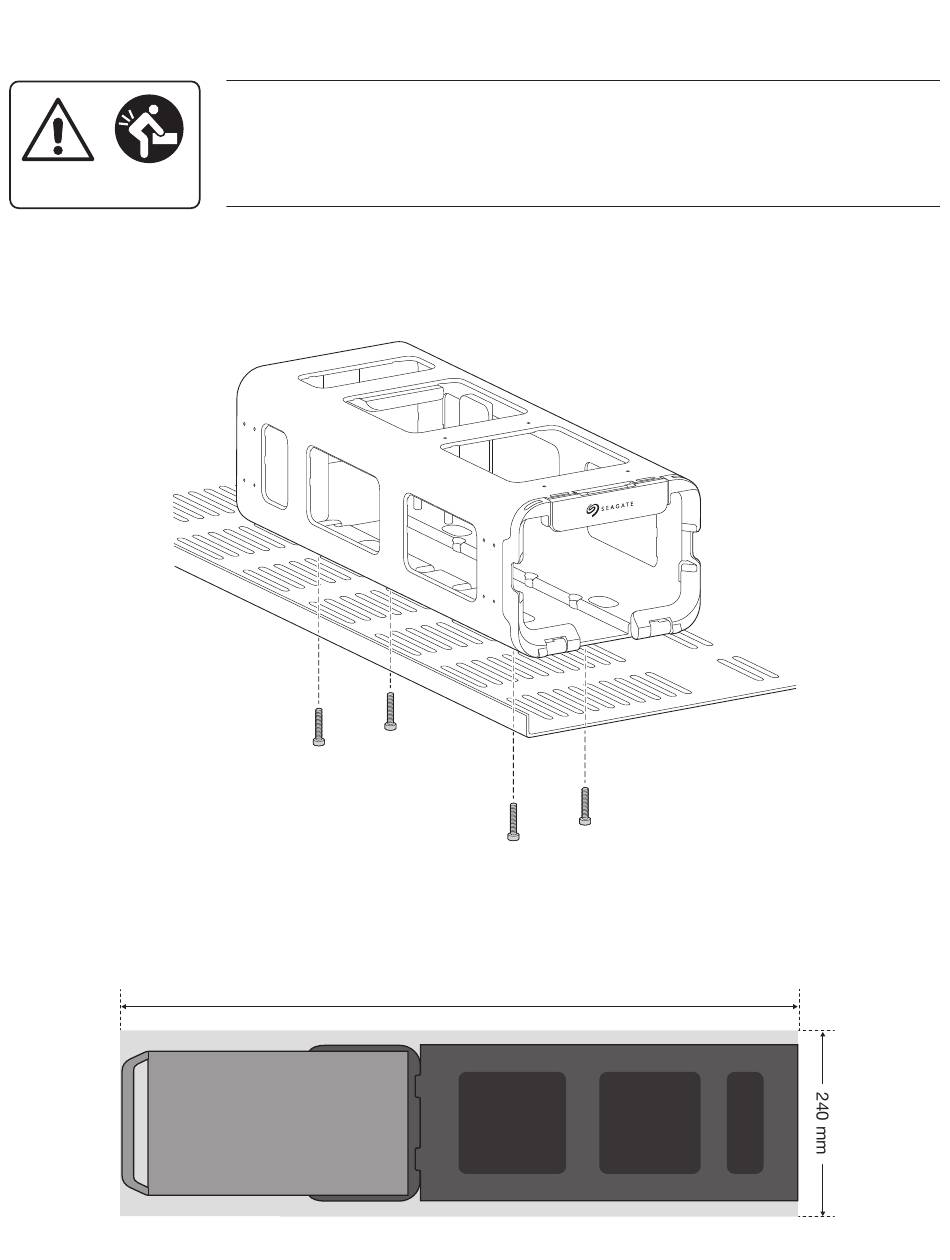

Mounting slots
CAUTION
Before installing Lyve Mobile Array, ensure that Lyve Mobile Mount is securely fixed to the vehicle to
avoid excessive motion. Attach Lyve Mobile Mount to the appropriate surface by inserting M6-0.1 x
L20 (10.0,6) socket cap screws into any of the M6 tap holes on the bottom of the mount. Use at least
four screws to secure the mount (two at the front of the mount, and two at the back).
Recommended clearance zones
4
Lifting hazard. The following instructions include moving and installing heavy
equipment. To avoid injury, always use proper lifting techniques.
Do not attempt to lift or assemble Lyve Mobile Mount with compatible devices inserted.
M 3
M 3
Lyve Mobile Array
M 3
M 3
970 mm
Lyve Mobile Mount
