  • Page 1                 QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2: Operation Specification

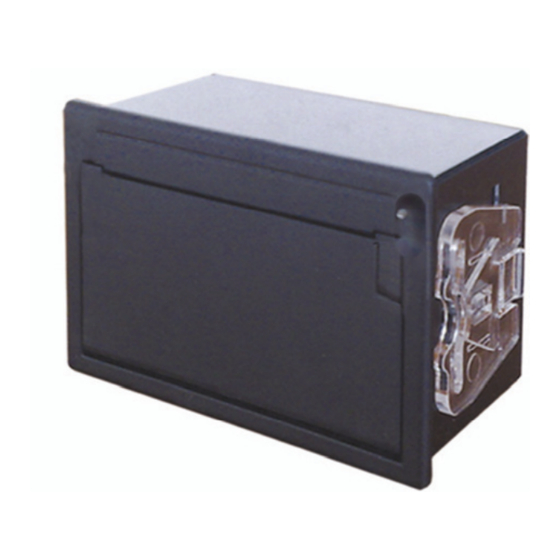

    快速安装手册  ●打印机各部件一览 Printer Parts Names   1.LF 键/电源指示灯 LF Button/ Indicator Light 6.齿轮 Gear 11.卡子 Fastener 2.纸仓开关 Lock 7.滚轴 Platen Roller 3.纸仓 Paper Case 8.电源接口 Power Connector 4.纸卷 Paper Roll 9.SET 键 SET Button 5.纸仓盖 Paper Case Cover 10.数据接口 Interface Connector  ...
  • Page 3 快速安装手册  ●尺寸 Size     WH-AA 型尺寸 Product Size: 外形尺寸:Outline Dimension: 83mm×58.5mm×47.5mm 开口尺寸:Installation Dimension: 78+0.5mm(W)×53.5+0.5mm(H) 嵌入深度:Inlaid Deepness: 45mm http://www.whkj.com.cn      010‐51655555 ...
  • Page 4: Installation Method

      安装方法:   请把打印机嵌入部分插入仪器或设备面板的安装孔内,并把塑料卡子从设备面板后面夹紧 打印机(如图)左右对称各一套,安装方法相同。 WH-AA 型不需要用螺丝和螺母固定。 所安装的面板厚度为 0.5~9mm 厚的金属板或塑料板;厚薄不会影响打印机安装的牢固性。 开口尺寸:78mm+0.5×53.5mm+0.5 Installation Method Insert the built-in part of printer into the installing orifice of instrument or equipment. As the picture show, fix the fastener onto the printer and tighten the screws.
  • Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. ...
  • Page 6: Replacing The Paper Roll

    快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 1 所示,箭头位置轻轻扣出旋转扳手,扣出后如图 2。 2.继续旋转扳手,这时打印头走纸轴与打印头分离,打开纸仓盖。 3.把打印纸装入,并拉出一截(超出一点撕纸牙齿),注意把纸放整齐,纸的方向为有药液一 面(光滑面)向上,如图 4。 4.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头,并把旋转 扳手推入复位。   5.接通打印机的电源,使机头转动,这时看一下纸是否走歪,待机或关上电源。   Replacing the Paper Roll 1. Unsheathe the circumrotated wrench from the position the arrow point to as shown in Fig.1 and circumgyrate it until the paper cover opened as shown in Fig 2. 2.
  • Page 7: Printer Cleaning

    快速安装手册  ●清洁 Cleaning   清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后,用棉棒沾少许酒精,轻轻擦拭打印机热敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then Wipe the print head with a cleaning pen and Use a cloth moistened with an alcohol solution to clean the paper sensor and the platen roller.
  • Page 8   ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 行式热敏打印 Direct thermal line printing 纸宽 Paper width 57mm 打印宽度 Print width 48mm 分辨率 resolution ration 8 dots/mm (384 dots/line) 打印头寿命 life of printing head 6,000,000 character lines 打印速度 Printing speed 30mm/sec(when the utilization rate is 25%) 字符大小...
