- Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd ...

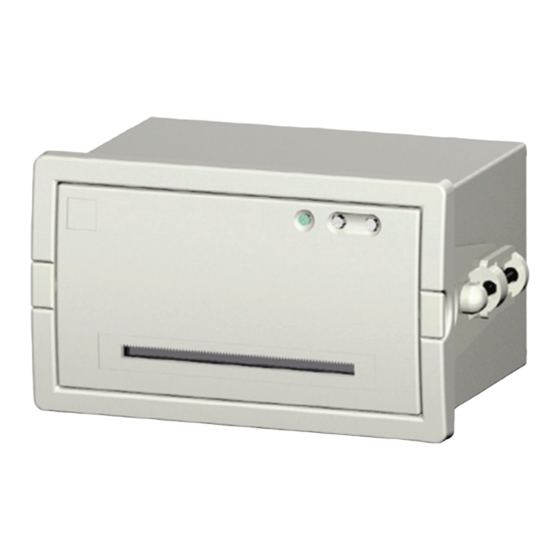

- Page 2 快速安装手册 哦、 ●打印机各部件一览 Printer Parts Names 1.LF 键 LF Button 6.纸仓拉手 Handle 11.数据接口 Interface Connector 2.SEL 键 SEL Button 7.面板卡口 Clasp 12.压线板 Tension Disc 3.指示灯 Indicator Light 8.面板盖 Panel Cover 13.螺丝 Screw 4.纸仓拉手 Handle 9.纸仓 Paper Case 14.固定架 Holder 5.出纸口...
- Page 3 快速安装手册 ●尺寸 Size WH-A5 型尺寸 Product Size: 外形尺寸：Outline Dimension： 112.6mm×66.6mm×73mm 开口尺寸：Installation Dimension： 103mm（W）×57mm（H） 嵌入深度：Inlaid Deepness： 65mm http://www.whkj.com.cn 010‐51655555 ...
- Page 4 快速安装手册 ●安装 Installation 安装方法： 请把打印机嵌入部分插入仪器或设备面板的安装孔内，如图中配件卡子和固定架组合，接 着把组合后的配件卡入壳体中，并拧紧螺丝，左右对称各一套，安装方法相同。 安装的面板厚度为 0.5～8mm 厚的金属板或塑料板；厚薄不会影响打印机安装的牢固性。 开口尺寸：103mm+0.5×57mm+0.5 Installation Method Insert the built-in part of printer into the installing orifice of instrument or equipment. As the picture show, fit the plastic fasteners together, then fix the assembly onto the printer and tighten the screws on both sides.
- Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. http://www.whkj.com.cn 010‐51655555 ...
- Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤： 1.如图 1 从机壳中抽出打印机。 2.将新纸卷套在纸轴上，并装入打印机纸仓内。纸轴两边固定在卡槽内。拉出一截（超出 一点撕纸牙齿） ，把纸放整齐。 3.接通打印机的电源，按 SEL 键使 SEL 指示灯灭，并将打印纸送到进纸口，然后按 LF 键 使。机头转动。这时看一下纸是否走歪，再按一下 SEL 键，或关上电源。 4.将打印机推入复位即可。热敏打印机无此步骤。打印纸的方向有药液一面（光滑面）向。 上（如图 2） 。 Replacing the Paper Roll 1. As the Fig.1 show, draw out the printer. 2. Put the new paper on the paper roller holder, and install the roller firmly on the printer.
- Page 7 快速安装手册 ●色带 Ribbon 色带更换： 1．从机壳中抽出打印机。扣住图中所示箭头处，翻开前面板。 2．从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的 右端,取下色带盒。 3．换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起,不 要放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直 到色带盒的右端落到底后再放下色带盒的左端。 4．合上打印机的前面板，并推入复位。 Ribbon Installation 1. Draw out the printer, fasten the position which the arrow point to as shown in Fig.1 and open the front cover of printer. 2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon cassette, then lift up the right end, and then take down the ribbon cassette.
