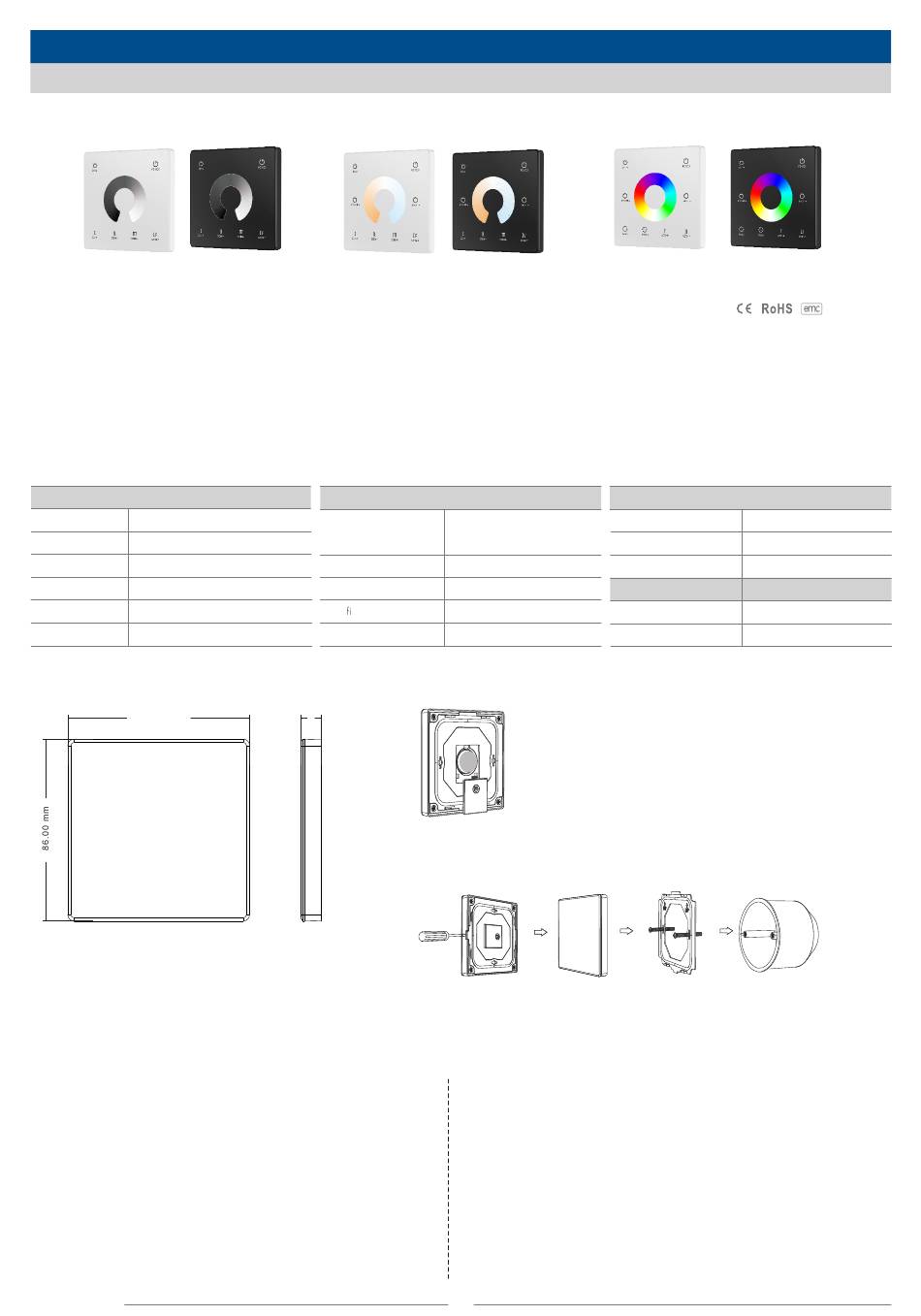

SKYDANCE TW1 Quick Start Manual

Wall Mounted Touch Panel
Model No.: TW1,
TW2,
TW4

1-4 color/Glass touch panel/Touch color wheel/Wireless remote 30m distance/CR2032 battery
TW1
1 Zone Dimming
Features
● Touch panel 1-4 color RF remote.
● Each Touch panel can remote control multiple
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle .
● Touch keys with blue/red LED indicator.
● Free installation, no wiring, removable.
● CR2032 battery powered.
Technical Parameters
Input and Output
Output signal RF(2.4GHz)
Working voltage 3VDC(CR2032)
Working current

<8mA
Standby current <16μA
Standby time 1 year
Remote distance 30m (Barrier-free space)
Mechanical Structures and Installations
86.00 mm
To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.
Match with RF LED controller (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off key on the touch panel.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match.
The LED indicator fast flash a few times means all matched remotes
were deleted.
User Manual Ver 1.0.0
TW2
1 Zone CCT
RF 2.4G LED controllers.
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
Warranty
9.50 mm
Installation diagram:
1
Environment
Operation temperature
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Case temperature (Max.)
EN 62368-1:2020+A11:2020
IP rating
ETSI EN 300 328 V2.2.2
Package
CE,EMC,LVD,RED
Size
Gross weight
5 years
Note: If the LED indicator is not on when press key,
it is due to dead battery or bad contact caused by
multiple plugging, please replace the battery,
or raise the battery shrapnel with a screwdriver
Touch panel
Uninstall
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the touch panel.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.
TW4
1 Zone RGB/RGBW
LVD RED
O O
Ta: -30 C ~ +55 C
O
Ta: +65 C
IP20
L100x W92 x H16.5mm
0.137kg
Baseplate
Base
