Wall Mounted Touch Panel
T11(IT)
● Touch panel 4 zone 1-4 color DMX512 master, can also be used as 4 zone 1-4 color RF remote.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When used as RF remote, each zone can remote control multiple
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color wheel.
● Touch keys with chord tones and LED indicator.
● White & Black glass panel available.
Technical Parameters
Model No.
T11(IT)
Light type
Single color
Output DMX channel number
Safety and EMC
EN 55015
EN IEC 61547:2023
ETSI EN 301 489-1
EMC standard
ETSI EN 301 489-3
ETSI EN 301 489-17
EN 55032
EN 55035
Safety standard
EN 60730-1
EN 62479:2010
EN 50663:2017
Radio Equipment
ETSI EN 300 440
ETSI EN 300 328
Certification
CE RED
Mechanical Structures and Installations
DMX output +
DMX output -
DMX signal GND

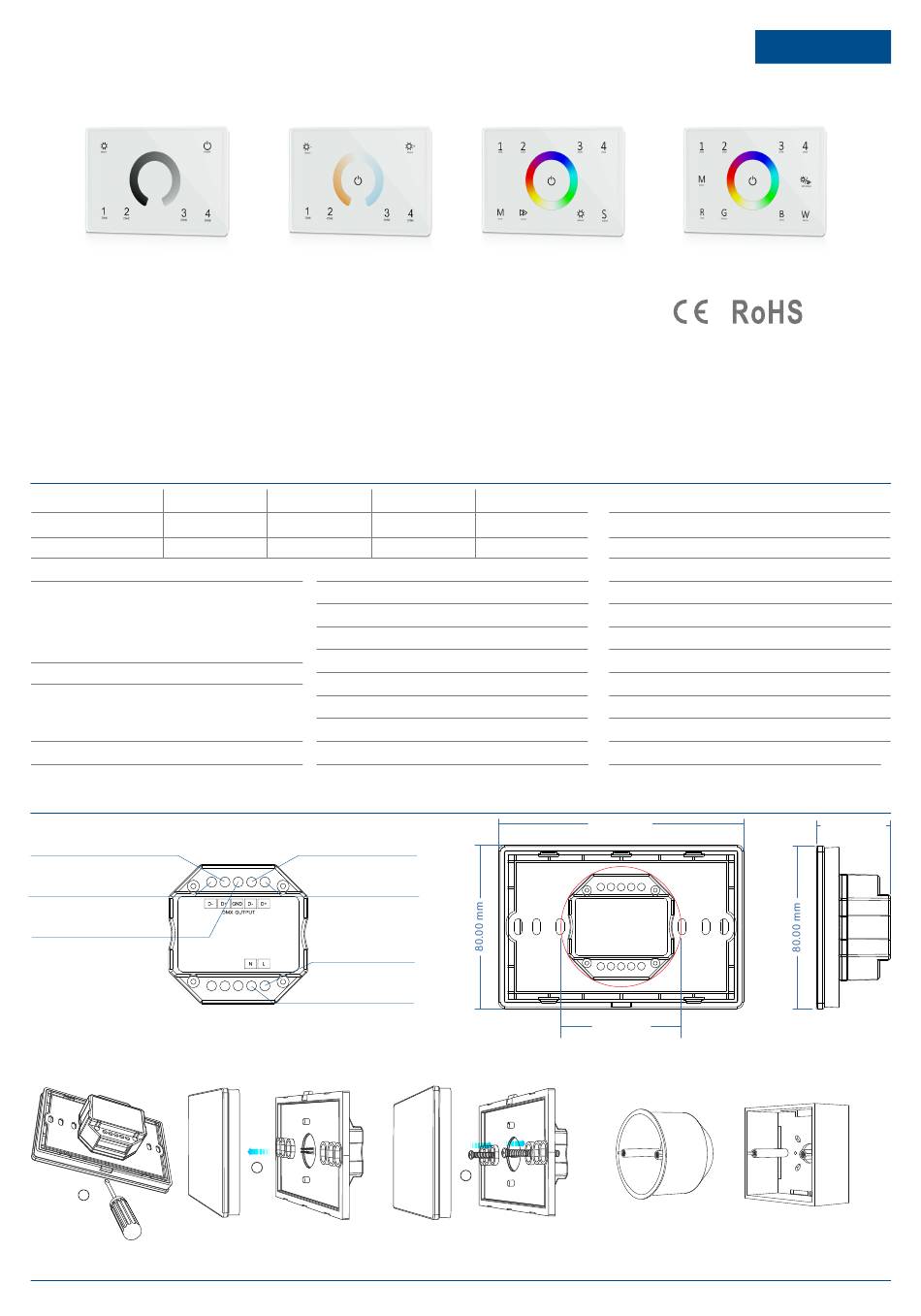

Installation diagram:
1
User Manual Ver 1.1.0
2024.10
T12(IT)
T12(IT)
Dual color
4
8
Environment
Operation temperature
Case temperature (Max.)
IP rating
Package
Size
Gross weight
DMX output -
DMX output +
AC input L
INPUT
100-240VAC
AC input N
2
T13(IT)
Skydance's 2.4G LED controllers
.
T13(IT)
T14(IT)
RGB
RGBW
12
16
Ta: -30
O
C ~ +55
O
C
O
Tc: +65
C
IP20
L135 x W100 x H58mm
0.246kg
3
T14(IT)
Input and Output
Input voltage
100-240VAC
Input current
Max 0.1A
DMX512, RF 2.4GHz
Output signal
Dimming data
Touch key + RF 2.4GHz
Input signal
10m(Barrier-free space)
RF Control distance
Dimming level
256 levels
Dimming range
0 -100%
Warranty
Warranty
5 years
120.00 mm
59.00 mm
Typical base as below:
European style
DMX512
RED
37.00 mm
86 size
Page 1
