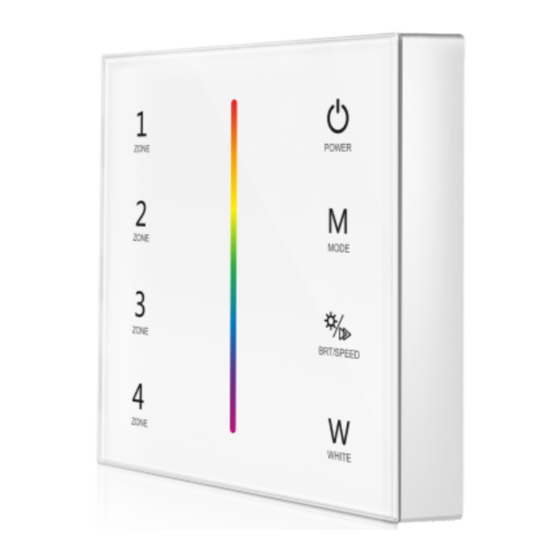

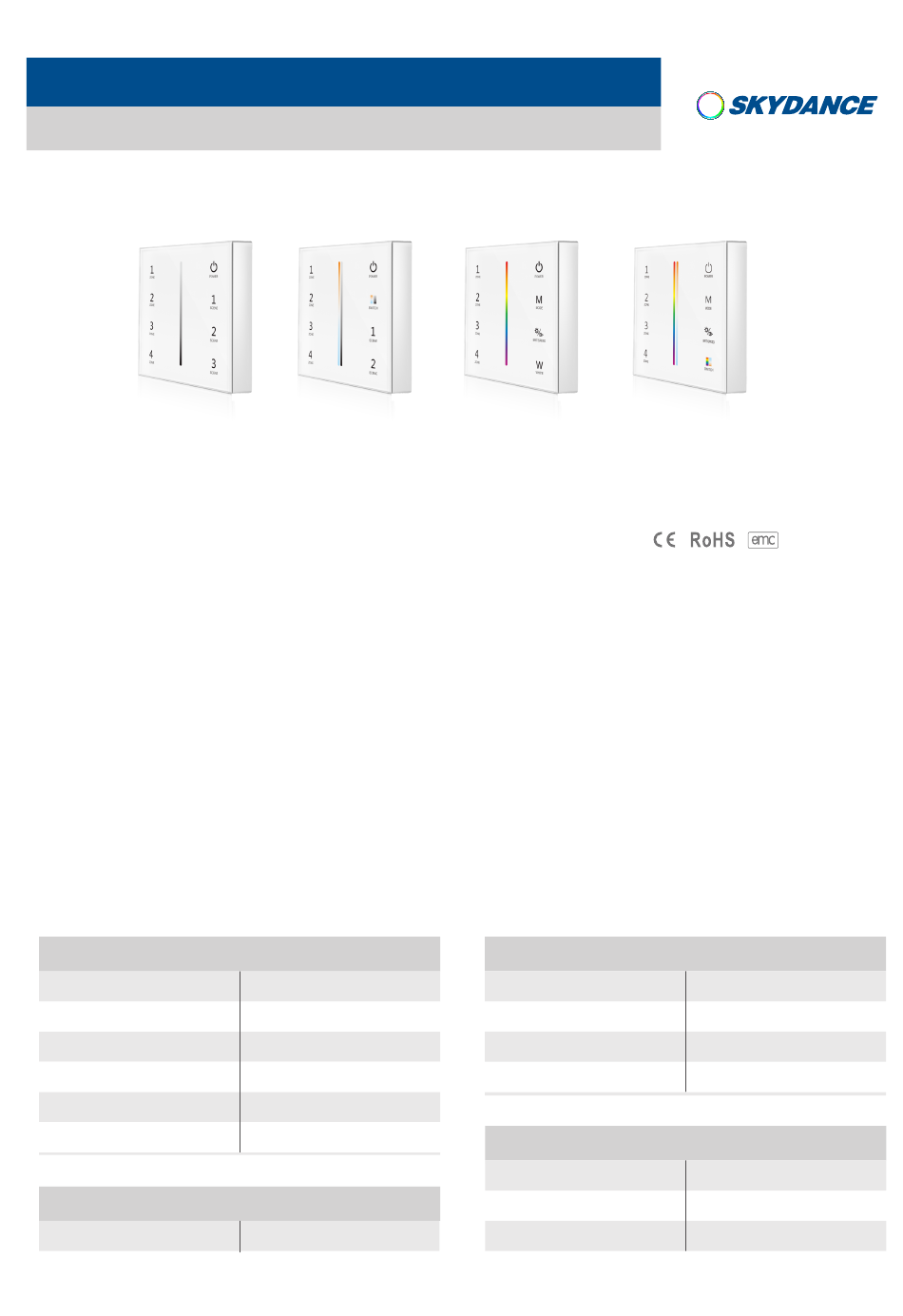

Wall Mounted Touch Panel
Model No.: T21,T22,T24,T25
4 Zone/1-5 color/Glass touch panel/Color slide/Wireless remote 30m distance/AAA x 2 battery
T21
4 Zone dimming
Features
● Touch panel 4 zone 1-5 color RF remote.
● Each zone can remote control multiple receivers, including Skydance's 2.4G LED controller, dimming driver or smart lamp.
● Ultra sensitive high strength glass touch panel with touch color slide in the middle.
● Smooth and accurate color adjustment by touching the color slide.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered.
b
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Warranty
Warranty
User Manual Ver 1.0.2
T22
4 Zone CCT
4 Zone RGB/RGBW
RF 2.4GHz
(
)
3VDC AAA x 2
(
)
＜20mA
＜20μA
1 year
30m
5 years
www.iskydance.com
T24
T25
4 Zone RGB+CCT
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE T21
Summary of Contents for SKYDANCE T21
- Page 1 ● Touch panel 4 zone 1-5 color RF remote. ● Each zone can remote control multiple receivers, including Skydance’s 2.4G LED controller, dimming driver or smart lamp. ● Ultra sensitive high strength glass touch panel with touch color slide in the middle.
- Page 2 T21,T22,T24,T25 Wall Mounted Touch Panel Mechanical Structures and Installations Installation rack 20.50 mm 86.00 mm Batter y compartments 61.00 mm Installation diagram: Typical base as below: Touch panel Baseplate European style Base 86 size Uninstall Match Remote Control (two match ways) End user can choose the suitable match/delete ways.
- Page 3 T21,T22,T24,T25 Wall Mounted Touch Panel Key function T21 Single color panel Turn on/off all zone light. Power Brightness slide. Zone Power Short press recall scene. Long press 2s to save the current state into 1/2/3. Zone Scene Scene Scene Scene...
- Page 4 T21,T22,T24,T25 Wall Mounted Touch Panel T25 RGB+CCT panel Turn on/off all zone light. Power RGB color / Color temperature slide. ZONE POWER Switch between RGB color / Color temperature slide. SWITCH ZONE MODE Short press play 10 built-in mode, long press run mode-cycle.
