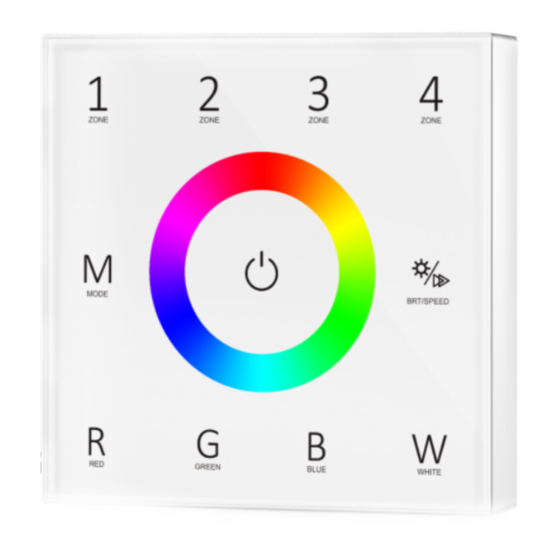

Wall Mounted Touch Panel
Model No.: T21-1,T22-1,T24-1
4 Zone/1-4 color/Glass touch panel/Color wheel/Wireless remote 30m distance/AAA x 2 battery
T21-1
4 Zone dimming
Features
● Touch panel 4 zone 1-4 color RF remote.
● Each zone can remote control multiple Skydance's 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color slide.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 attery powered.
b
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Warranty
Warranty
User Manual Ver 1.0.2
2018.09.29
T22-1
4 Zone CCT
RF 2.4GHz
(
)
3VDC AAA x 2
(
)
＜20mA
＜20μA
1 year
30m
5 years
www.iskydance.com
4 Zone RGB/RGBW
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
T24-1
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
Page 1
Advertisement
Related Manuals for SKYDANCE T21-1
Summary of Contents for SKYDANCE T21-1
- Page 1 Features ● Touch panel 4 zone 1-4 color RF remote. ● Each zone can remote control multiple Skydance’s 2.4G LED controllers. ● Ultra sensitive high strength glass touch panel with touch color wheel in the middle. ● Smooth and accurate color adjustment by touching the color slide.
- Page 2 T21-1,T22-1,T24-1 Wall Mounted Touch Panel Mechanical Structures and Installations Installation rack 20.50 mm 86.00 mm Batter y compartments 61.00 mm Installation diagram: Typical base as below: Touch panel Baseplate European style Base 86 size Uninstall To fix the panel, two options are offered for selection: Option 1: fix it on the wall with two screws.
- Page 3 T21-1,T22-1,T24-1 Wall Mounted Touch Panel Key function T21-1 Single color panel Turn on/off all zone light. POWER BRIGHT POWER Brightness,10 levels. BRIGHT Brightness wheel. ZONE ZONE ZONE ZONE Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light.
- Page 4 T21-1,T22-1,T24-1 Wall Mounted Touch Panel Safety information 1. Read all instructions carefully before you begin this installation. 2. When installing batter y, pay attention to the batter y positive and negative polarity. A long time without the remote control, remove the batter y.
