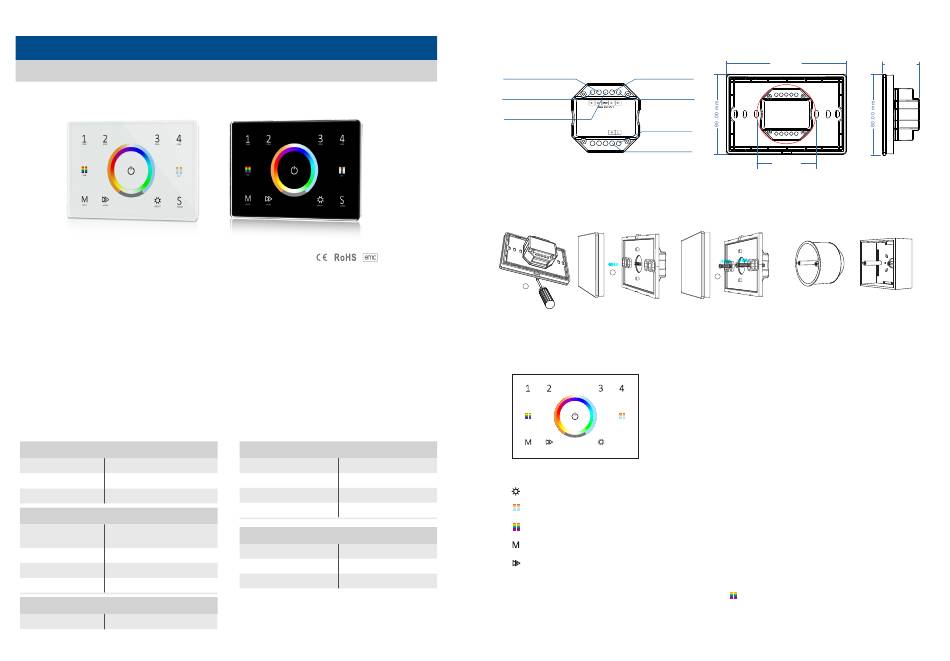

SKYDANCE T15 IT Manual

Wall Mounted Touch Panel
Model No.: T15(IT)
4 Zone/1-5 color in one/Glass touch panel/Color wheel/AC input/DMX 512 and RF 2.4G signal output

Features

● Touch panel 4 zone 1-5 color universal DMX512 master, can also be used as 4 zone 1-5 color universal RF remote.
● Each zone can be set as single color, dual color(WW/CW), RGB, RGBW or RGB+CCT light type.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When used as RF remote, each zone can remote control multiple Skydance's 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color wheel.
● Touch keys with chord tones and LED indicator.
● White & Black glass panel available.

Technical Parameters

Input and Output

Input voltage 100-240VAC
Input current
Max 0.1A
Output signal DMX512, RF 2.4GHz

Safety and EMC

ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certification

Warranty

5 years
Warranty
User Manual Ver 1.0.8
LVD RED
Dimming data
Input signal
Touch key + RF 2.4GHz
( )
RF Control distance 10m Barrier-free space
Dimming level
256 levels
Dimming range
0 - 100%
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +65 O
C
IP rating
IP20

Mechanical Structures and Installations

DMX output + DMX output -
DMX output -
DMX output +
DMX signal GND
AC input L
INPUT
100-240VAC
AC input N
Installation diagram:
2
1

Key function

Zone light type setting

ZONE ZONE ZONE ZONE Each zone can match single color, dual color(WW/CW), RGB, RGBW,
or RGB+CCT(WW/CW) controller or lamp.
RGB CCT
Touch power key to turn on light, turn off light,
then immediately long press power key 5 seconds, enter zone light setting:
S
MODE SPEED BRIGHT SCENE
long press Zone 1/2/3/4 key 2 seconds, select current zone you want to change,
then long press below five key 2 seconds to change current zone light type.
: Long press 2 seconds, set current zone as single color type.
BRIGHT
: Long press 2 seconds, set current zone as dual color type.
CCT
: Long press 2 seconds, set current zone as RGB color type.
RGB
: Long press 2 seconds, set current zone as RGBW type.
MODE
: Long press 2 seconds, set current zone as RGB+CCT type.
SPEED
For example, If you want to change zone 1 light type as RGB type,
please long press Zone 1 key 2 seconds firstly, then long press
When in zone light type setting state, all above long press key operation, the LED indicator will lighten red and blue.
Short press power key or touch color wheel, or timeout 10s, quit zone light type setting.
T15(IT) Wall Mounted Touch Panel
120.00 mm 37.00 mm
59.00 mm
Typical base as below:
3
European style
86 size
2 seconds will set Zone 1 as RGB type.
RGB
