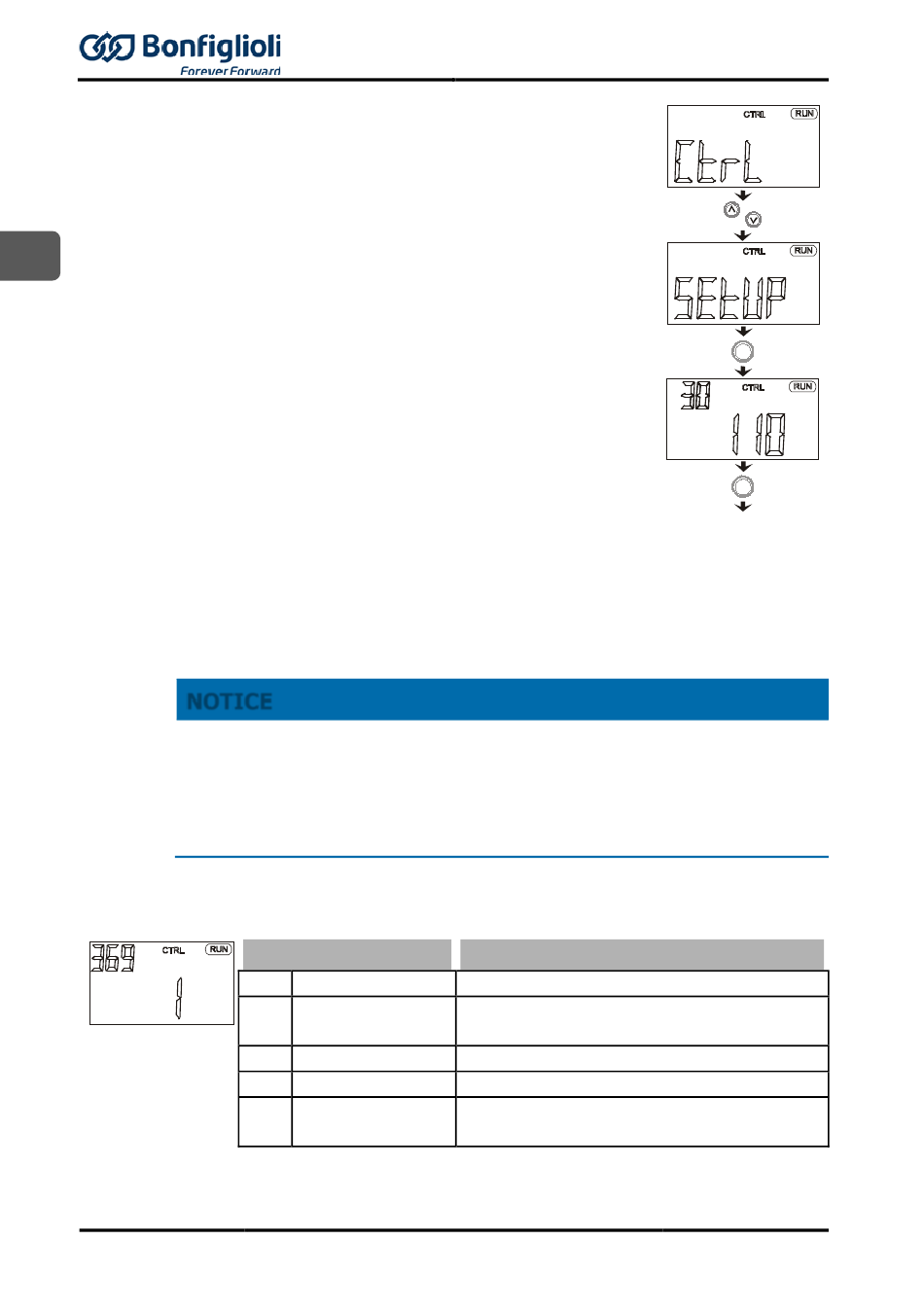

• Use the ENT key to switch to the CTRL sub-menu.
In the CTRL sub-menu, select the menu item "SetUP"
•
and confirm by pressing the ENT key.
• Use the ENT button to select parameter Configuration
30.
Use the arrow keys to enter the number 110 or 410.
•
GB
110: sensor-less control acc. to U/f characteristic
410: sensor-less, field-oriented control
Press the ENT key to confirm this message and in
•
order to continue the commissioning procedure.
If the setup was changed, "SEtUP" will be displayed again.
Press the ENT key to confirm this message and in order to continue the
•
commissioning procedure.
• After initialization, confirm the selected configuration by pressing the ENT
key.
NOTICE
Device damage possible
If the motor type is not entered correctly, the drive may be
damaged.
•
Select the connected machine via parameter Motor type 369.
•
Enter the motor data indicated on the rating plate in the following
•
parameters.
80
Observe the correct motor type.
Operation Mode
0 - Unknown
1 - Asynchronous
2 - Synchronous
3 - Reluctance
10 - Transformer
