4.3.2 External 24 V power supply X210A.1 & X210A.2
NOTICE
Device damage possible
The digital inputs and the DC 24 V terminal of the electronic
control equipment can withstand external voltage up to DC 30 V.
Higher voltages may destroy the unit.
Avoid higher voltage levels.
•
• Use suitable external power supply units with a maximum
output current of DC 30 V or use appropriate fuses to protect
the unit.
The bidirectional control terminals X210A.1/ X210A.2 can be used as a voltage
output or voltage input. By connecting an external power supply of DC
24 V ±10% to terminals X210A.1/X210A.2, the function of inputs and outputs
as well as the communication can be parameterized and maintained, even when
mains voltage is off.
Requirements to be met by external power supply
Input voltage range
Rated input current
Peak inrush current
External fuse
Safety

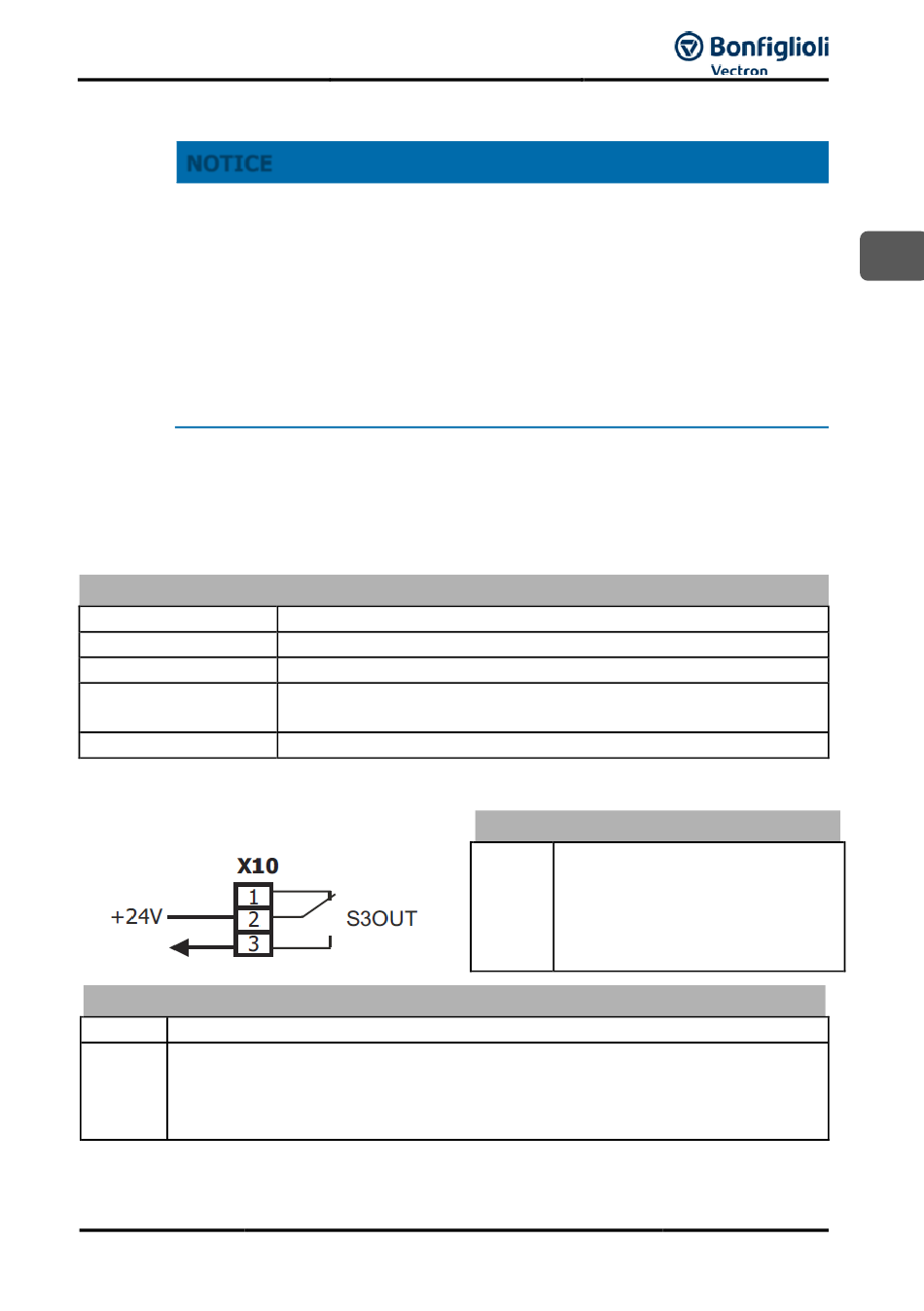

4.3.3 Control terminal X10
Term.
1 ... 3 Relay output, floating change-over contact, response time approx. 40 ms,
maximum contact load:
make contact: AC 5 A / 240 V, DC 5 A (ohmic) / 24 V
break contact:
12/20
DC 24 V ±10%
Max. 1.1 A
Typically: < 25 A
Via standard fuse elements for rated current, characteristic:
slow
Safety extra low voltage (SELV) according to EN 61800-5-1
Control terminal X10
Description
AC 3 A / 240 V, DC 1 A (ohmic) / 24 V
Quick Start Guide ACT
Relay output X10
S3OUT Parameterizable relay output
