Install the Access Point on a Wall or a Solid Surface
Using the AH-ACC-BKT-AX-TB Bracket
Procedure
1. Place the AH-ACC-BKT-AX-TB bracket on a wall or a solid surface, and mark and drill two mounting
holes.

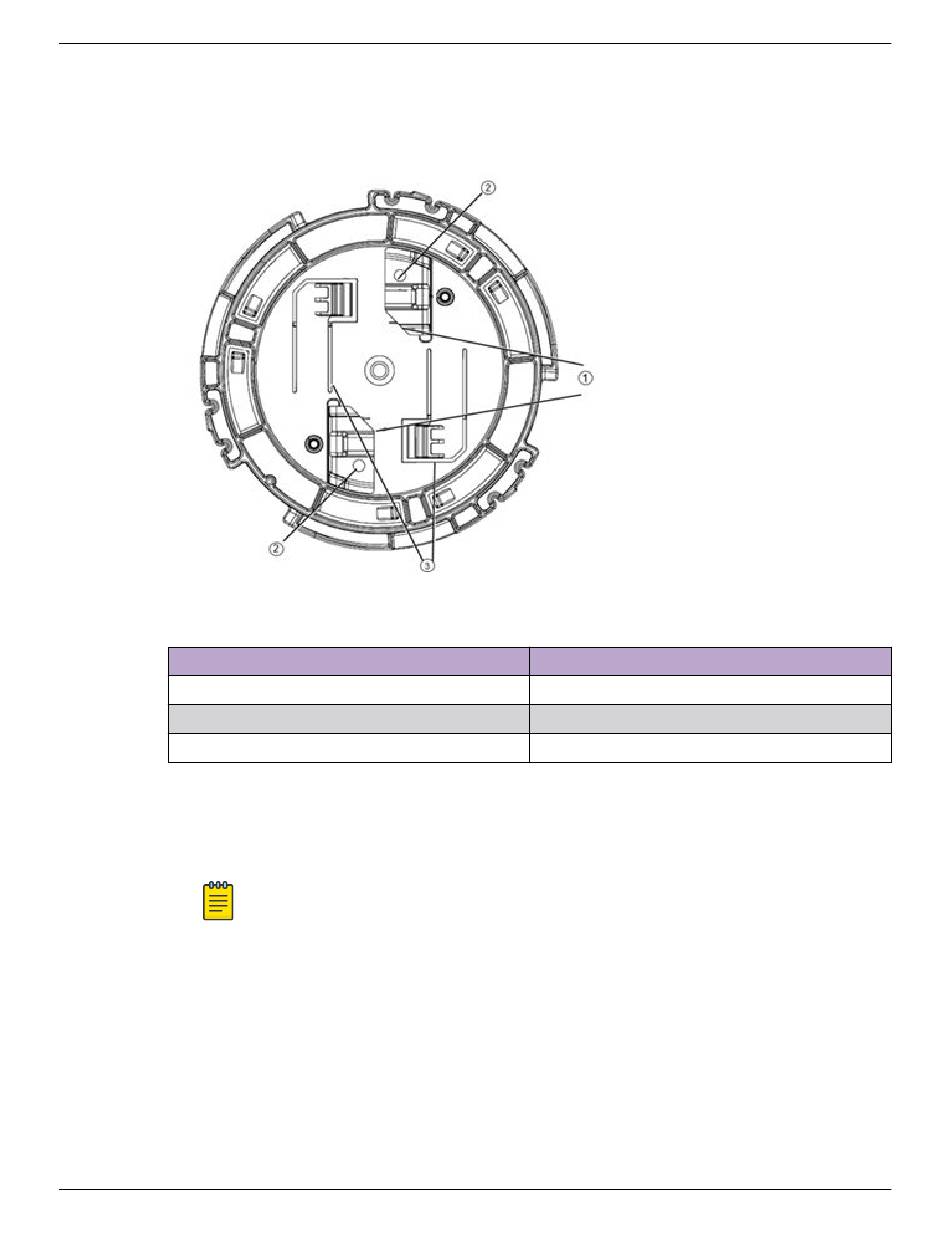

Figure 4: AH-ACC-BKT-AX-TB bracket with wall mounting holes
Callout
1
2
3
2. Attach the bracket to the wall using two screws.
Use screw in anchors, if needed.
3. Attach the Ethernet port cap to the access point Ethernet port.
4. Align the red dot on the back of the access point against the red dot on the bracket.
5. Press and rotate the access point 1/8th turn clockwise until it clicks into place on the bracket.
6. Attach the Cat6 RJ45 cable to the Eth0 or Eth1 port.
7. Place the cable cover over the Ethernet cable.
16 ExtremeWireless™ Indoor Access Point AP4000
Note
The bracket has a center circular tip that fits into the circular dip on the back of the access
point.
Description
Metal angled cuts
Wall mount holes
White tab
Install the Access Point
