- Page 1 ExtremeWireless™ Indoor Access Point AP4000 Installation Guide 9037237-01 Rev AA January 2022...
- Page 2 Copyright © 2022 Extreme Networks, Inc. All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made.
-
Page 3: Table Of Contents
Table of Contents Preface...........................4 Text Conventions................................4 Documentation and Training..........................5 Help and Support................................. 6 Subscribe to Product Announcements.....................6 Send Feedback................................6 AP4000 Access Point Overview..................8 AP4000 Features and Specifications........................ 8 Features..................................8 Temperature Specifications.......................... 10 Power Specifications............................10 Power Profile.................................10 Status LED Activity Description........................... 11 Install the Access Point......................12 Access Point Box Contents............................ -
Page 4: Preface
Preface Read the following topics to learn about: • The meanings of text formats used in this document. • Where you can find additional information and help. • How to reach us with questions and comments. Text Conventions Unless otherwise noted, information in this document applies to all supported environments for the products in question. -
Page 5: Documentation And Training
Extreme Networks products Extreme Optics Compatibility Other resources such as white papers, data sheets, and case studies Extreme Networks offers product training courses, both online and in person, as well as specialized certifications. For details, visit www.extremenetworks.com/education/. ExtremeWireless™ Indoor Access Point AP4000... -
Page 6: Help And Support
The Hub A forum for Extreme Networks customers to connect with one another, answer questions, and share ideas and feedback. This community is monitored by Extreme Networks employees, but is not intended to replace specific guidance from GTAC. - Page 7 Preface Send Feedback • Improvements that would help you find relevant information. • Broken links or usability issues. To send feedback, do either of the following: • Access the feedback form at https://www.extremenetworks.com/documentation-feedback/. • Email us at documentation@extremenetworks.com. Provide the publication title, part number, and as much detail as possible, including the topic heading and page number if applicable, as well as your suggestions for improvement.
-
Page 8: Ap4000 Access Point Overview

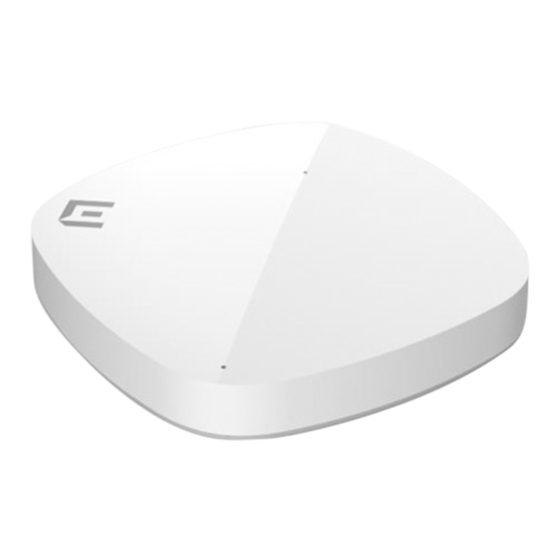

AP4000 Access Point Overview AP4000 Features and Specifications on page 8 Power Profile on page 10 Status LED Activity Description on page 11 The AP4000 access point is a high-performance 802.11ax Wi-Fi 6E access point. Designed for high- density indoor environments, it can operate in 6 GHz, 5 GHz, and 2.4 GHz bands. The access point supports IEEE 802.11ax Orthogonal Frequency-Division Multiple Access (OFDMA) multi-user access. - Page 9 AP4000 Access Point Overview Features Figure 1: AP4000 hardware components Callout Description Eth1 Eth0/PoE+ Console port USB port Reset button Security Kensington lock The access point has the following features: • One multicolor LED status light For LED activity description, see Status LED Activity Description on page 11.
-
Page 10: Temperature Specifications
Temperature Specifications AP4000 Access Point Overview Through the console port, you can make a serial connection between your management system and the access point. Note When you connect to the device using the micro USB Console port, the management station from which you connect to the device must have a VT100 emulation program, such as Tera Term Pro (a free terminal emulator) or Hilgraeve HyperTerminal (provided with Windows operating systems from XP forward). -
Page 11: Status Led Activity Description
AP4000 Access Point Overview Status LED Activity Description Status LED Activity Description The AP4000 access point has one status light on top of the chassis. The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. -
Page 12: Install The Access Point
1. Verify the access point contents. 2. Visually inspect the access point, the mounting bracket, and any other optional accessories that you have ordered for physical damage. If there is any damage, contact Extreme Networks Support. 3. Read and review the safety guidelines. -
Page 13: Install The Access Point On A Standard Ceiling
Install the Access Point Install the Access Point on a Standard Ceiling • One mounting bracket for 15/16 in. T-bar ceiling installation (part number AH-ACC-BKT-AX-TB) Note The mounting bracket includes wall mounting hardware; two screws and two anchors for wall installation. •... - Page 14 Install the Access Point on a Standard Ceiling Install the Access Point 2. Align the bracket on the ceiling rail in such a way that the bracket metal angled cuts are parallel to the sides of the ceiling rail. Figure 2: AH-ACC-BKT-AX-TB bracket Callout Description Metal angled cuts...
-
Page 15: Install The Access Point On A Wall Or A Solid Surface Using The Ah-Acc-Bkt-Ax-Tb Bracket
Install the Access Point on a Wall or a Solid Surface Install the Access Point Using the AH-ACC-BKT-AX-TB Bracket 6. Press and rotate the access point 1/8th turn clockwise until it clicks into place on the bracket. Figure 3: AP4000 standard ceiling install 7. - Page 16 Install the Access Point on a Wall or a Solid Surface Using the AH-ACC-BKT-AX-TB Bracket Install the Access Point Procedure 1. Place the AH-ACC-BKT-AX-TB bracket on a wall or a solid surface, and mark and drill two mounting holes. Figure 4: AH-ACC-BKT-AX-TB bracket with wall mounting holes Callout Description Metal angled cuts...
-
Page 17: Non-Standard Ceiling Grid Or Wall Installation
Install the Access Point Non-Standard Ceiling Grid or Wall Installation Non-Standard Ceiling Grid or Wall Installation Note For all non-standard ceiling grid installation or wall installation instructions, refer to the Wi-Fi 6 802.11ax Access Points Accessories Guide. The access point can be installed on a non-standard ceiling grid using the following accessories: Order part number Description AH-ACC-BKT-AX-TB... - Page 18 Non-Standard Ceiling Grid or Wall Installation Install the Access Point Order part number Description AH-ACC-BKT-AX-SL Mounting bracket for ceiling grids with a bottom opening of 1/8 in. to 1/4 in. wide (Armstrong ceiling model type Silhouette) ACC-BKT-AX-JB Junction box or wall mounting for indoor access points ExtremeWireless™...
- Page 19 Install the Access Point Non-Standard Ceiling Grid or Wall Installation Order part number Description ACC-BKT-AX-BEAM Beam mounting for indoor access points AH-ACC-BKT-AX-WL Mounting bracket for direct-to-wall installations. Provides a gap from the wall that is about ¼ in. AH-ACC-BKT-916-KIT 9/16 in. ceiling mount brackets for non-flat and protruded ceiling tiles.
- Page 20 Non-Standard Ceiling Grid or Wall Installation Install the Access Point Order part number Description ACC-BKT-TB-NF Adapter bracket for use with AH-ACC-BKT-TB with 15/16 in. wide T-bars on non-flat or protruded ceiling tiles ACC-BKT-AX-WNGADAPT Adapter bracket for use with cloud access point that has an existing WiNG mounting plate (#37201) Figure 5: ACC-BKT-AX-WNGADAPT...
-
Page 21: Lock The Access Point After Installation
Install the Access Point Lock the Access Point after Installation Order part number Description Figure 6: WiNG metal bracket (#37201) Important The default bracket for wall installation is the ACC-BKT-AX-TB bracket. Note The AH-ACC-BKT-AX-WL bracket is generally for users who already have the -WL brackets. Related Topics https://documentation.extremenetworks.com/wireless/Accessories_Guide Lock the Access Point after Installation... -
Page 22: Internal Antenna Information
Internal Antenna Information The access point has internal antennas: • 2 dual-band 2.4/5G antennas • 2 6G band antennas • 2 scanning 2.4/5G/6G antennas • 1 BLE antenna • 1 UWB antenna (for AP4000U only) ExtremeWireless™ Indoor Access Point AP4000... -
Page 23: Regulatory And Compliance Information
Regulatory and Compliance Information Safety Guidelines on page 23 Federal Communications Commission (FCC) Notice on page 23 Japan Indoor Use Statement on page 24 Japan Voluntary Control Council for Interference (VCCI) - Class B on page 24 European Union (EU) Radiation Warning Statement on page 24 Brazil Agência Nacional De Telecomunicações (Anatel) Statement on page 25... -
Page 24: Japan Indoor Use Statement
Japan Indoor Use Statement Regulatory and Compliance Information harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. -
Page 25: Brazil Agência Nacional De Telecomunicações (Anatel) Statement
6489.6-7987.2MHz: -41.58 dBm/RBW (for AP4000U only) The device is restricted to indoor use only when operating in the 5925 to 6425 MHz frequency range. Hereby, Extreme Networks declares that the radio equipment AP4000 is in compliance with Radio Equipment Regulations 2017. -
Page 26: Industry Canada Statement
Industry Canada Statement Regulatory and Compliance Information Extreme Networks UK Address Extreme Networks, UK Ltd. 250 Longwater Avenue Green Park 1st Floor Reading, UK Industry Canada Statement Industry Canada indoor warning Warning For indoor use only. Pour une utilisation en intérieur uniquement. - Page 27 Regulatory and Compliance Information Industry Canada indoor warning Caution The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à...
-
Page 28: Taiwan Regulatory Statement
Taiwan Regulatory Statement Regulatory and Compliance Information Taiwan Regulatory Statement Hazardous Substances This product complies with the requirements of Directive 2011/65/EU and its amendments of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 29: European Waste Electrical And Electronic Equipment (Weee) Notice
European Waste Electrical and Electronic Equipment Regulatory and Compliance Information (WEEE) Notice European Waste Electrical and Electronic Equipment (WEEE) Notice In accordance with Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE): 1. The symbol above indicates that separate collection of electrical and electronic equipment is required. -
Page 30: Declaration Of Conformity In Languages Of The European Community
Regulatory and Compliance Information Declaration of Conformity in Languages of the European Community English Hereby, Extreme Networks declares that the radio equipment type (AP4000) is in compliance with Directive 2014/53/EU. For full text of the EU Declaration of Conformity, contact Extreme Regulatory Compliance at compliancerequest@extremenetworks.com... - Page 31 παρακαλούμε επικοινωνήστε με την ακραία κανονιστική συμμόρφωση στο compliancerequest@extremenetworks.com Icelandic Extreme Networks lysir her med yfir að thessi bunadur, Radio LAN device (AP4000), uppfyllir allar grunnkrofur, sem gerdar eru i R&TTE tilskipun ESB nr 2014/53/EU. Fyrir fullan texta í ESB yfirlýsingu um samræmi, vinsamlegast hafðu...
- Page 32 Declaration of Conformity in Languages of the European Community Regulatory and Compliance Information Portuguese Extreme Networks declara que este Radio LAN device (AP4000) está conforme com os requisitos essenciais e outras disposições da Directiva 2014/53/EU. Para o texto integral da declaração...
-
Page 33: Index
