OSP Home Furnishings QUINTON QTN1288 Assembly Instructions Manual

Writing desk

August, 2020

QTN1288

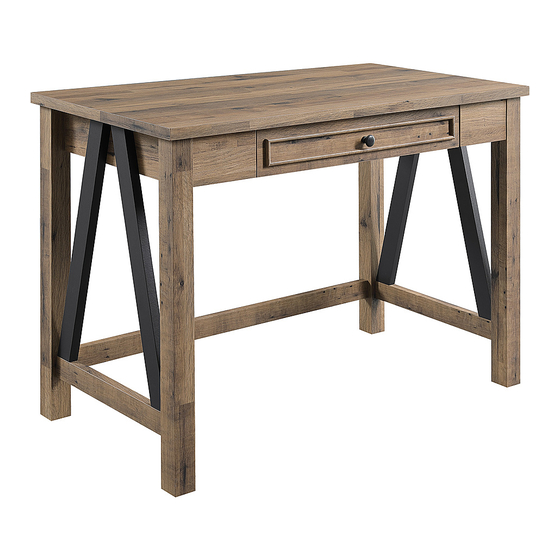

QUINTON WRITING DESK

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the QUINTON QTN1288 and is the answer not in the manual?

Page 1 August, 2020 QTN1288 QUINTON WRITING DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
Page 2 Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: (a) Supply compatible ®...
Page 3 PARTS (A) Top (1 PC) (B) Left Side Frame (1 PC) (C) Right Side Frame (1 PC) (D) Support (1 PC) HARDWARE LIST DRAWING DESCRIPTION QUANTITY Bolt 8 PCS + 1 EXTRA Cam Screw 4 PCS Cam Nut 4 PCS Flat Washer 8 PCS + 1 EXTRA Lock Washer...
Page 4 STEP 1 CAM LOCK INSTRUCTIONS 180° 180° FULLY TIGHTEN ALL CAM SCREWS (2) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 2 FULLY TIGHTEN ALL CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
Page 5 STEP 3 FULLY TIGHTEN ALL CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 4...
Page 6 STEP 5 FULLY TIGHTEN ALL BOLTS (1).
