Summary of Contents for VOLYA FERMER-5.0
- Page 1 Технический паспорт FERMER-5.0 honeycomb polycarbonate greenhouse design2011 any length multiple of 2.1. min length 4.2 м width 5.0 m Technical certificate p. 2-6 Assembling manual p. 7-26...
- Page 2 Please keep FRAME (BASE LENGTH 4.2 M) this technical certificate for further reference. 1 PACKAGE (arc elements) 90х410х3000 11,6 FERMER-5.0 2 PACKAGE (power arc straight elements) 90х75х2800 10,5 FERMER-5.0 Description...
- Page 3 Technical certificate Technical certificate DETAILED PARTS LIST «INSERT» DETAILED PARTS LIST “FRAME” (4.2 M) Table 4 Table 3 marking name quantity (pcs) length (m) marking name quantity (pcs) length (m) 1 PACKAGE INSERT 7 PACKAGE FERMER Ridge arc 1,76 13в Cleat 1,28 13вн...
- Page 4 Date of manufacture: polycarbonate sheets with a brush, metalized fabric or other abrasive materials. Manufacturer: VOLYA LLC, per. Severny, 8, Dubna, Moscow region, 141983, Russia. Do not use sulphur cartridges for disinfecting greenhouse against The manufacturer bears responsibility for quality of products in accordance with RF CC. The...
- Page 5 Manual Manual «FERMER» GREENHOUSE INSTALLATION MANUAL INSTALLATION SEQUENCE Introduction Stage Name page The general view of the frame is presented in fig. 1, with an anteroom - Fig. 1a End wall assembly 12-14 (the anteroom is purchased separately at the request of a buyer). The frame is Installation of runners on the end wall assembled from the shape numbered parts.

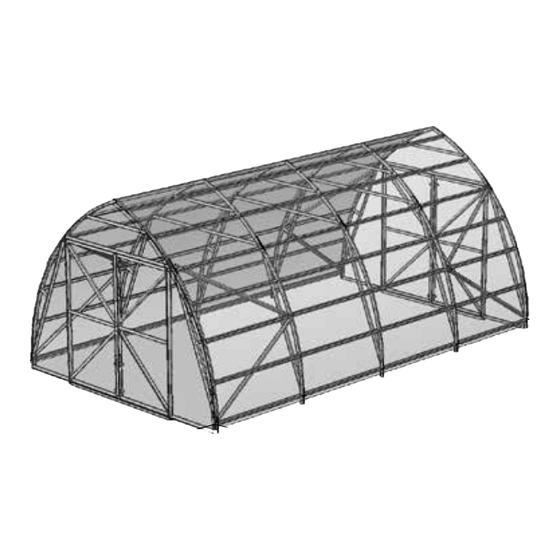

- Page 6 Manual Manual GENERAL VIEW OF THE GREENHOUSE FRAME WITH GENERAL VIEW OF THE GREENHOUSE FRAME WITH EXTENDING EXTENDING INSERTS INSERTS А Б В И А Г 2к Б К В Г Д Е укос 2кн 2к Ж Е Д Fig. 1 General view of the greenhouse with two inserts, total length is 8.4 m.
- Page 7 Manual Manual INSTALLATION SEQUENCE INSTALLATION SEQUENCE STAGE 1 А Г Ж screw М6х14 7м Assembly of the end washer 6 wall. Assembly is carried out according to the figure 1.1. Б Е Д П9 10ц В П11 Determine the places of installation А...
- Page 8 Manual Manual INSTALLATION SEQUENCE INSTALLATION SEQUENCE Fig. 1.8 STAGE 3 General view of the end Assembly of the power wall and location of the angles for fastening of Assembly of the power polycarbonate. arc is carried out in a horizontal plane similar to the assembly of the -places of end wall.
- Page 9 Manual Manual INSTALLATION SEQUENCE INSTALLATION SEQUENCE STAGE 6 STAGE 5 Fig. 5.1 End section installation Extension of the frame In the variant of length. installation of the greenhouse without a Assembled power arc (or Next power arc is joined other end wall, depending to the power arc that has foundation, marking on the needed length...
- Page 10 Manual Manual GATE ASSEMBLY GATE ASSEMBLY 14-в Г STAGE 9 А 12-в-л Gate assembly. 13-в Б 13-в В The gate is assembled in Е 14-в the same way. Joints are shown in the figures. 13-в 14-в Strips and other surface mounted components Д...
- Page 11 Manual Manual GATE ASSEMBLY CUTTING LIST OF COVERING OF AN END Fig. 10.3 Cutting list of covering for an end of the 1170 greenhouse 5.0 m wide. Fig. 9.1 Arrangement of angles for fastening of polycarbonate on the gate. 1330 STAGE 10 Installation of covering Install honeycomb polycarbonate with a specified side facing outwards...
- Page 12 Manual Manual FASTENING OF COVERING FASTENING OF COVERING washer 32х6,3 Fasten the pieces of Fig. 10.7 covering on the end to 2к, 2кн - places of fastening the angles with the use of of door seals. washers and self-tapping - places of fastening screws (fig.10.4).
- Page 13 Manual Manual FASTENING OF COVERING FASTENING OF COVERING - places of fastening of washers To cover the top of greenhouses 12000 x 21000 mm sheets are cut into pieces with observance of right angle of the cut line to the side edge of the sheet, fig.10.10. Reminders are used to cover the top of the end.
- Page 14 Manual FASTENING OF COVERING Connect the side joints of covering together with the use of a dismountable connecting shape (cover + base) 10.14. The base is fastened to the arc 4 and girder 20 with bolts. cover+base covering covering Fig. 10.14 Install lugs and handles on the door.
- Page 15 Технический паспорт MANUFACTURER: LLC «VOLYA», DUBNA, MOSCOW REGION. phone/fax: (496) 217-17-17, (495) 745-85-59 www.perchina.ru e-mail: info@perchina.ru THIS MANUAL CANNOT BE REPRODUCED IN ANY FORM, IN WHOLE OR IN PART, WIHOUT AN EXPRESS WRITTEN PERMISSION OF «VOLYA» COMPANY...
