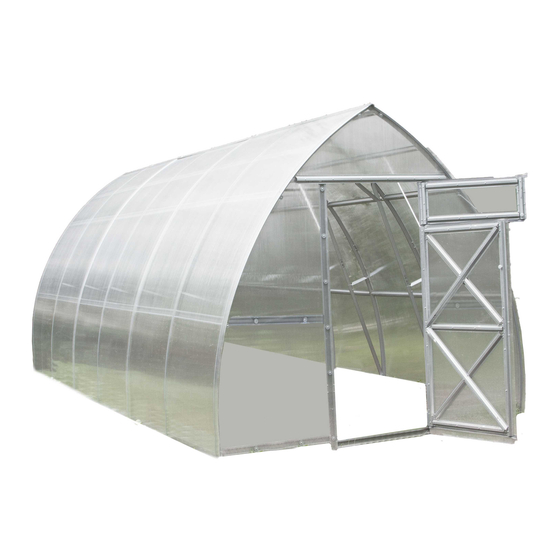

DACHNAYA-STRELKA
honeycomb polycarbonate greenhouse
width 2.6 m
model 2011
Technical certificate
Assembly manual
height 2.47 m
any length multiple 2 m
page 2-6
page 7-22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VOLYA DACHNAYA-STRELKA 2011
Summary of Contents for VOLYA DACHNAYA-STRELKA 2011
- Page 1 Quality management system (QMS) of LLC «Volya» is certified for compliance with standard of ISO 9001:2008 Certified by Russian Registry DACHNAYA-STRELKA honeycomb polycarbonate greenhouse model 2011 height 2.47 m width 2.6 m any length multiple 2 m Technical certificate page 2-6...
-
Page 2: Table Of Contents
Technical certificate Technical certificate Perform assembly and operation of the greenhouse in strict accordance DACHNAYA-STRELKA - detailed parts list Table 4 with the manual and operating rules stated in the technical certificate. № marking name quantity (pcs) Please keep this technical certificate for further reference. 1st package (straight elements) DESCRIPTION balk... -
Page 3: 1St Package (Straight Elements)
Technical certificate Technical certificate Insert detailed parts list Table 5 Operating rules 1st package balk 2nd package Before greenhouse, support assemble and install it in accordance When installing the greenhouse by stand with manual. third parties, buyer should supervise 4н bottom arc compliance of assembly with the In winter, coverage of greenhouse... - Page 4 Be careful! Elements have sharp angles. Guard against cutting. Work in safety gloves Manufacturer: Volya OJSC 8 Severnyi Pereulok, Dubna, Moscow Oblast 141983 Manufacturer is responsible for quality of products in accordance with RF Civil Code.
-
Page 5: Angle
Assembly manual Assembly manual General view of DACHNAYA-STRELKA greenhouse frame General view of DACHNAYA-STRELKA greenhouse frame Figure 1 Figure 2 General view of Vstavka 4В А insert DACHNAYA- STRELKA greenhouse. Each insert extends greenhouse length by 2 m. 4В 4Н Figure 3 4Н... -
Page 6: Ridge Cover Plate
Assembly manual Assembly manual Assembly sequence Assembling stages Perform the assembly close to location of the greenhouse. Assemble greenhouse in accordance with photographs of assembly stages Connect arcs 4н to and units represented in Fig. 5.12. The figures show assembly of greenhouse arcs 4в... - Page 7 Assembly manual Assembly manual Assembled door and end small window Assembly stages Assemble door end small window from А elements 12, 13, 14, 15 (Fig.12) Small window Е 4н 4н А А Figure 11 4в Door А 4н Install side braces 10 on each arc Figure 12 inside of greenhouse frame.
- Page 8 Assembly manual Assembly manual Cutting and fastening of coverage Крепление покрытия Install honeycomb polycarbonate strictly facing sun with a side having protective layer (by all means, clarify it under purchase or before installing). Protective layer usually is on the side with When cutting coverage be careful! inscriptions on transport film.
-
Page 9: Screw М5Х14
Assembly manual Assembly manual Раскрой и крепление покрытия торца Cutting and fastening of end coverage Cutting and fastening of end coverage door sealer Figure18 hinge marking Coverage pieces located above the door are cut adhesive tape at the place of installation from remaining pieces. 4в... - Page 10 Assembly manual Assembly manual Cutting and fastening of end coverage Cutting and fastening of end coverage Figure20 washer Install end cover plate 16 on end coverage and screw end coverage fasten it on element 5 through coverage (Fig. 20 and coverage М5х50 screw М5х10...
- Page 11 Assembly manual Assembly manual Cutting and fastening of end coverage Cutting and fastening of end coverage from polycarbonate Take polycarbonate to frame arcs’ edges, it all length of greenhouse top coverage, without violation sheet halves connected means that the frame over polycarbonate cut 6x2.1 m sheets...
- Page 12 Assembly manual Cutting and fastening of end coverage Fasten coverage over all bottom elements 2 in accordance with Fig. 28. Figure29 - washers In this position, use a door in closed state both Insert wire rotator pipe to bend linear part from inside and outside for door closing in free by hand into opposite...
- Page 13 Assembly manual Manufacturer: Volya LLC, Dubna, Moscow Oblast Phone/fax: 8 (495) 598-5-999 www.perchina.ru www.domflora.ru e-mail: info@perchina.ru This manual may not be reproduced in any form in full or partially without written permission of Volya Company...
