DACHNAY TRYOSHKA
Cellular polycarbonate greenhouse
2,1m
3,0m
Technical certificate
Assembling manual
(EURO)
any length
multipple to 2m
min 4m
page 2-9
page 10-30
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VOLYA Dachnaya Tryoshka
Summary of Contents for VOLYA Dachnaya Tryoshka
- Page 1 Quality management system (QMS) of LLC «Volya» is certified for compliance with standard of ISO 9001:2008 Certified by Russian Registry DACHNAY TRYOSHKA Cellular polycarbonate greenhouse (EURO) 2,1m 3,0m any length multipple to 2m min 4m Technical certificate page 2-9 Assembling manual...
- Page 2 3. Rinse with cold water and wipe with a soft cloth. Description Dachnaya Tryoshka greenhouse is designed for creation microclimate favorable for growing garden crops on cottage and household plots. Never use abrasives or highly alkaline cleaning compositions for cleaning polycarbonate Greenhouse might have variable length depending on customers’...
- Page 3 DETAILED PARTS LIST BASE DETAILED PARTS LIST BASE Box №1 Box №2 № marking length, m quantity № marking length, m quantity № marking length, m quantity № marking length, m quantity 9-2л L=1,4 4н L=1,62 L=0,96 12ф L=0,32 4в L=1,62 9-2п...
- Page 4 DETAILED PARTS LIST BASE DETAILED PARTS LIST EXTENSION Box №2 Box №1 № name quantity № name quantity № marking length, m quantity № name quantity loops for doors screw М4 х 8 top bandage L=0,92 windows tube bend spinner screw М4 х...

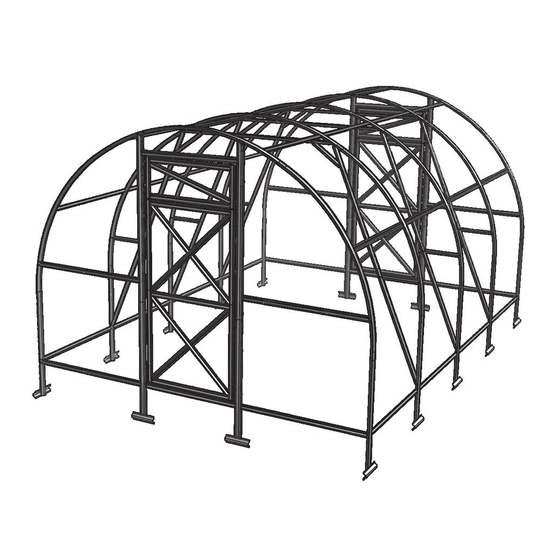

- Page 5 General view of the frame of Dachnaya Tryoshka Greenhouse General view of the insert for Dachnaya Tryoshka greenhouse General view of the frame of greenhouse, extendable inserts...
- Page 6 х4 х4 х4 х2 х4 х2 х2 х2 х4 х2 х4 х4 х2 х4...
- Page 7 bottom bandage х4 х4 screw М4х8 х10 х3 х3 х1 №3...
- Page 8 х2 х2 х2 х2 х2 х2 х4 х4 №11П х2 №10 х2 х4 х4 №2 №1 №11Л №11П №9-1 х2 х2 х2 №10 №8 №8 х2...
- Page 9 х6 х6 х6 х6 №17 х4 х4 х4 х2 х4 х2 х2 №17 х2 №20 №20...
- Page 10 х1 х1 х1 х1 х2 х4 х2 х4 №13ф N13ф N12ф N12ф N13ф х1 х2 х1 х4 х1 х2 х4 х1 N13д х1 х1 х1 х1 х1 х1 N12д N12д №13д N13д х7 х8 N12д N12д х7 х8 N13д х2 х4 х1 х1 х1 х1...
- Page 11 х17 х17 х17 х2 L1=L2 х2 х1 Cellular polycarbonate shall be installed strictly defined side out (towards the sun), which has a protective layer. The protective layer is usually at the side with the inscriptions on the transport film. The film on the other side of sheet is transparent.
- Page 12 х1 х7 х7 х1 х7 х2 х1 х2 х4 х4 х1 х1 х1 х1 х1 х1 х1 х15 х1 х15 х1 х15 х1 20..25мм х2 х2 х1 х2 х1 х1 х1 х1 х16 х16 х1 х16 х1...
- Page 13 Cellular polycarbonate shall be installed strictly defined side out (towards the sun), which has a protective layer. The protective layer is usually at the side with the inscriptions on the transport film. The film on the other side of sheet is transparent.
- Page 14 Do not fully tighten! х2 х2 х4 х4 х4 х1 х1 х1 х1 х2...
- Page 15 1000 х1 х2 х2...
- Page 16 FOR INSTALLING ON FUNDAMENT А 2988 1061 А А...
- Page 17 Manufacturer: Volya LLC, Dubna, Moscow Oblast Phone/fax: 8 (495) 598-5-999 www.perchina.ru e-mail: info@perchina.ru This manual may not be reproduced in any form in full or partially without written permission of Volya Company...
