CVPM02, CVPM05, CVFM04 User Guide
5. Connect the CVFM04 module to the remote CVPM02 module. See
CVPM02 Module.
6. Install the MegaRAID controller and the remote mounting board in the host computer. See
Controller and Remote Mount Board in the

Front View and Back View of the CVFM04 Module

The following figure shows the front view and the back view of the CVFM04 module. The front view is the side that you
can see when the unit is installed on a MegaRAID controller.
NOTE
Record your unit serial number in a safe location in case you need to contact Broadcom support.

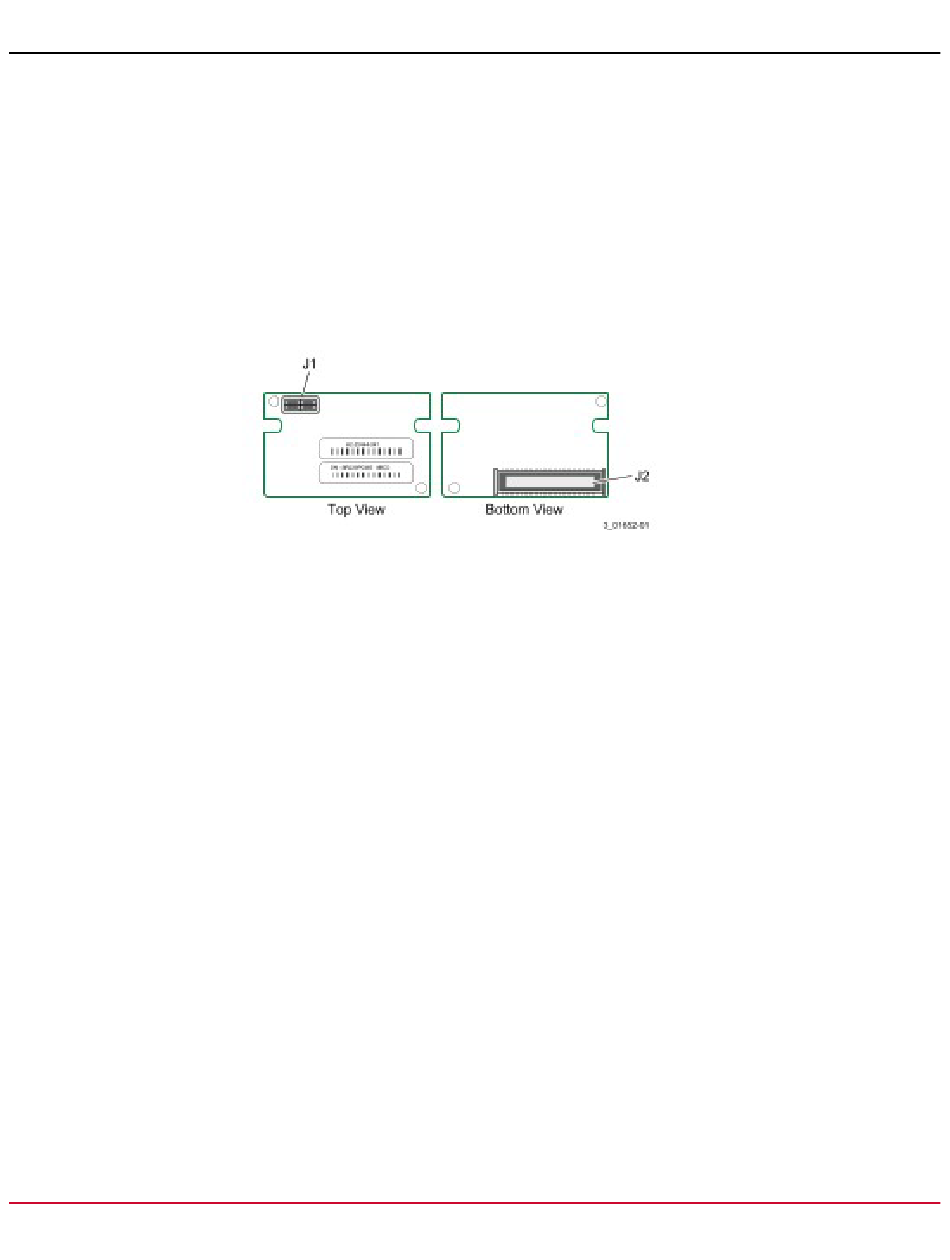

Figure 1: Front View and Back View of the CVFM04 Module
•
J1 – 9-pin Connector to the Remote CVPM02 Module
•
J2 – 70-pin Board-to-Board Connector
Broadcom
Motherboard.
CVPM02, CVPM05 Power Modules | CVFM04 Cache Module
Connect the CVFM04 Module to the Remote
Install the MegaRAID
CVPM02-05-CVFM04-UG101
7
