CVPM02, CVPM05, CVFM04 User Guide CVPM02, CVPM05 Power Modules | CVFM04 Cache Module
3. Press down gently, but firmly, to seat the card correctly in the slot.
4. Secure the MegaRAID controller to the server chassis with the bracket screw.
5. Insert the remote mount board in a PCIe slot on the motherboard, as shown in the following figure.

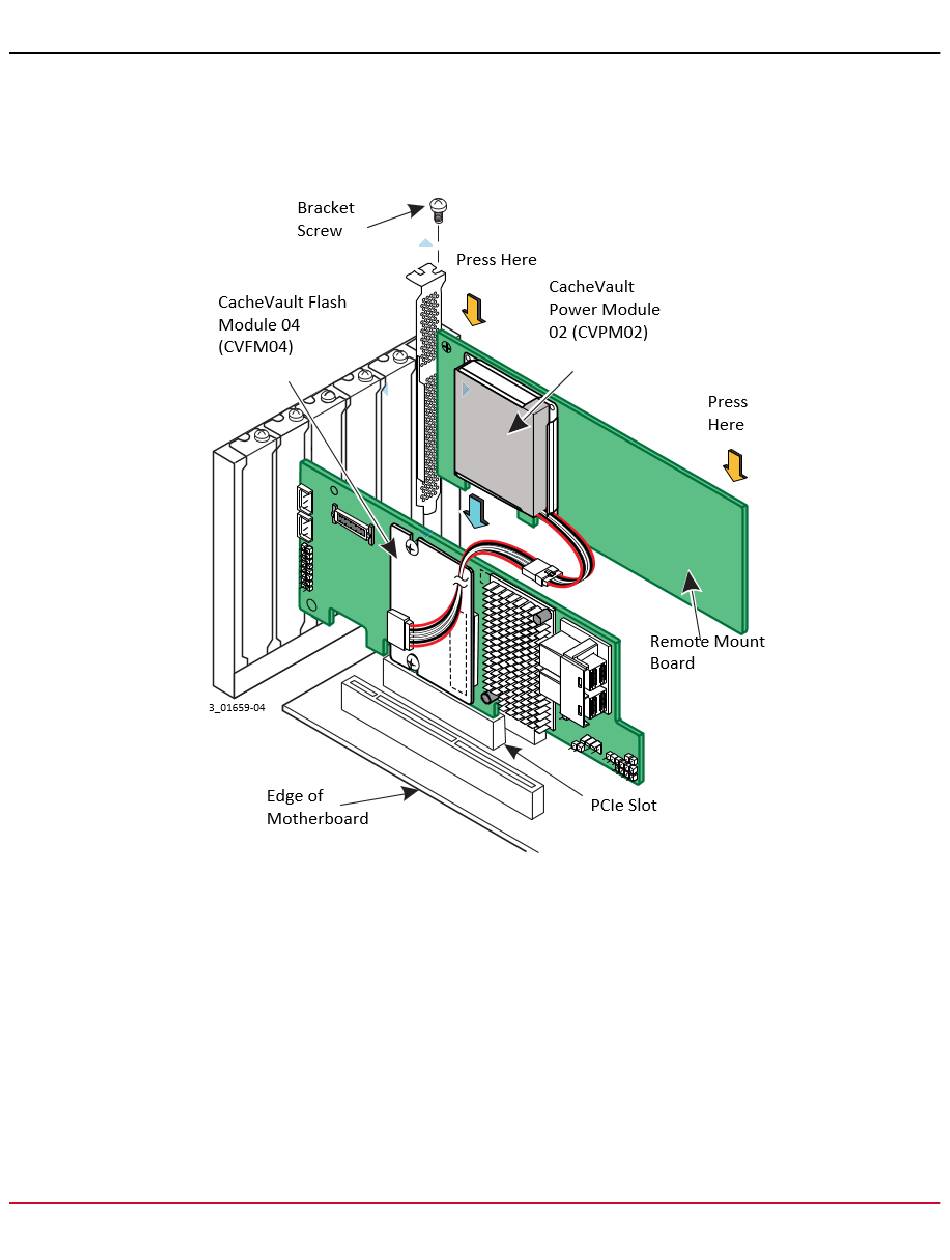

Figure 7: Install the Remote Mount Board
6. Press down gently, but firmly, to seat the card correctly in the slot.
7. Secure the remote mount board to the server chassis with the bracket screw.
8. Replace the computer cover and reattach the power cords.
9. Turn on the power to the computer.
Refer to the 12Gb/s MegaRAID SAS Software User Guide for information about the RAID configuration utility and the
MegaRAID SAS Device Driver Installation User Guide for software driver installation information.
Attaching a Remote CVPM05 Module by Cable to a MegaRAID
Controller
This section describes how to attach the CVPM05 module on a clip that attaches directly to the BBU-BRACKET-05
remote mount board (sold separately), and then connect the CVPM05 module by cable to your MegaRAID controller.
Broadcom CVPM02-05-CVFM04-UG101
14
