Broadcom CacheVault Power Module 02 Getting Started Manual

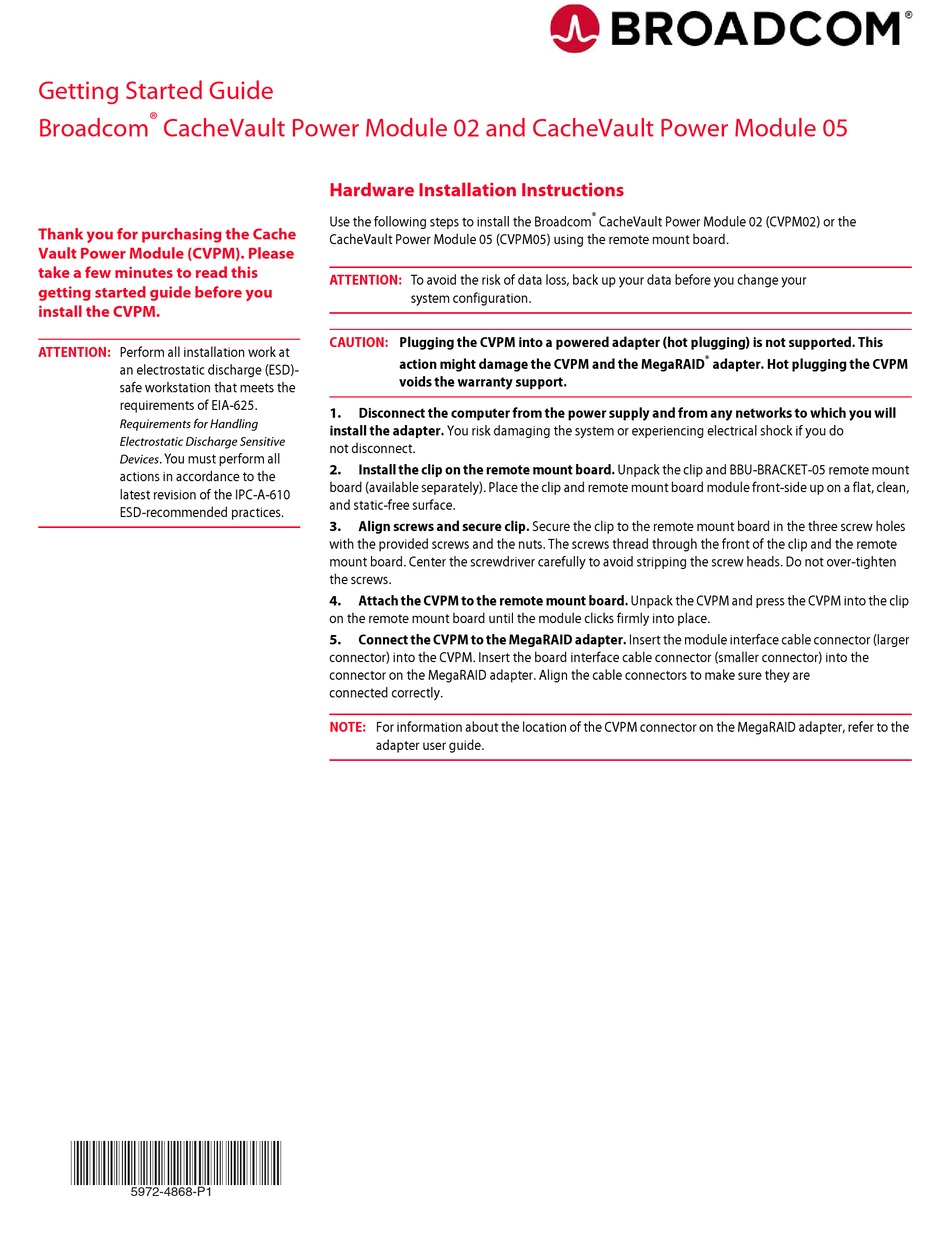

Getting Started Guide 
®
Broadcom CacheVault Power Module 02 and CacheVault Power Module 05
Thank you for purchasing the Cache
Vault Power Module (CVPM). Please
take a few minutes to read this
getting started guide before you
install the CVPM.
ATTENTION: Perform all installation work at
an electrostatic discharge (ESD)-
safe workstation that meets the
requirements of EIA-625.
Requirements for Handling
Electrostatic Discharge Sensitive
. You must perform all
Devices
actions in accordance to the
latest revision of the IPC-A-610
ESD-recommended practices.
5972-4868-P1
Hardware Installation Instructions
Use the following steps to install the Broadcom
CacheVault Power Module 05 (CVPM05) using the remote mount board.
ATTENTION: To avoid the risk of data loss, back up your data before you change your
system configuration.
CAUTION: Plugging the CVPM into a powered adapter (hot plugging) is not supported. This
action might damage the CVPM and the MegaRAID
voids the warranty support.
Disconnect the computer from the power supply and from any networks to which you will
1.
install the adapter. You risk damaging the system or experiencing electrical shock if you do
not disconnect.
Install the clip on the remote mount board. Unpack the clip and BBU-BRACKET-05 remote mount
2.
board (available separately). Place the clip and remote mount board module front-side up on a flat, clean,
and static-free surface.
3. Align screws and secure clip. Secure the clip to the remote mount board in the three screw holes
with the provided screws and the nuts. The screws thread through the front of the clip and the remote
mount board. Center the screwdriver carefully to avoid stripping the screw heads. Do not over-tighten
the screws.
Attach the CVPM to the remote mount board. Unpack the CVPM and press the CVPM into the clip
4.
on the remote mount board until the module clicks firmly into place.
5. Connect the CVPM to the MegaRAID adapter. Insert the module interface cable connector (larger
connector) into the CVPM. Insert the board interface cable connector (smaller connector) into the
connector on the MegaRAID adapter. Align the cable connectors to make sure they are
connected correctly.
NOTE: For information about the location of the CVPM connector on the MegaRAID adapter, refer to the
adapter user guide.
®
CacheVault Power Module 02 (CVPM02) or the
®
adapter. Hot plugging the CVPM
