CVPM02, CVPM05, CVFM04 User Guide

Attaching the CVPM to the Clip on the Remote Mount Board

Follow these steps to attach the CVPM to the clip on the remote mount board.
1. With the remote mount board on a flat, clean, static-free surface, ground yourself, and make sure that the system
is grounded.
2. Remove the CVPM from the package.
3. Press the CVPM into the clip on the remote mount board until the module clicks firmly into place, as shown in the
following figure.

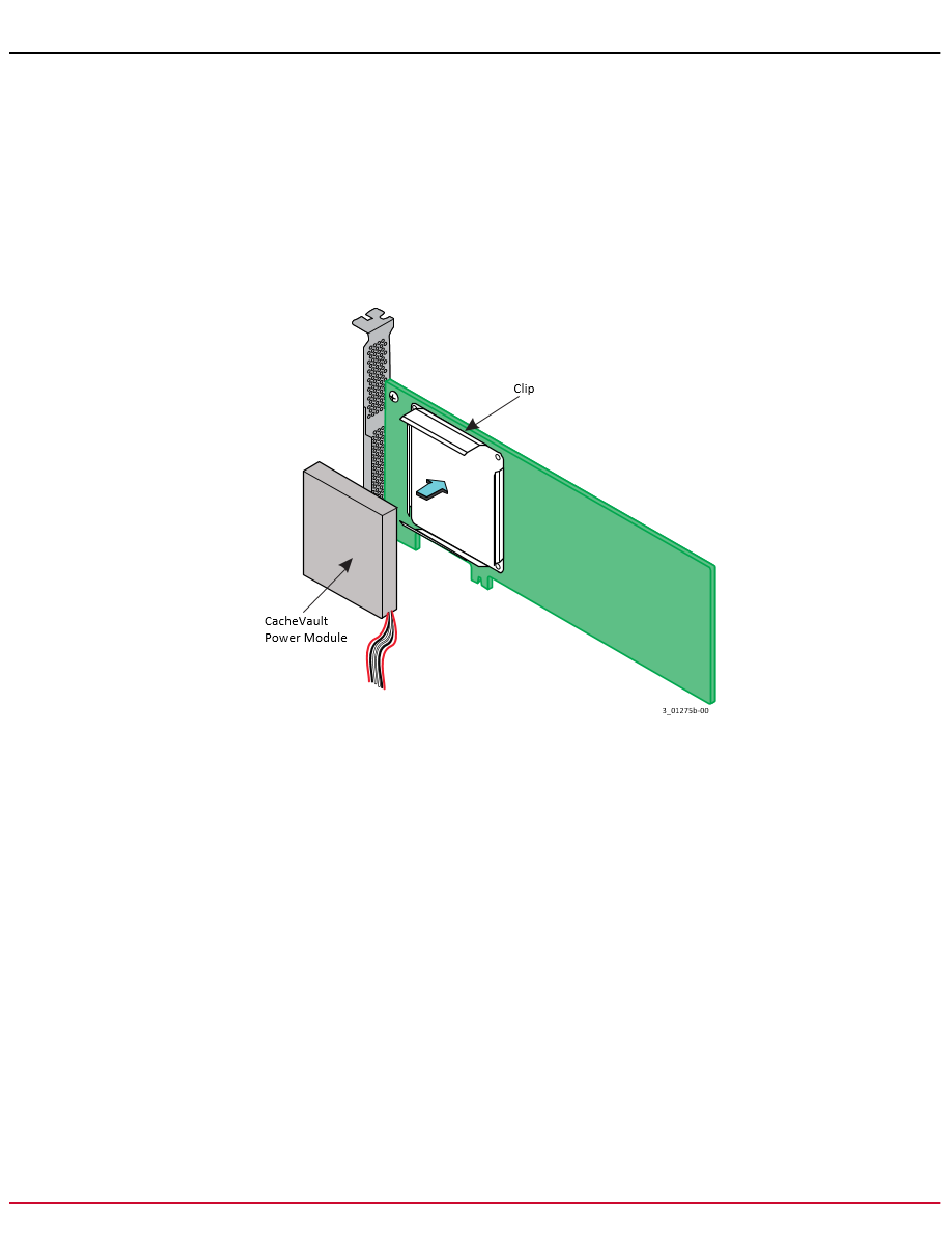

Figure 4: Connect the CVPM to the Clip on the Remote Mount Board
