Using a Custom Mounting Bracket

If you design your own retention clip, the clip must not apply pressure to the top side of the supercapacitor. This pressure
can damage the PCB that mounts to the top of the capacitors. Your clip design must only apply retention pressure to the
sides of the supercapacitor. Do not design the clip to apply pressure to the top or bottom of the supercapacitor. The top
and bottom of the supercapacitor pack keeps the supercapacitor from shifting out of the clip.

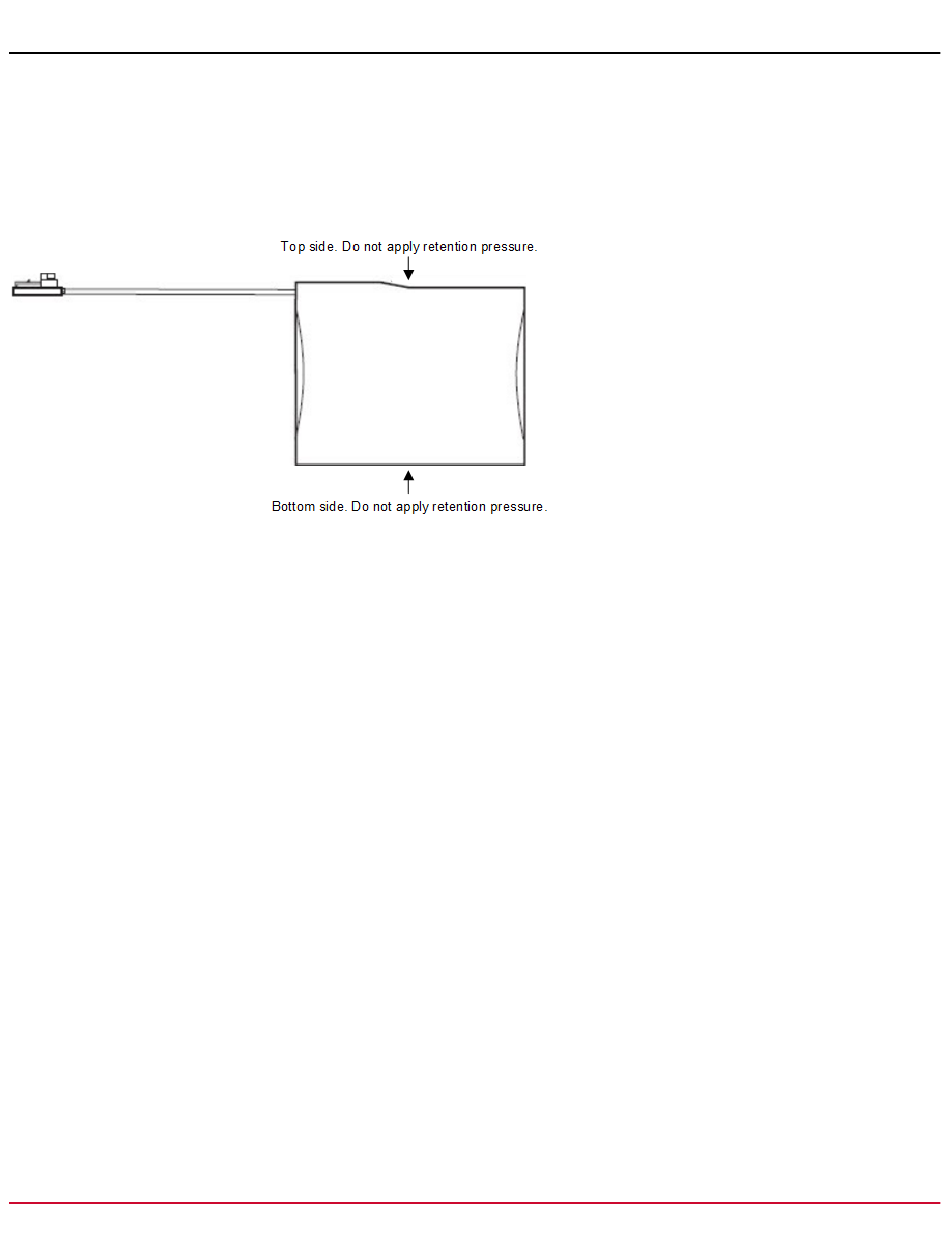

Figure 9: CVPM Top and Bottom
See CacheVault Module Specifications for the supercapacitor dimensions, or download a 2D and 3D mechanical drawing
of the supercapacitor and metal clip from docSAFE (log in and select docSAFE from https://portal.broadcom.com/group/
support/docsafe).
