Graphing & History

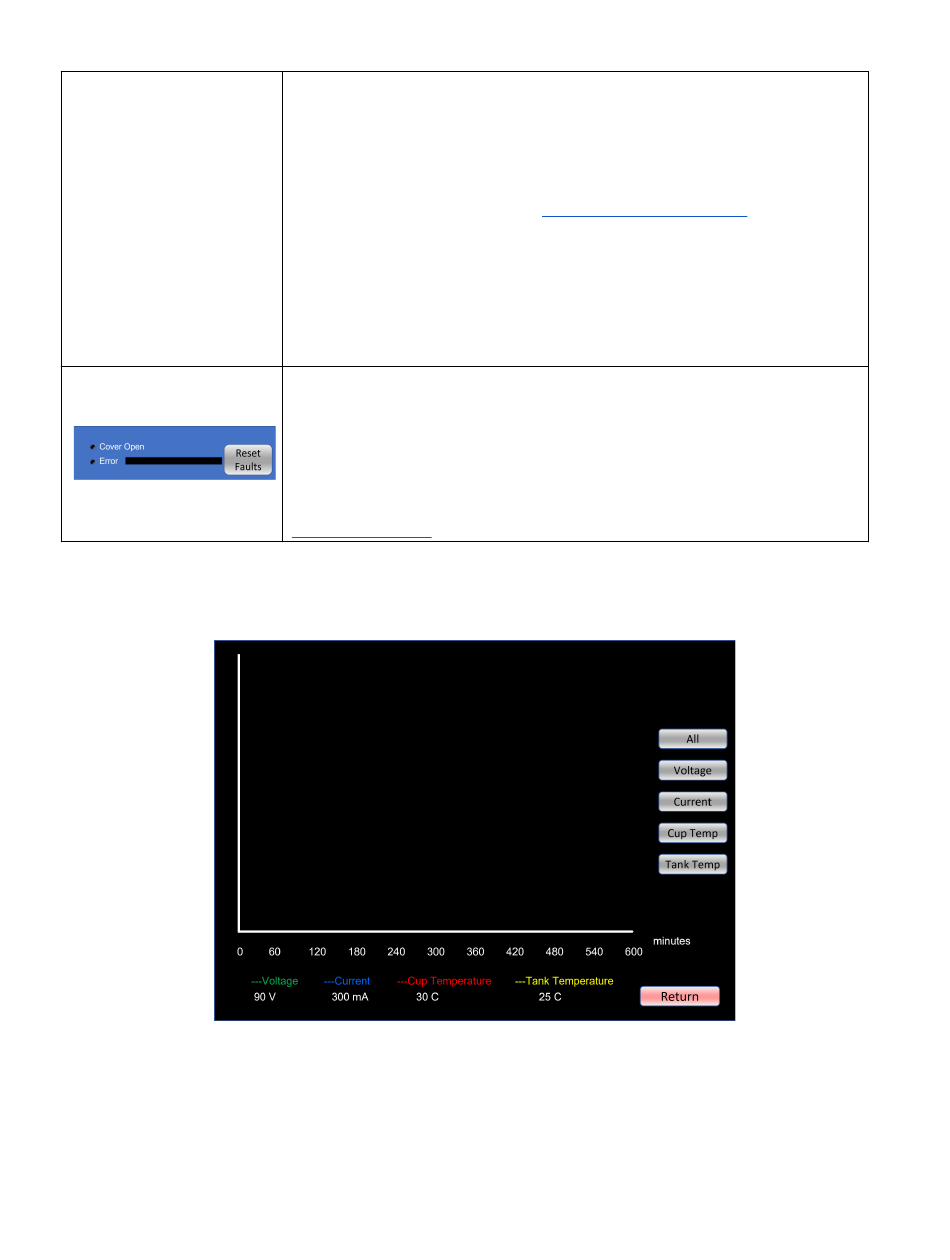

SmartBatch+ stores the Voltage, Current, Cup Temperature and Tank Temperature for each
active experiment and displays them in a rolling graph like an oscilloscope. To see each value in
more detail with labeled axes, press on their individual buttons. This data is overwritten each
time the electrophoresis is switched on.
www.lifecanvastech.com
The "History" button will bring up a graph showing the values from
the current experiment.
The "Mode" button will allow the user to toggle between Run
Mode and Calibration Mode. This is used to calibrate the
temperature sensors. See the
more information.
The "Preset" button allows the user to toggle between preset
Clearing, Labeling 1, and Labeling 2 modes. The current preset will
be displayed to the right of the button. If the user changes any of
the values, the mode will automatically update to User.
This is the Faults Panel. When the Case Lid is open, the "Cover
Open" indicator will light up. When the lid is open, the device will
halt any Electrophoresis Power. To turn this back on, close the lid
and press the "Reset Faults" button.
Any other errors will be indicated the the "Error" indicator. See the
Troubleshooting section for more information on displayed errors.
