SMARTLABEL
Quick Installation Guide

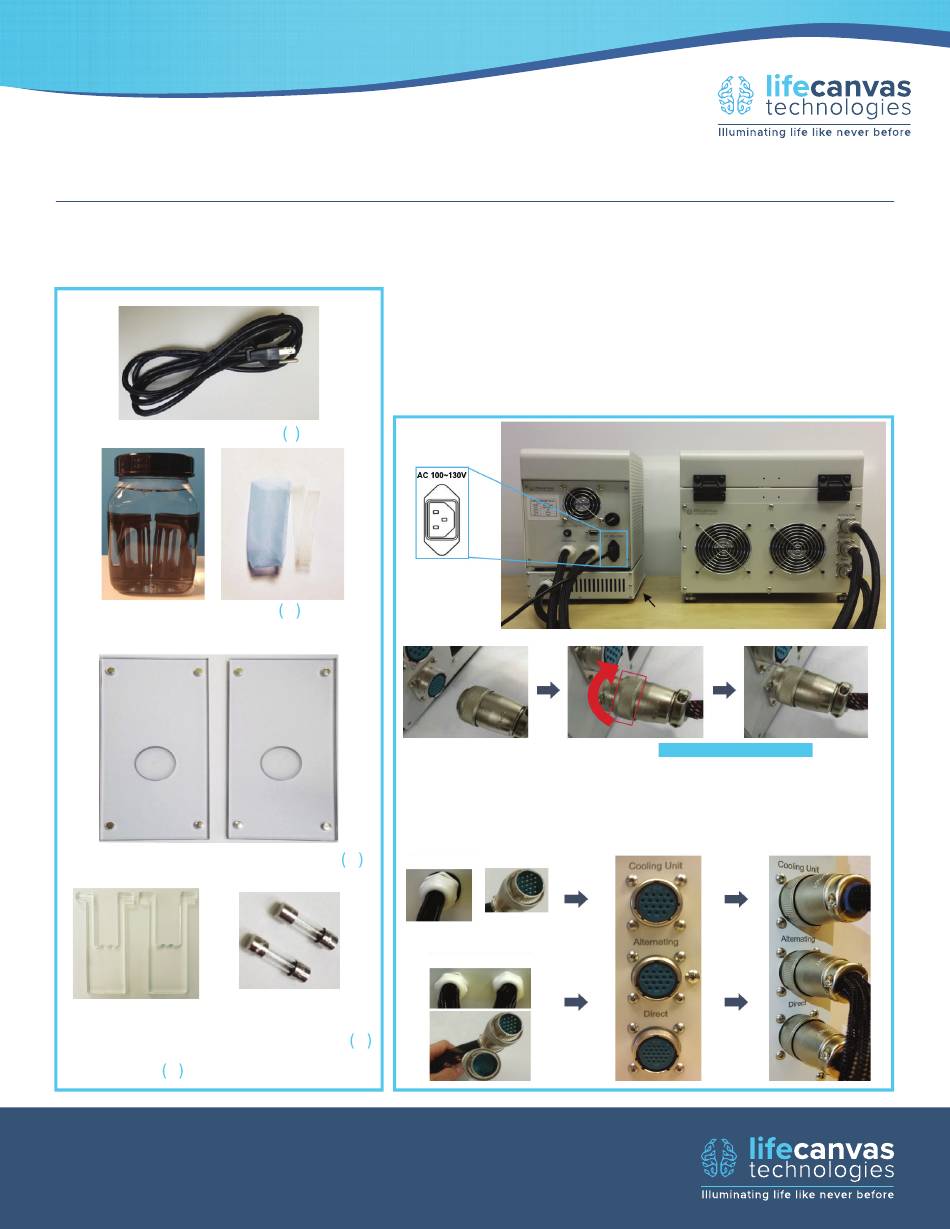

1
Carefully remove SmartLabel, the SmartBox, and the SmartBox+ from the packaging and place
at the installation location. We recommend at least 8 inches of space around the devices for
proper airfl ow, and a level surface. Locate the parts listed below.
POWER CABLE 1
SAMPLE CUPS 2
AND MESH INSERTS
SAMPLE CHAMBER COVERS 2
SAMPLE
EXTRA FUSES 2
CHAMBER
SPACERS 4
INFO@LIFECANVASTECH.COM
LIFECANVASTECH.COM
Connect the cable originating from the 'Cooling Unit' port on
SmartBox+ to SmartLabel. Similarly, connect the cable from
the 'Alternating' port on SmartBox to SmartLabel. Do the
same for the 'Direct' cable. Attach the main power cable to
the rear side of SmartBox and plug it into an outlet with the
correct voltage requirements.
SMARTBOX
INSERT
POWER
CORD
ALIGN TABS AND
PLUG IN CABLE
SMARTBOX+
COOLING UNIT
SMARTBOX
ALTERNATING
DIRECT
SMARTLABEL
SMARTBOX+
SCREW BEARING
SCREW BEARING
LOCK NUT
CLOCKWISE
COMPLETELY.
SMARTLABEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTLABEL and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifecanvas Technologies SMARTLABEL

  • Page 1 SMARTLABEL Quick Installation Guide Carefully remove SmartLabel, the SmartBox, and the SmartBox+ from the packaging and place at the installation location. We recommend at least 8 inches of space around the devices for proper airfl ow, and a level surface. Locate the parts listed below.
  • Page 2 Open the lid to SmartLabel. Identify the two black screw-top lids to the solution reservoirs at the Open the lid to SmartLabel. Identify the two black screw-top lids to the solution reservoirs front, and the two translucent plastic sample chambers towards the back. The left-side reservoir front, and the two translucent plastic sample chambers towards the back.
  • Page 3 Turn the physical power switch on the rear side of the SmartBox from O to I to power up the system. There are drainage tubes located under the panel at the bottom front of SmartLabel, with the one on th eleft connected to reservoir A and the one on the right to reservoir B. In the left image below, the stopcock is in the closed position.
  • Page 4 When performing an experiment, a sample is loaded into an insert that is lowered into the sample cup, which is then gently inserted into the hexagonal slot on the fl oor of one of SmartLabel’s sample chambers as shown below.

Table of Contents
