Installation -

Cabling

Two Options
Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording
images instantly.
A non-PoE switch will require an adaptor for power transmission.
1. Using a PoE-Enabled Switch
The Camera is PoE-compliant, allowing transmission
of power and data via a single Ethernet cable.
PoE eliminates the need for the different cables used

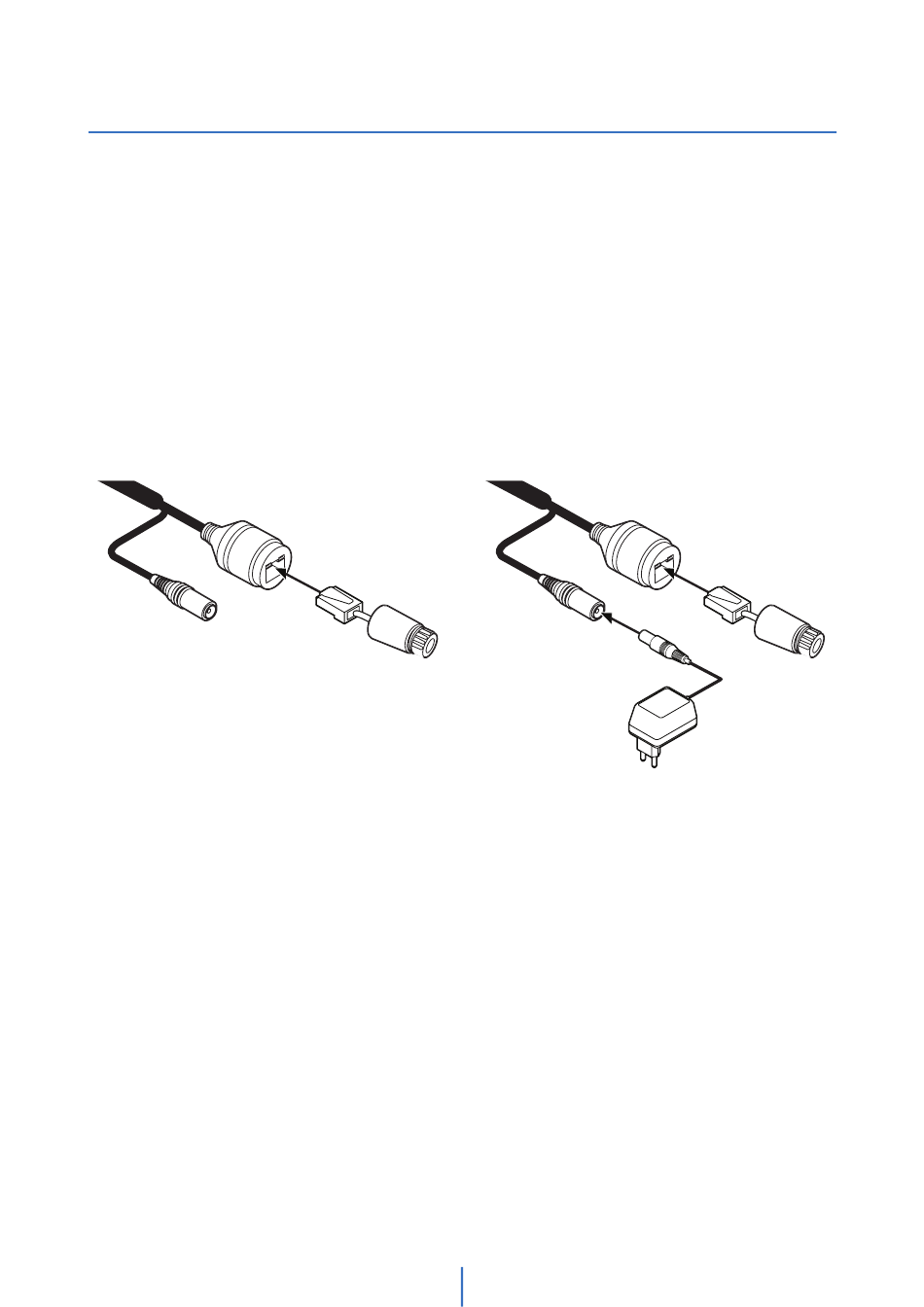

to power, record, or control the camera. Follow the
illustration below to connect the camera to a PoE-
enabled switch using an Ethernet cable.
2. Using a Non-PoE Switch
If a PoE-enabled switch is not used, use a power
adaptor for power transmission and non-PoE switch
for data transmission.
Follow the illustrations below to connect the camera
without a PoE-enabled Switch.
Ethernet Cable
8 8
Ethernet Cable
Power
