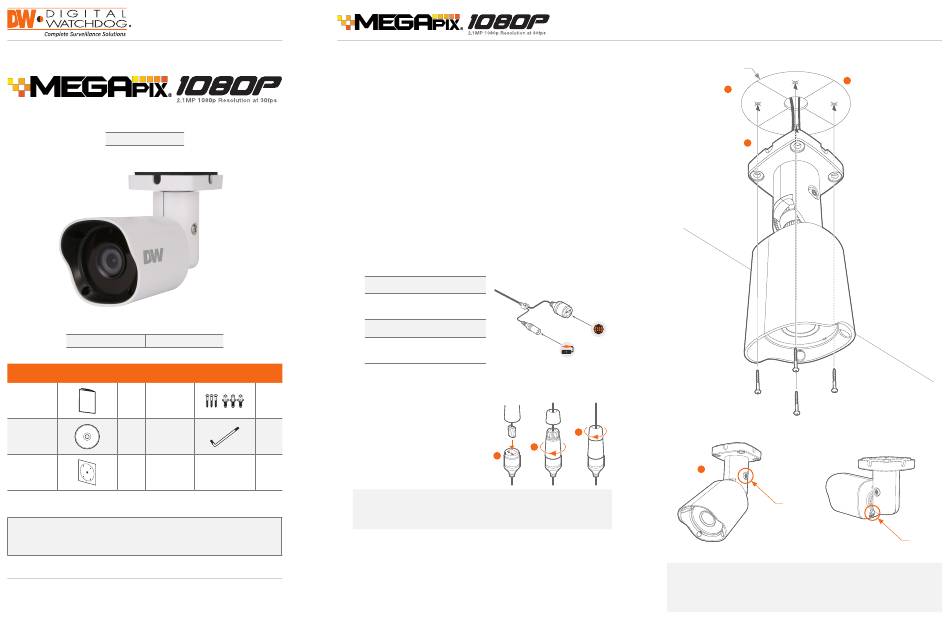

Quick Start Guide

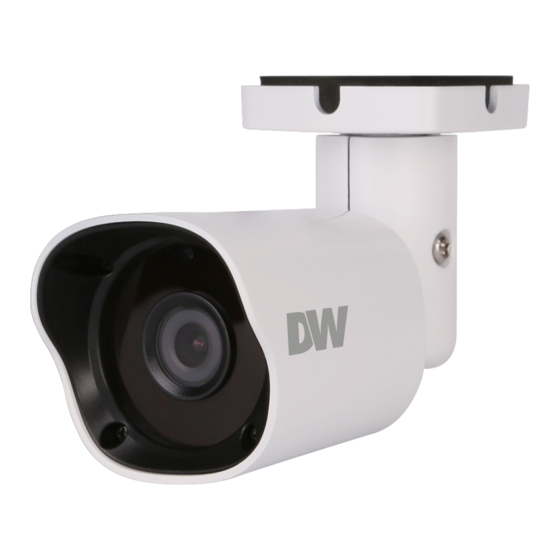

DWC-MB82i4V
Username: admin Password: admin
WHAT'S IN THE BOX
Screw & Plastic
QSG Manual 1 Set
Anchor – 3pcs
Manual CD 1 Set Torx Wrench
Template Sheet 1 Set
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
4. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b.
NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 2
Power Consumption
LED Off: 1.92W, 160mA
LED On: 2.7W, 230mA (IR models only)
Step 3 – INSTALLING THE CAMERA
1 Set
5. To use the camera's water proof wiring:
(1).
Install the LAN cable into (a).
(2).
(b) will be assembled to (a)
1 Set
with a 1/4 turn.
(3).
Thread (c) tightly to (b).
Note: To ensure moisture seal, make sure the o-ring is in place between
(a) and (b). In extreme environments use of an outdoor rated sealer
is recommended.
6. Before mounting the camera, loosen the pan/tilt screw on the side of the
camera's bracket. This will make adjustment after mounting the camera easier.
7. Fix the camera on to the mounting surface using the screws included with the
camera.
digital-watchdog.com
8. Adjust the camera's pan and tilt. Tighten the pan/tilt screw on the camera's
bracket until it is secured properly.
NETWORK
CONNECTION
POWER
c
b
a
Quick Start Guide
Template
Sheet
1
3
2
8
Pan/Tilt
Screw
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
Reset
Button
