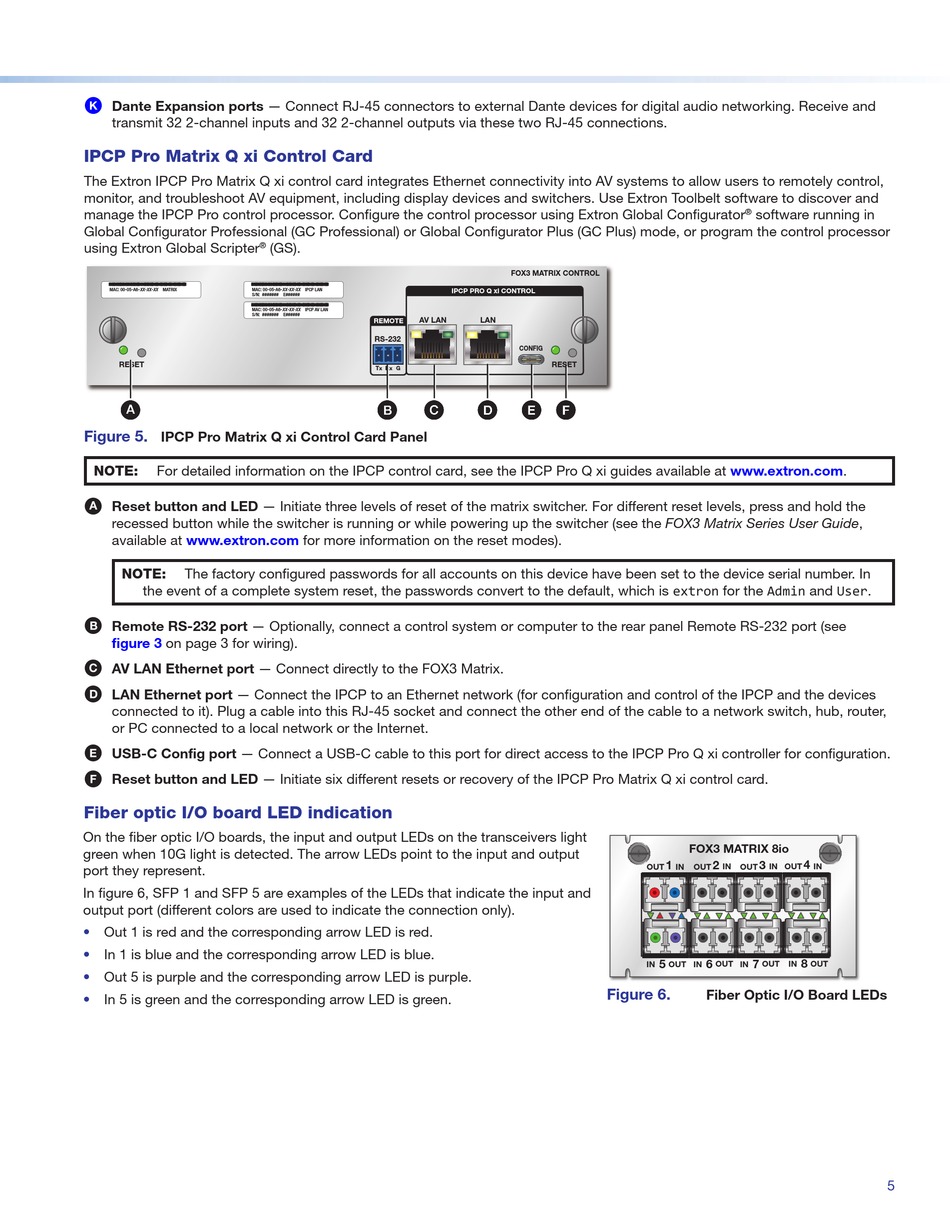

K Dante Expansion ports — Connect RJ-45 connectors to external Dante devices for digital audio networking. Receive and
transmit 32 2-channel inputs and 32 2-channel outputs via these two RJ-45 connections.
IPCP Pro Matrix Q xi Control Card
The Extron IPCP Pro Matrix Q xi control card integrates Ethernet connectivity into AV systems to allow users to remotely control,
monitor, and troubleshoot AV equipment, including display devices and switchers. Use Extron Toolbelt software to discover and
manage the IPCP Pro control processor. Configure the control processor using Extron Global Configurator
Global Configurator Professional (GC Professional) or Global Configurator Plus (GC Plus) mode, or program the control processor
using Extron Global Scripter
®
00-05-A6-XX-XX-XX 00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX MATRIX MAC: 00-05-A6-XX-XX-XX IPCP LAN
S/N: ####### E######
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX IPCP AV LAN
S/N: ####### E######
RESET
A A A A A A A A A A A
Figure 5.
IPCP Pro Matrix Q xi Control Card Panel
For detailed information on the IPCP control card, see the IPCP Pro Q xi guides available at www.extron.com.
NOTE:
A Reset button and LED — Initiate three levels of reset of the matrix switcher. For different reset levels, press and hold the
recessed button while the switcher is running or while powering up the switcher (see the FOX3 Matrix Series User Guide,
www.extron.com
available at
NOTE: The factory configured passwords for all accounts on this device have been set to the device serial number. In
the event of a complete system reset, the passwords convert to the default, which is extron for the Admin and User.
B Remote RS-232 port — Optionally, connect a control system or computer to the rear panel Remote RS-232 port (see
figure 3
on page 3 for wiring).
C AV LAN Ethernet port — Connect directly to the FOX3 Matrix.
D LAN Ethernet port — Connect the IPCP to an Ethernet network (for configuration and control of the IPCP and the devices
connected to it). Plug a cable into this RJ-45 socket and connect the other end of the cable to a network switch, hub, router,
or PC connected to a local network or the Internet.
E
USB-C Config port — Connect a USB-C cable to this port for direct access to the IPCP Pro Q xi controller for configuration.
F Reset button and LED — Initiate six different resets or recovery of the IPCP Pro Matrix Q xi control card.
Fiber optic I/O board LED indication
On the fiber optic I/O boards, the input and output LEDs on the transceivers light
green when 10G light is detected. The arrow LEDs point to the input and output
port they represent.
In figure 6, SFP 1 and SFP 5 are examples of the LEDs that indicate the input and
output port (different colors are used to indicate the connection only).
• Out 1 is red and the corresponding arrow LED is red.
• In 1 is blue and the corresponding arrow LED is blue.
• Out 5 is purple and the corresponding arrow LED is purple.
• In 5 is green and the corresponding arrow LED is green.
(GS).
AV LAN
REMOTE
RS-232
Tx Rx G
B B B B B B B B B B B C C C C C C C C C C C
for more information on the reset modes).
FOX3 MATRIX CONTROL
IPCP PRO Q xi CONTROL
LAN
CONFIG
RESET
D D D D D D D D D D D E E E E E E E E E E E F F F F F F F F F F F
Figure 6.
software running in
®
FOX3 MATRIX 8io
1 2 3 4
OUT IN OUT IN OUT IN OUT IN
5 6 7 8
OUT IN OUT OUT IN OUT
IN IN
Fiber Optic I/O Board LEDs
