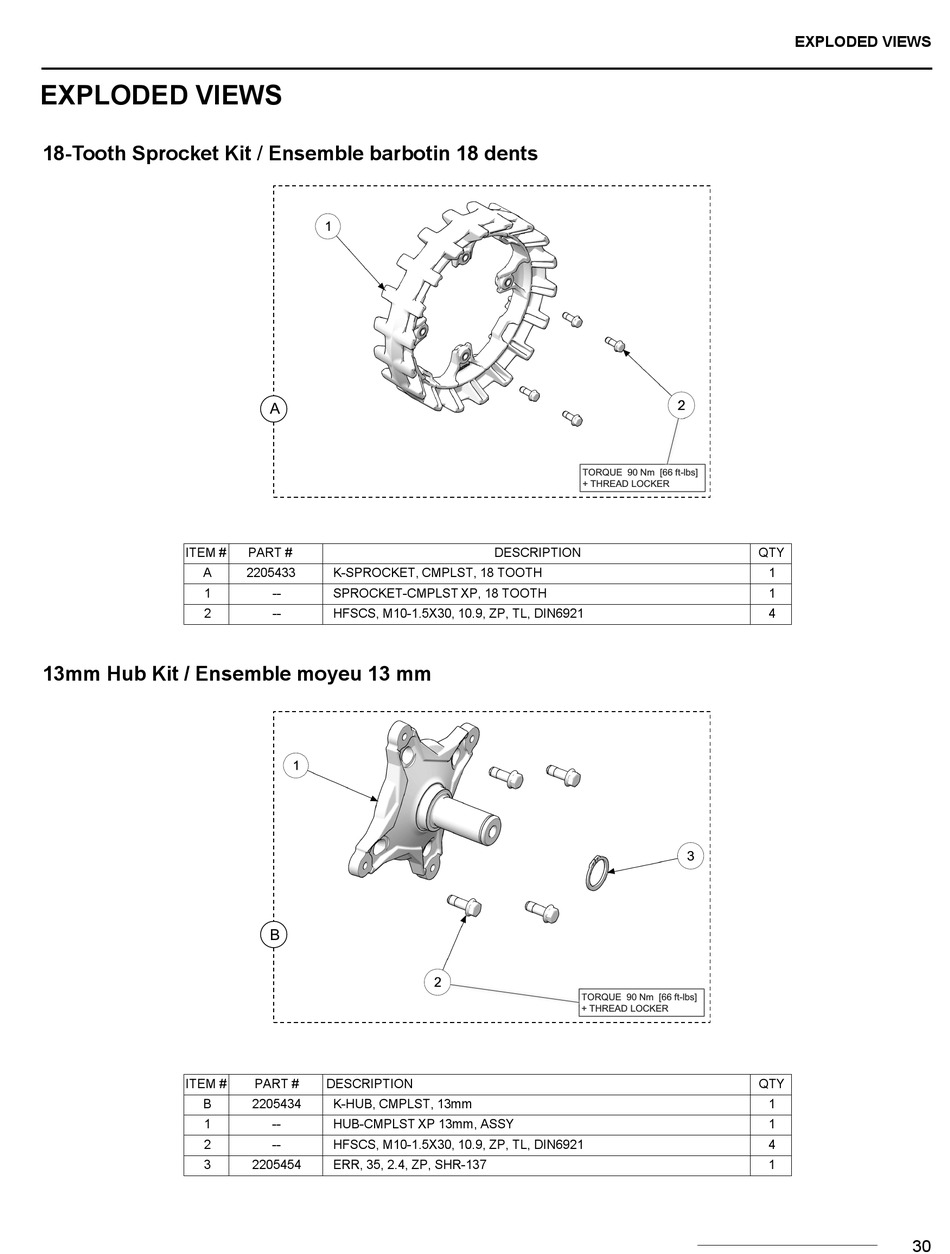

EXPLODED VIEWS

18-Tooth Sprocket Kit / Ensemble barbotin 18 dents
ITEM #
A
1
2
13mm Hub Kit / Ensemble moyeu 13 mm
ITEM #
B
1
2
3
PART #
2205433 K-SPROCKET, CMPLST, 18 TOOTH
-- SPROCKET-CMPLST XP, 18 TOOTH
-- HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN6921
PART # DESCRIPTION
2205434 K-HUB, CMPLST, 13mm
-- HUB-CMPLST XP 13mm, ASSY
-- HFSCS, M10-1.5X30, 10.9, ZP, TL, DIN6921
2205454 ERR, 35, 2.4, ZP, SHR-137
DESCRIPTION
EXPLODED VIEWS
QTY
1
1
4
QTY
1
1
4
1
30
