SPECIFICATIONS

SPECIFICATIONS
TORQUE SPECIFICATIONS
The table below contains the recommended torque
specifications according to bolt size and grade.
CAUTION: Some bolts in the Track System
assembly have a specific torque specification.
Refer to the exploded views at the end of the
Manual to obtain the exact torque specifications
applied to these bolts.
DIMENSION GRADE
M6-1.0 8.8
M8-1.25 8.8
M8-1.25 10.9
M10-1.5 8.8
M10-1.5 10.9
M12-1.75 8.8
M12-1.75 10.9
NOTE: Use a thread locker (Loctite 262 type or its
equivalent) at indicated places in the exploded
views of the system.
9
Nm lb-ft
10 7
25 18
33 24
50 37
70 52
90 66
125 92

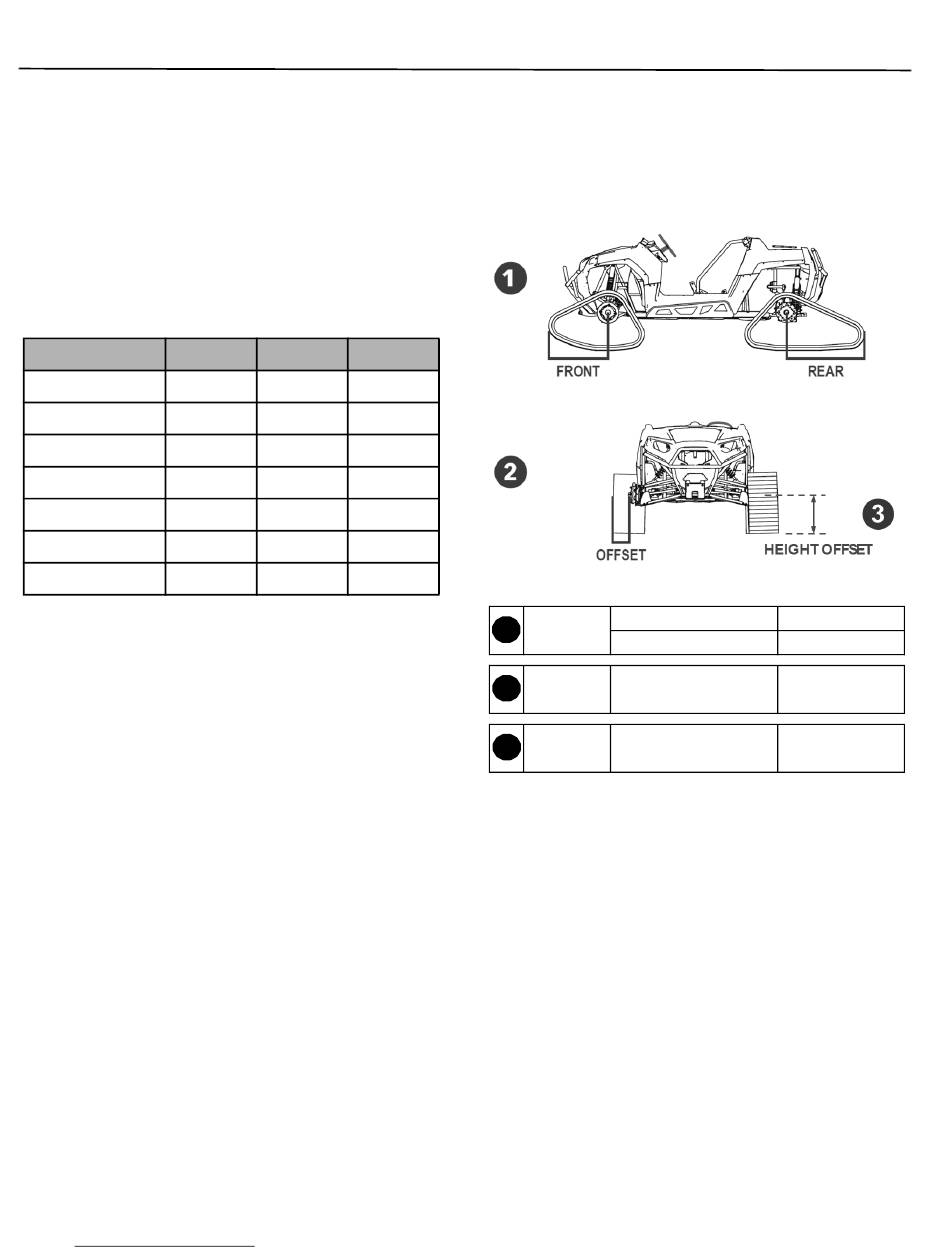

OFFSETS ON VEHICLE
Installation of a Track System on a vehicle creates
offsets in length, height and width. The offsets are
illustrated in the figure below and their dimensions
are specified in the accompanying table.
OFFSET
1
(LENGTH)
OFFSET
2
POLARIS
(WIDTH)
OFFSET
3
ORIGINAL TIRE:
(HEIGHT)
SPEEDOMETER AND TRIP METER
READINGS
Our Track System affects the Speedometer and Trip
meter readings by approximately 35% depending
on the ratio between sprocket and tire size.
24 in (610 mm)
FRONT
27 in (686 mm)
REAR
7 in (178 mm)
24 in 3 in (76 mm)
