Summary of Contents for Polaris NP300 Maxx

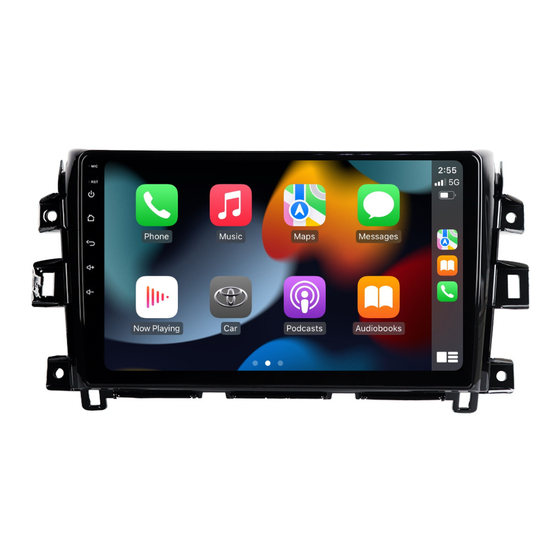

- Page 1 NP300 Maxx Installation Manual Please read this manual before attempting to install the product...
-
Page 2: Warranty Details
Water damage • Improper use • Labour • Postage and Handling • If you have any questions concerning the installation, warranty or the operation of the unit, please contact Polaris on 1300 555 514. We hope that you enjoy the NP300Maxx... -
Page 3: Installation Notes
When pulling the dash apart, please use quality trim tools to avoid damaging your dash. Please do NOT cut any plugs off of any Polaris cameras. Doing so will void your warranty! If you need to blend other brand cameras into our system, please call Polaris on 1300 555 514 so we can refer you to a recommended dealer who has the skill and experience in performing this type of work. - Page 4 Removing the Dash panel 1. Start by removing the 2 2. Make sure to use a quality 3. Remove 5 screws either trims beside the original head trim tool to avoid damaging side of the radio unit and air unit your dash con panel 4.
-
Page 5: Main Harness
NP300 you have. Please use the plug that matches with your vehicle. Main Power: Black plug on harness, plugs into back of Polaris NP300 head unit Steering Wheel Controls & OEM Reverse Camera Steering Wheel Controls (No OEM Reverse Camera) -
Page 6: Gps Antenna
Wiring Factory USB retention Plugs into back of factory USB Plugs into one of the USBs from PLUG F Bluetooth Microphone (optional) You can take Plugs into Bluetooth mic the foam off the mic for input ON PLUG F better clarity Factory AUX Retention (more on page 5) Plugs into AUX L &... - Page 7 Polaris head unit 3. Install head unit. We suggest testing all features before putting the dash panel back together. If you have any questions regarding the installation of this unit, please call Polaris on 1300 555 514 or email sales@polarisgps.com.au...
