Summary of Contents for LXE RX2

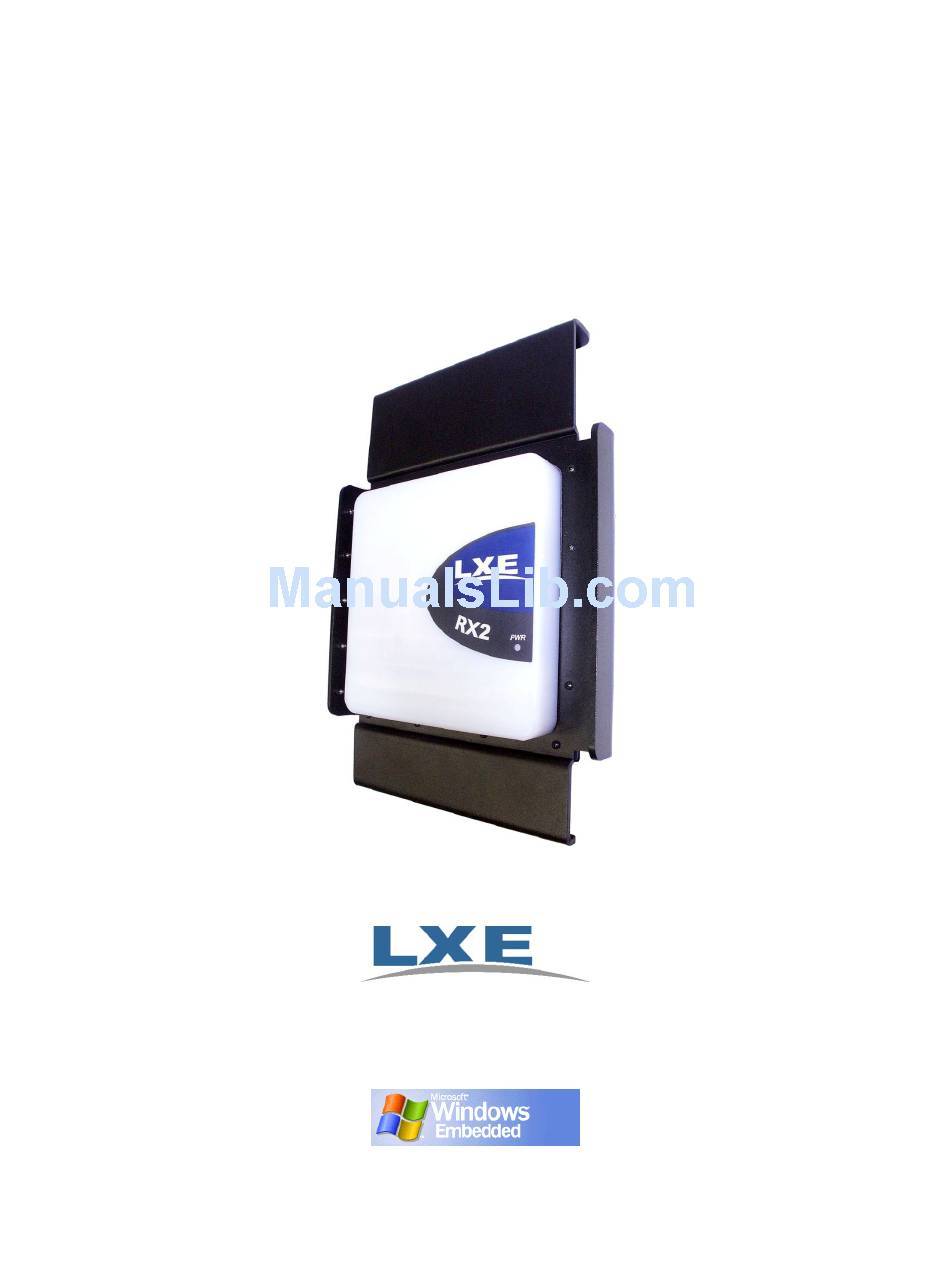

- Page 1 RX2 User’s Guide ® ® (Microsoft Windows CE .NET Equipped) Copyright © April 2007 by LXE Inc. All Rights Reserved E-EQ-RX2OGWW-B...
- Page 2 Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. or other countries, and are used under license. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under license.
- Page 3 Appendix A – Regulatory Notices and Safety Information Note: A complete revision history is included in Appendix A, “Regulatory Notices and Safety Information”. Revision Notice RX2 User’s Guide Explanation Updated Trademarks. Revised list based on currently available items. Revised section.
-
Page 5: Table Of Contents
DC to DC Power Supply...14 Vehicle Cradle 24/72VDC Input Cable Connection ...15 The RX2 Battery Charger... 18 PERATION Turning the RX2 On ... 19 The Power Switch...19 The Power LED... 20 Additional Low Power Warning...20 Tag Orientation and the RX2... 21... - Page 6 EGULATORY Approvals ... 24 Revision History... 25 NDEX Illustrations Figure 1 RX2 Connector Panel ...3 Figure 2 RX2 Components ...3 Figure 3 RFID Tag Reading Ranges ...4 Figure 4 Mounting Provisions...8 Figure 5 Connect USB Cable...9 Figure 6 Connect Serial Cable ...9 Figure 7 Connect Power Source or Battery Charger ...10...
-
Page 7: Introduction
RFID module. The RX2 does not feature a display or keypad. Configuration is performed via the USB port using Microsoft ActiveSync and other utilities. Please refer to your system administrator for details on configuration and application operation. -
Page 8: Document Conventions
Document Conventions ALL CAPS Menu | Choice “Quotes” < > ATTENTION Note: Caution Warning Danger RX2 Environmental Specifications Operating Temperature Storage Temperature Water and Dust Operating Humidity Vibration Shock Battery Charger Environmental Specifications Operating Temperature Storage Temperature Operating Humidity RX2 User’s Guide All caps are used to represent disk directories, file names, and application names. -
Page 9: Components
Components Quick Start Note: The RX2 is assembled with an optional internal battery pack (if ordered) and radio card installed before shipment. This section’s instructions are based on the assumption that your new system is pre-configured and requires only a power source. -
Page 10: Rfid Introduction
Generally, when the RX2 is on, the RFID reader is ready for use. • While the RX2 is booting, the Power LED is lit solid. The RFID reader is not available until the Power LED beings flashing and all drivers have finished loading. -
Page 11: Getting Help
LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”. This information is also available on the LXE website www.lxe.com. - Page 12 Getting Help RX2 User’s Guide E-EQ-RX2OGWW-B...
-
Page 13: Installation
Please read Appendix A, “Regulatory Notices and Safety Information” before installation. E-EQ-RX2OGWW-B Installation Use the optional internal battery after it is charged with the RX2 Battery Charger Use a direct connection to 12V DC vehicles Use a DC to DC converter for 24 – 60 VDC vehicles... -
Page 14: Mounting The Rx2
1. Install the bracket by placing the hook (at the bottom of the bracket) over the lip of a Cascade 2. Slide the RX2 over to the desired position. 3. Secure with (4) 1/4-20 set screws in the threaded holes on the top surface of the bracket. -
Page 15: Connect Cables
A USB Client port is available via an adapter cable. The USB connection is used to establish an ActiveSync connection with a PC. Insert the D9 end of the USB adapter cable into the RX2 USB connector. Seat the connector firmly over the pins and turn the thumbscrews in a clockwise direction. Do not over tighten. -
Page 16: Determine Power Source
The RX2 is available with an optional internal battery pack. Use the battery charger to charge the RX2’s internal battery. The RX2 battery charger charges the RX2 battery pack in less than 6 hours. It is recommended the internal battery pack be fully charged before installing the RX2. -
Page 17: Prepare Charger Connection
3. Plug the Battery Charger into an AC outlet. 4. When the Charger is attached the RX2 is Off regardless of the power switch position. If the power switch is in the On position, the RX2 boots up when the charger is removed. -
Page 18: Vehicle 12Vdc Direct Power Connection
Correct electrical polarity is required for safe and proper installation. Connecting the cable to the RX2 with the polarity reversed will cause the power cable’s fuse to be blown. See the following figure titled “Vehicle Connection Wiring Color Codes” for additional wire color-coding specifics. -
Page 19: Figure 11 Vehicle Connection Wiring Color Codes
If necessary, the power cable can be extended using customer supplied components such as terminal blocks and a festoon cable. Any cables must be 18 AWG or heavier gauge, 250” (635 cm) or less in length and provide not less than 11.2 VDC at the RX2. E-EQ-RX2OGWW-B For uninterrupted power, electrical supply connections should not be made at any point after the ignition switch of the vehicle. -
Page 20: Dc To Dc Power Supply
DC to DC Power Supply, 9000A316PS24V72BARE RX2 Power Connection Cable, RX2A052CBLDCPWR RX2 (DC powered) Vehicle 24 to 72 VDC Power Source DC Power Cabling, Not supplied by LXE (by lift manufacturer, for example) Figure 12 DC to DC Power Supply Cabling Determine Power Source... -
Page 21: Vehicle Cradle 24/72Vdc Input Cable Connection
Figure 14 Connecting the Power Supply to the Vehicle 4.7” Figure 15 Power Supply Mounting Template (Not to Scale) 1. Make sure the RX2 power switch is in the Off position. 2. Turn the Power Supply toggle switch to the Off position. E-EQ-RX2OGWW-B 1. -
Page 22: Figure 16 Vehicle Connection Wiring Color Codes
The input power cord for the DC-DC Power Supply uses white, black and green wires. Some LXE products have DC input power cords with brown, blue and green wires. The previous table shows the correct electrical connection for either type of cable. - Page 23 9. Turn the Power Supply on. The ON LED on the Power Supply illuminates when it is receiving power from the vehicle. 10. Turn the RX2 On. 11. The status LED on the RX2 lights solid green while the RX2 is booting, then switches to flashing green after the RX2 has finished booting. E-EQ-RX2OGWW-B...
-
Page 24: The Rx2 Battery Charger
The RX2 Battery Charger The RX2 battery charger accepts AC power input. The charger can be used to internal RX2 battery pack in less than six hours. The battery changer can operate in environments from 32°F to 104°F (0°C to 40°C). -
Page 25: Operation
Turning the RX2 On RX2’s with an optional internal battery have a Power Switch to turn the unit On or Off. RX2’s without the internal battery have no power switch. These units are On whenever DC power is applied. Note: The DC to DC Power Supply contains an On/Off switch. -
Page 26: The Power Led
• A low battery buzzer may sound. • The network host may be configured to monitor for RX2 units with a low battery. Please consult your system administrator for details. RX2 User’s Guide Figure 20 Power LED Indicates the RX2 is switched off or no power is applied to the RX2. -
Page 27: Tag Orientation And The Rx2
Tag Orientation and the RX2 The RX2 contains an RHCP (right hand circularly polarized) antenna. Tags orientation by rotation on the “Z” axis does not decrease the range of the RX2’s RFID reader. However, changing tag orientation by rotating on the “X” axis or “Y” axis can reduce the range of the RX2’s RFID reader. - Page 28 Tag Orientation and the RX2 RX2 User’s Guide E-EQ-RX2OGWW-B...
-
Page 29: Appendixa Regulatory Notices And Safety Information
The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not been investigated by UL. Antenna Description: The antenna approved to operate with the RX2 Vehicle Mount Computer is a Right Hand, Circularly Polarized (RHCP) single-patch with 5dbi linear gain. E-EQ-RX2OGWW-B... -
Page 30: Approvals
Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about proper disposal, contact LXE through your local sales representative, or visit www lxe com. Vehicle Power Supply Connection Safety Statement... -
Page 31: Revision History
Connection DC to DC Power Supply Appendix A – Regulatory Notices and Safety Information E-EQ-RX2OGWW-B Explanation Updated Trademarks. Revised list based on currently available items. Revised section. Revised section with new graphics. Revised section. Revised Transceiver table. RX2 User’s Guide... - Page 32 Revision History RX2 User’s Guide E-EQ-RX2OGWW-B...
-
Page 33: Index
Radio frequency identification (RFID)...4 Regulatory Notices ...23 RFID tags...4 Safety Information...23 Scan Ranges RFID ...4 Silicon Controller Rectifiers (SCR's)...13 Sizing of electrical connectors for use with 18AWG conductors...13 Specifications Environmental...2 Status LED...20 Warning, Low Power...20 Wiring Color Codes...13, 16 RX2 User’s Guide... - Page 34 Index RX2 User’s Guide E-EQ-RX2OGWW-B...
