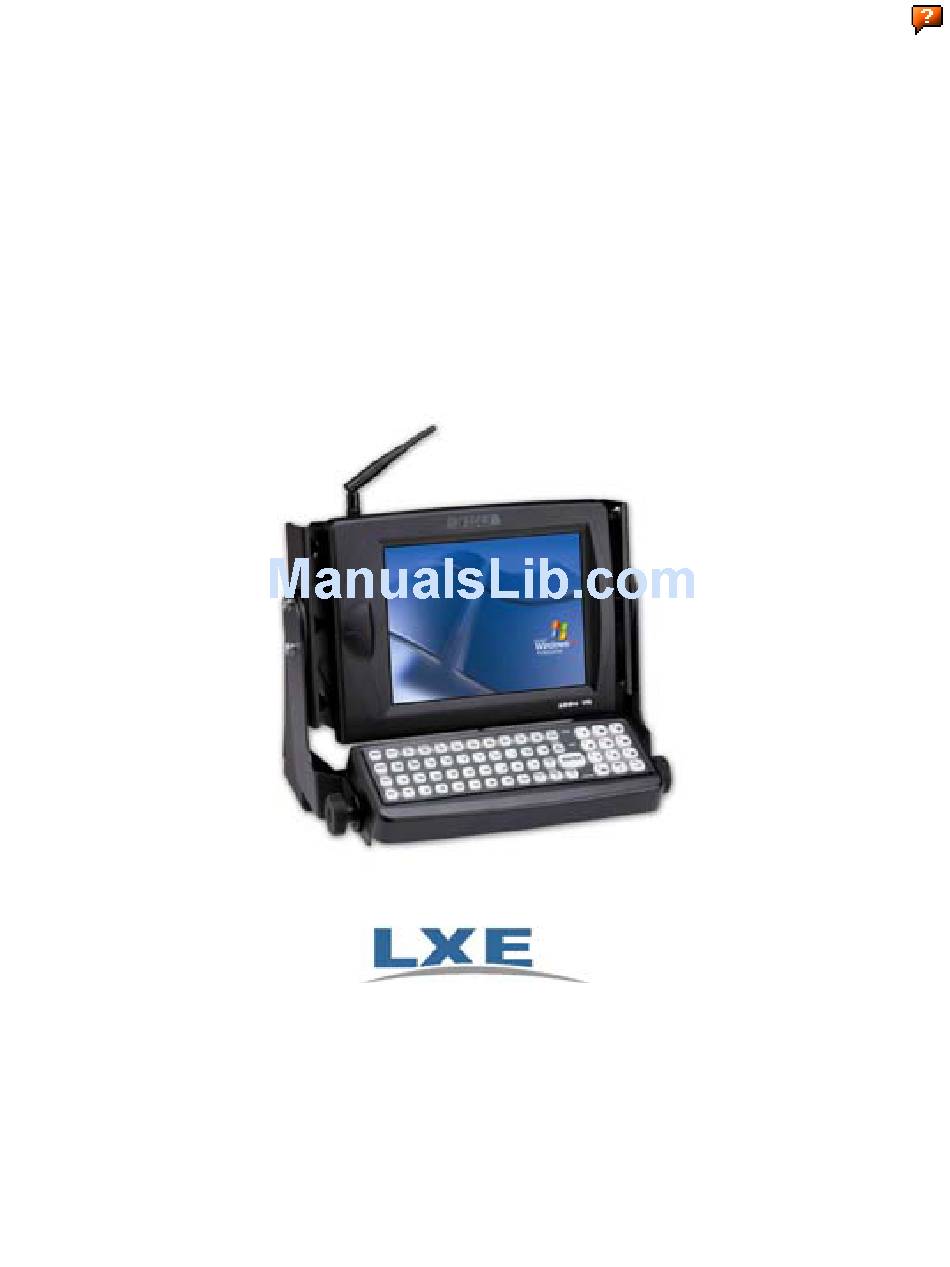

VX4 User's Guide
®
®
(For Microsoft
Windows
98, 2000 or XP Equipped VX4)
IMPORTANT NOTICE
LXE's VX4 is obsolete. This electronic manual has been made available as a
courtesy to LXE's VX4 customers. Please contact your LXE customer support
representative for assistance.
Copyright © December 2005 by LXE Inc.
All Rights Reserved
VX4A136OPGDWW
E-EQ-VX4OGWW-H-ARC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LXE VX4

  • Page 1 Windows 98, 2000 or XP Equipped VX4) IMPORTANT NOTICE LXE’s VX4 is obsolete. This electronic manual has been made available as a courtesy to LXE’s VX4 customers. Please contact your LXE customer support representative for assistance. Copyright © December 2005 by LXE Inc.
  • Page 2 Notice: LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information contained herein.
  • Page 3 VX4 User’s Guide Upgrade From Revision G to Revision H Rev. Section Explanation Entire Manual Manual name changed to “VX4 User’s Guide”. The VX4 Vehicle Mount Revised “Introduction” and “Environmental Specifications” sections. Computer Added “General Windows Keyboard Shortcuts”. Installation Revised “Connect Antenna” section.
  • Page 5: Table Of Contents

    The Keyboards ......................7 The QWERTY Keyboard ......................7 General Windows Keyboard Shortcuts ..................8 Key Maps..........................9 Unused Key Functions ......................9 NumLock and the VX4 ......................9 Keyboard Backlight ........................9 Keyboard LEDs ........................10 CAPS LED ...........................10 Secondary Keys LED ......................11 Status LED ...........................11 Control Keys...........................12...
  • Page 6 Table of Contents Step 2 - Connect VX4 To Back Mounting Bracket.............23 Step 3 - Attach VX4 In Bracket Assembly To Bottom Mounting Bracket......24 VMT Remote Keyboard Bracket Assembly................26 VMT Remote Keyboard Mounting Dimensions ..............27 VMT Integrated Keyboard Bracket Assembly ...............28 Connect Keyboard ....................
  • Page 7 Table of Contents PPENDIX Standard Keypad ....................53 Key Map 101-Key Equivalencies................54 TN3270 Terminal Emulator Keypad ............... 59 TN5250 Terminal Emulator Keypad ............... 59 PPENDIX EGULATORY OTICES AND AFETY NFORMATION Approvals ........................ 63 NDEX E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 8 Figure 7 The Secondary Key ..........................11 Figure 8 The Resume/Suspend Key........................11 Figure 9 The VMT Keyboard Display Controls ....................12 Figure 10 VX4 Bracket - Mounting Dimensions (Not To Scale) ..............18 Figure 11 Suggested Mounting Positions ......................18 Figure 12 Torque Measurements ........................19 Figure 13 Strain Relief Cable Clamp Locations ....................20...
  • Page 9: The Vx4 Vehicle Mount Computer

    VX4D Reference Guide These documents are available on the LXE Manuals CD-ROM. This document is directed towards the daily user of a VX4 equipped with the Windows 98, 2000 or XP operating system. The “VX4 Reference Guide” contains technical information and advanced functions specific to the VX4 equipped with the Windows operating systems listed above.
  • Page 10: Document Conventions

    Keyword that indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. DANGER Keyword that indicates an imminent hazardous situation, which, if not avoided, will result in death or serious injury. VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 11: Environmental Specifications

    -13°F to 158°F (-25°C to 70°C) [non-condensing] version Water, Sand Dust IP66 per IEC60529 Operating Humidity Up to 90% non-condensing at 104°F (40°C) Vibration Based on MIL Std 810D 15 kV Shock 75G, 5ms duration, 100 shock impacts E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 12: Quick Start

    (e.g. antenna, external keyboard and/or barcode scanner) and a power source. Use this guide as you would any other source book -- reading portions to learn about the VX4, and then referring to it when you need more information about a particular subject. This guide takes you through installation and operation of the LXE VX4.
  • Page 13: Components

    Figure 1 VX4 Components The Ethernet connector is optional. It is not present on all VX4’s. COM1 is configured with Pin 9 +5V. COM2 is configured with Pin 9 RI. Refer to the VX4 Reference Guide, Chapter 4, “System Configuration” for more information.
  • Page 14: The Full-Screen Display

    The Full-Screen Display The Full-Screen Display The VX4 Display is a TFT color unit capable of supporting VGA and SVGA graphics modes. The maximum display size is 800 x 600 pixels. Microsoft Windows Control Panel The Microsoft Windows Control Panel and System Tray icons panel provide standard Windows options for configuring the VX4, such as: •...
  • Page 15: The Keyboards

    Storm VMT Keyboard Installation These documents are available on the LXE Manuals CD. The LXE VMT keyboard is a customized keyboard, connected to the VX4 with a keyed watertight connector. The LXE VMT keyboard features a 60 key keyboard. The keyboard backlight is controlled manually.
  • Page 16: General Windows Keyboard Shortcuts

    The Keyboards General Windows Keyboard Shortcuts Use the keyboard shortcuts in the chart below to navigate the LXE VMT keyboard. These are standard keyboard shortcuts for Windows applications. Press these keys … To … CTRL + C Copy CTRL + X...
  • Page 17: Key Maps

    The keyboard supports all 101 keyboard functions. However, because the keyboard only has 60 keys, all functions are not visible (or printed on the keyboard). Therefore the VX4 keyboard supports what is called hidden keys -- keys that are accessible but not visible on the keyboard.
  • Page 18: Keyboard Leds

    The Keyboards Keyboard LEDs The VX4 keyboard has three (3) LED indicators. 1. CapsLock Mode LED Indicator 2. Secondary Mode LED Indicator 3. Status LED Indicator Figure 5 Keyboard LEDs CAPS LED This LED indicates the state of the keyboard CapsLock mode. If CapsLock is enabled this LED is illuminated green.
  • Page 19: Secondary Keys Led

    This LED should not be lit when power is disconnected from the VX4. The Resume/Suspend key has no effect on a VX4. All power management is controlled by Microsoft Windows. Windows Power Management contains options to set the display timer, hard disk timer and standby timer.
  • Page 20: Control Keys

    The Keyboards Control Keys The VMT keyboard has several control keys. Because of the construction of the VX4 and the Microsoft Windows operating system, many of the Control Keys are not used on the VX4. Note: The <F4>, <F5>, <F6>, and <F7> keys have no function as the VX4 has TFT LCD screen with no provision for contrast or brightness adjustments.
  • Page 21: Power Supply

    Power Supply Power Supply Vehicle power input for the VX4 is 12V to 60V DC and is accepted without the need to perform any manual adjustments within the VX4. See the section titled “Installation”, sub-section titled “Vehicle 12-60V DC Direct Connection.”...
  • Page 22: Getting Help

    LXE website. Contact your LXE representative to obtain the LXE Manuals CD. You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD, in the file titled “Contacting LXE”. This information is also available on the LXE website www.lxe.com.
  • Page 23 Manuals and Accessories Miscellaneous Pen, passive, touch 9000A501PASSIVEPEN VX4 System Tools CD VX4A476DRIVERS Remote Antenna Assembly 1300A276ANTREMOTE Hard Drives 1GB PCMCIA Drive ATA, Flash, Solid State 9000A226HDD1GBPCMCIA 1GB PCMCIA Drive ATA, Low Temp, Solid State 9000A227HDD1GBLT 512MB PCMCIA Drive ATA, Low Temp, Solid State...
  • Page 24 Manuals and Accessories VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 25: Installation

    (5.64±.56 N/m). Note: Torquing tool is not supplied by LXE. Bolts, washers, and wrench needed when attaching the bottom mounting bracket to the vehicle are not supplied by LXE. Before installation begins, verify you have the following vehicle mounting bracket assembly...
  • Page 26: Mounting Dimensions

    7. 0.18 in / 4.5 mm 8. 0.88 in / 22.3 mm 9. 1.25 in / 31.75 mm Figure 10 VX4 Bracket - Mounting Dimensions (Not To Scale) Mounting Positions Figure 11 Suggested Mounting Positions Viewing angle is 45° to both sides of the bottom mounting bracket.
  • Page 27: Torque Measurements

    You will need a torquing tool capable of torquing to 50 inch pounds (5.64±.56 N/m). Torque pan head screws to 16.0±1 in/lb (1.8±.11 N/m) when assembling the back mounting bracket to the VX4. Torque ¼ bolts to 50.0±5 in/lb (5.64±.56 N/m) when assembling the bottom mounting bracket to the back mounting bracket.
  • Page 28: Cable Retention Assembly

    Before beginning the vehicle mounting bracket assembly, attach the cable ties to the VX4 and the back mounting bracket as shown in the following figures. Use the cable ties to secure the power cable and RS-232 cables to the VX4 after it has been mounted to the vehicle.
  • Page 29: Connect Cable Ties To Back Mounting Bracket

    Figure 14 Cable Ties on Back Mounting Bracket Assembly Slide the pointed end of the cable tie through the top opening in the push mount. Snap the push mount through the top hole and toward the VX4 as shown in the above figure.
  • Page 30: Procedure

    IMPORTANT: Mount to the most rigid surface available. Figure 15 Connect Bottom Bracket to Vehicle After the bottom bracket has been attached to a rigid, horizontal surface, you are ready to assemble the VX4 bracket configuration. VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 31: Step 2 - Connect Vx4 To Back Mounting Bracket

    Insert a pan head screw into each of six holes. Torque the screws to 16±1 in/lb (1.8±.11 N/m). Figure 17 VX4 Connected to Back Bracket Now you are ready to attach the VX4 in the bracket assembly to the vehicle. E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 32: Step 3 - Attach Vx4 In Bracket Assembly To Bottom Mounting Bracket

    Do not torque bolts until all bolts are in place and viewing angle is adjusted. Loosen the hex bolts on both sides to adjust the viewing angle of the mounted VX4. Torque the hex bolts to 50±5 in/lb (5.64±.56 N/m).
  • Page 33: Figure 19 Vx4 In Vehicle Bracket

    Install Mounting Brackets Figure 19 VX4 in Vehicle Bracket E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 34: Vmt Remote Keyboard Bracket Assembly

    Attach the keyboard-bracket assembly to the vehicle’s mounting surface using four 1/4 bolts or equivalent. Note: Bolts, washers, and wrench needed when attaching the bracket to the vehicle are not supplied by LXE. IMPORTANT: Mount to the most rigid surface available. VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 35: Vmt Remote Keyboard Mounting Dimensions

    9. 1.1 inch / 27.7 mm 10. 4.0 inch / 101.6 mm 11. 0.3 inch / 7.6 mm 12. 2.9 inch / 72.6 mm 13. 11.9 inch / 302.0 mm Figure 21 VMT Remote Keyboard - Mounting Dimensions E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 36: Vmt Integrated Keyboard Bracket Assembly

    Assemble the Keyboard (4) to the Keyboard Bracket (5) with the #10-32 screws and washers. Tighten screws to 9 +/- 1 in/lb (1.02 N/m). Assemble Keyboard and Bracket to Keyboard Arms using the Adjustment Knobs (6). VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 37: Figure 23 Cable Tie Holders And Cable Hooks

    Insert cable ties into the Tie Wrap holders (8) on the bottom of the Keyboard Bracket. Wrap excess cable length under the Keyboard Bracket on the Cable Hooks (9). Secure entering and exiting cable with cable ties and cable tie holders. E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 38: Figure 24 Assembled Vmt Integrated Keyboard Bracket

    Install Mounting Brackets Figure 24 Assembled VMT Integrated Keyboard Bracket VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 39: Connect Keyboard

    Figure 25 Keyboard Connection Location and Keyboard 1. Turn the VX4 off before attaching the keyboard cable. 2. Insert the keyboard cable into the VX4 keyboard connector, aligning the groove on top of the cable with the notch at the top of the VX4 connector.
  • Page 40: Connect Antenna

    VX4’s equipped with a radio require an external antenna. A VX4 without a radio does not use an antenna. Some VX4’s may be equipped with a dual antenna option. For these VX4’s, an external antenna must be connected to each antenna connector.
  • Page 41: Connect Serial Barcode Scanner

    “Laser Barcode Scanner Warnings.” Pin 9 of COM1 is configured to provide +5V. Pin 9 of COM2 is configured to provide RI. To change Pin 9 of either port, please refer to Chapter 4, “System Configuration” in the “VX4 Reference Guide”.
  • Page 42: Figure 28 Vx4 With Generic Barcode Scanner Attached

    Connect Serial Barcode Scanner When you have finished using the scanner, remove it from the VX4 and store the scanner in a closed container or bag. Figure 28 VX4 with Generic Barcode Scanner Attached 1. Good Scan LED (or equivalent) 2.
  • Page 43: Connect Serial Printer Or Pc

    Pin 9 of COM1 is configured to provide +5V. Pin 9 of COM2 is configured to provide RI. To change Pin 9 of either port, please refer to Chapter 4, “System Configuration” in the “VX4 Reference Guide”. The printer or PC cable requires a nine-pin D-shell female connector for the VX4.
  • Page 44: Connect Usb Devices

    Connect USB Devices Connect USB Devices The VX4 provides a USB port via an adapter cable attached to the connector marked “USB” . Figure 31 Connect USB Adapter Cable Insert the watertight-connector end of the USB adapter cable into the VX4 USB connector, aligning the groove on top of the cable with the notch at the top of the VX4 connector.
  • Page 45: Connect External Headset

    Connect External Headset Connect External Headset The VX4 provides an external headset connection via an audio jack connector marked “Audio” . Note: The audio port is configured for the LXE supplied headset ONLY. Off-the-shelf PC speakers and headphones do not use the same pinout.
  • Page 46: Connect Ethernet Cable

    The Ethernet connector is optional. It is not present on all VX4’s. The optional RJ-45 Ethernet connector is located on the top of the VX4, near the antenna connector. The VX4 Ethernet connector accepts standard RJ-45 Ethernet cable (not included), the same as any PCs on the network.
  • Page 47: Connect Power Cable

    Connect Power Cable Connect Power Cable Turn the VX4 off before attaching the power plug. Connect the power cable to vehicle power (See the following section titled “Vehicle 12-60VDC Direct Connection.”) - or - to an AC adapter. (See the following section titled “External Power Supply.”).
  • Page 48: External Power Supply, Optional

    External Power Supply, Optional External Power Supply, Optional The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum ambient temperature environment. 1. AC Input Cable 2. DC Output Cable Figure 36 Optional Power Configuration In North America, this unit is intended for use with a UL Listed ITE power supply with output rated 12 –...
  • Page 49: Vehicle 12-60Vdc Direct Connection

    Correct electrical polarity is required for safe and proper installation. Connecting the cable to the VX4 with the polarity reversed will cause the VX4’s fuse to be blown. See the following figure titled “Vehicle Connection Wiring Color Codes” for additional wire color-coding specifics.
  • Page 50: Figure 39 Vehicle Connection Wiring Color Codes

    Green Figure 39 Vehicle Connection Wiring Color Codes Note: LXE’s VX4 accepts a wide DC input voltage range. Do not connect the VX4 input power cable to any other LXE computer or damage to that computer may occur. VX4 User’s Guide...
  • Page 51 Connect the cable to the VX4 by aligning the water-tight connector pins to the power connector; push down on the water-tight connector and twist it to fasten securely.
  • Page 52: Fuse Replacement For The Vx4

    Fuse Replacement for the VX4 Fuse Replacement for the VX4 The VX4 uses a 125V, 5A time delay (slow blow), high current interrupting rating fuse that is externally accessible and user replaceable. Should it need replacement, replace with same size, rating and type of fuse -- Bussman Type GMC-5 (5x20mm).
  • Page 53: Operation

    The power (on/off) switch is a toggle switch located on the bottom of the VX4. The switch is sealed by a rubber boot seal. The Status LED on the LXE VMT keyboard is lit when the power is You are now ready to use the computer.
  • Page 54: Reset Key Sequence (Reboot)

    When the system is rebooted, the current contents of RAM are lost. Save any needed data and exit in an orderly fashion from any running programs before rebooting. When the VX4 is turned on or rebooted, the following settings are restored from flash memory and are configured using BIOS Setup.
  • Page 55: Display And Touchscreen

    Always use the point of the stylus for tapping or making strokes on the display. Never use an actual pen, pencil or sharp object to write on the touch screen. An extra or replacement stylus may be ordered from LXE. See the “Accessories” section for the stylus part number.
  • Page 56: Adjust Speaker Volume

    Microsoft Windows Event Sounds The VX4 CD contains WAV files that may be preferable to standard Microsoft Windows sounds when using the internal speaker. For more information on changing the sounds used in Windows, please refer to the Windows help feature.
  • Page 57: Power Management

    Power Management icon. Figure 42 Microsoft Windows Power Management For more information on configuring Microsoft Windows Power Management, please refer to the Windows Help feature. The Power Management defaults for the VX4 are: System standby Never Turn off monitor...
  • Page 58: Laser Barcode Scanner Warnings

    Use a clean, damp, lint-free cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled. Lint/particulates can be removed with clean, filtered canned air. VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 59: Enter Data

    The keyboard is used to manually input data that is not collected otherwise. Almost any function that a full sized computer keyboard can provide is duplicated on the LXE VMT keyboard but it may take a few more keystrokes to accomplish a keyed task.
  • Page 60: Scanner Entry

    Scanner Entry The following section is directed toward a generic tethered scanner connected to the COM1 serial port on the VX4. Aiming the Barcode Scanner Aim the scanner away from you, direct it at the barcode and press the trigger to scan.
  • Page 61: Appendixa Key Maps

    Standard Keypad Figure 46 VMT QWERTY Keyboard The key map table that follows lists the commands used when running LXE’s ANSI Plus (with 2.4GHz radio), LDS Plus (with 2.4GHz radio) Terminal Emulation (TE) or RFTerm programs. When running these programs please refer to the following terminal emulation reference guides for equivalent keys and keypress sequences: •...
  • Page 62: Key Map 101-Key Equivalencies

    The Volume Control keys have no function as the volume is not adjustable on the VX4D. The Keyboard Backlight key is used in <2 > + <CTRL> + <F10> key sequence. Refer to “VMT Keyboard Backlighting” in Chapter 4, “System Configuration”. The Suspend/Resume key has no function. VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 63 Left Arrow Insert Ins/BkSp Delete (numeric) Home Left Arrow Right Arrow Page Up Up Arrow Page Down Down Arrow Right Shift Right Alt Right Ctrl ScrollLock NumLock Press <Ctrl> then <2 > then <F2> to produce Ctrl-Break. E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 64 Key Map 101-Key Equivalencies Press These Keys and Then To get this key Press this key Shift Ctrl CapsLock VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 65 8 (NumLock On) 8 (numeric) 8 (NumLock Off) 9 (numeric) 9 (NumLock On) 9 (numeric) 9 (NumLock Off) 0 (numeric) 0 (NumLock On) 0 (numeric) 0 (NumLock Off) DOT (numeric) DOT (NumLock DOT (numeric) DOT (NumLock Off) < E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 66 Press this key Shift Ctrl CapsLock > / (numeric) / (alpha) - (numeric) - (alpha) + (numeric) + (alpha) * (numeric) * (alpha) : (colon) ; (semicolon) _ (underscore) , (comma) ‘ (apostrophe) ~ (tilde) “ & VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 67: Tn3270 Terminal Emulator Keypad

    This keypad is designed to allow the user to enter terminal emulator commands when running LXE’s TN3270 Terminal Emulation (TE) programs. When running these programs please refer to the following terminal emulation reference guides for equivalent keys and keypress sequences: •...
  • Page 68 TN5250 Terminal Emulator Keypad VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 69: Appendixb Regulatoryn

    Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s authority to operate this equipment.
  • Page 70 A label on the exterior of the device should resemble one of the labels shown below (the label contains the LXE part number of the installed radio card). The labels shown below and affixed to the device, identify where the device may be used and where its use is restricted. Use of a device is prohibited in countries not listed below or otherwise identified by the label.
  • Page 71: Approvals

    RF Standards Notes FCC Part 15, Subpart C Unlicensed Operation 480824-3300 (LXE Part No.) FCC Part 2 LXE 6400 System 2.4GHz Type II ETS 300 328 Unlicensed Operation PCMCIA Card ETS 300 826 IC-RSS 210 Requires License for Outdoor Use IC-RSS 102 480628-4096 (LXE Part No.)
  • Page 72 Safety of information technology equipment, including electrical business + Amendments equipment A1..A4 We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Place: LXE Inc., Norcross GA USA...
  • Page 73 Safety of information technology equipment, including electrical business equipment + Amendments A1..A4 We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Signed: Place: LXE Inc., Norcross GA USA R.
  • Page 74 Safety of information technology equipment, including electrical business + Amendments equipment A1..A4 We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Place: LXE Inc., Norcross GA USA...
  • Page 75 EN 60950-2: 1992 + A1..A4 Safety of information technology equipment, including electrical business equipment We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Place LXE Inc., Norcross GA USA...
  • Page 76 With regard to the use of external antennas The LXE 6726 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 6726 pursuant to ETSI EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 6726 transceiver.
  • Page 77 EN60950-1: 2001 business equipment The product carries the CE Mark: We, LXE Inc., declare that the equipment specified above complies with all Essential Health and Safety Requirements of the above Directives and Standards, as amended. Date of issue: June 18, 2003 Cyril A.
  • Page 78 With regard to the use of external antennas The LXE 6816 can be equipped with external antennas. The antennas listed have been assessed with the LXE 6816 pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’. The table below lists the maximum output power setting for the radio module in order to result in a total EIRP of 100mW or less.
  • Page 79: Lithium Battery Safety Statement

    Pila de litio adentro. Peligro de explosión si la pila se reemplaza incorrectamente. Reemplace solamente con el mismo tipo o equivalente recomendado por el fabricante. (ES) Oppassen: Bevat Lithium-batterij. Incorrrecte plaatsing van batterij kan leiden tot explosiegevaar. Alleen vervangen door hetzelfde of door fabrikant aanbevolen gelijkwaardig type. (NL) E-EQ-VX4OGWW-H-ARC VX4 User’s Guide...
  • Page 80 Regulatory Notices Lithium Battery Safety Statement (KR) (GR) (CN) (JP) Dikkat: (TR) Legend: Chinese Italian Danish Japanese Dutch Korean English Norwegian Finnish Portuguese French Spanish German Swedish Greek Turkish VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
  • Page 81 Regulatory Notices A/C Power Supply Safety Statement – VX4 Output Rated 12 – 60 VDC, Minimum 3.5 A. The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum ambient temperature environment. Optional A/C Power Supply: Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as stated at the top of this page.
  • Page 82: Vehicle Power Supply Connection Safety Statement

    Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT; Norwegian – NO; Portuguese – PT; Spanish – ES; Swedish – SE; Turkish – TR. Updated 10/01/2001 VX4 User’s Guide E-EQ-VX4OGWW-H-ARC...
