Valve Button

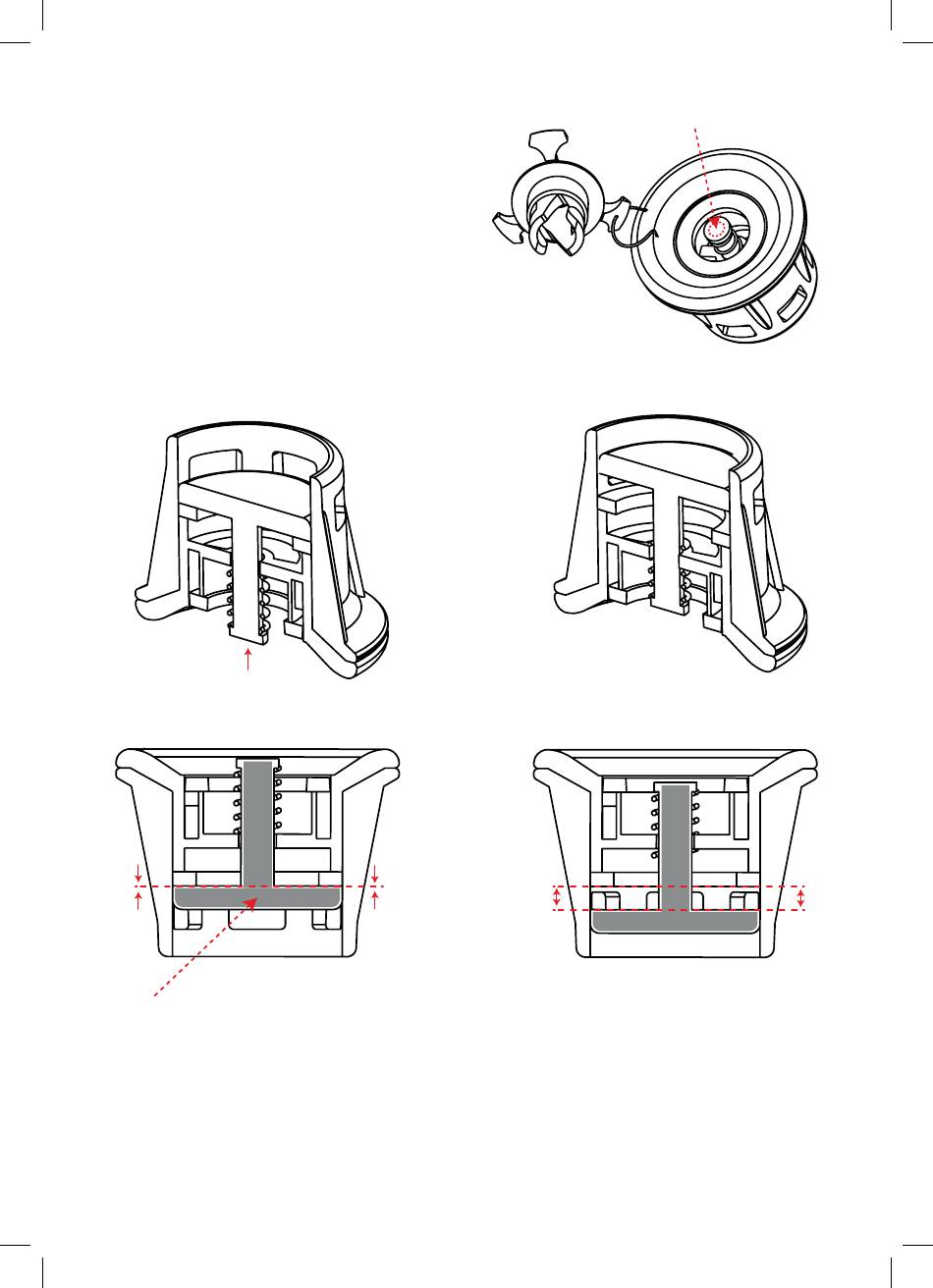

HOW THE VALVE WORKS:
Depressing the spring loaded button as
highlighted will both open and close the
valve alternately per press. The diagrams
as below highlight how it works
Closed position Open position
Direction of press
Flow are when in closed position Flow area when in open position
Moving part of valve
