HydroShield
Conversion Kit

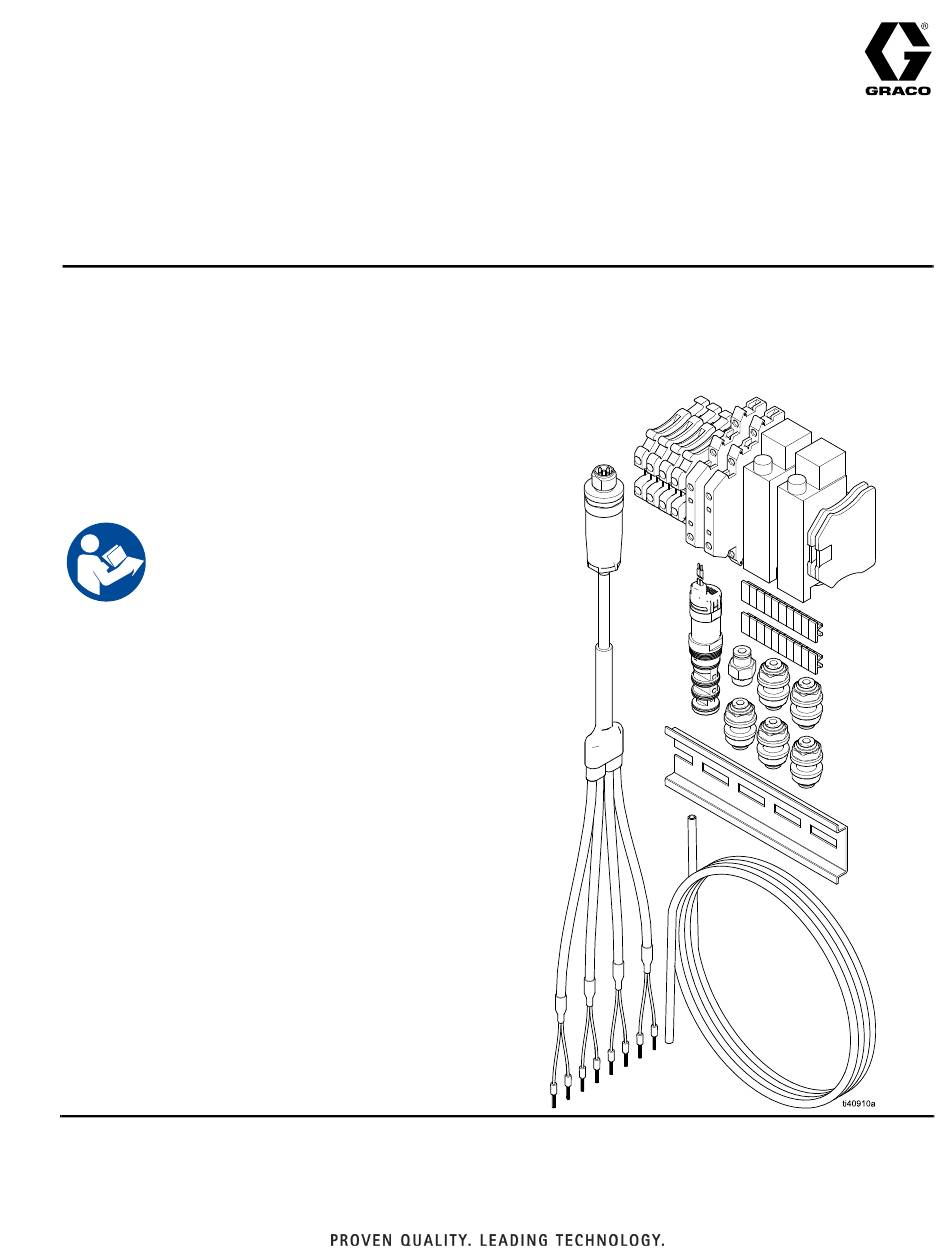

Add automatic applicator capability to a manual HydroShield system. For professional use
only.
Model 26D030
100 psi (0.7 MPa, 7.0 bar) Maximum Air Working
Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual and in the related manuals
before using the equipment. Save all
instructions.
™
Auto
3A8812B
EN
Advertisement
Table of Contents
Related Manuals for Graco HydroShield 26D030
Summary of Contents for Graco HydroShield 26D030
- Page 1 Accessory ™ HydroShield Auto Conversion Kit 3A8812B Add automatic applicator capability to a manual HydroShield system. For professional use only. Model 26D030 100 psi (0.7 MPa, 7.0 bar) Maximum Air Working Pressure Important Safety Instructions Read all warnings and instructions in this manual and in the related manuals before using the equipment.
-
Page 2: Table Of Contents
Install Bulkhead Fittings....5 Graco Standard Warranty....14 Connect Pneumatic Components . -
Page 3: Overview
Overview Overview Connection Location and Components Automatic isolation systems need input and output connections inside the isolation cabinet to send and Components are associated with input and output receive automatic signals. functions. Paint Trigger Input (PTI): The system relies on a On the side of the cabinet pneumatic paint trigger signal to know when to dispense paint or start the refill process. -
Page 4: Installation
Installation Installation WARNING gun flush box capabilities. See bulkhead locations in . 5. NOTE: Converted systems that had gun flush box ELECTRIC SHOCK HAZARD capabilities will have a fourth pressure switch that will no longer be used. Servicing the isolation cabinet requires access to parts which may cause electric shock or other Install Electronics Control Panel serious injury if work is not performed properly. -
Page 5: Install Bulkhead Fittings
Installation Upper DIN Rail Lower DIN Rail . 2 Manifold components Install Bulkhead Fittings Remove hole plugs as needed, and install bulkhead fittings inside the isolation cabinet. Electronics Control Panel Bulkhead Fittings 1. Install two bulkhead fittings to the bottom of the electronics control panel in the following order (see . -
Page 6: Connect Pneumatic Components
Installation Isolation Cabinet Bulkhead Fittings Connect Bulkhead Fittings 1. Install three bulkhead fittings on the right side of the Connect the following bulkhead fittings inside the isolation cabinet as shown in F . 5. isolation cabinet. Use 5/32 in. bulkhead tubing (10). EEO bulkhead fitting (J) 1. -
Page 7: Connect Electrical Components
Installation Connect Electrical Components Use the Electrical Schematic on page 8 to make the following electrical connections inside the electronics control panel. 1. Connect the cable (1) to port 2 on the GCA FCM. 2. Connect the other wire ends to the proper components. -
Page 8: Electrical Schematic
Electrical Schematic Electrical Schematic 3A8812B... -
Page 9: Connect Input/Output (I/O) Signals
Connect Input/Output (I/O) Signals Connect Input/Output (I/O) Signals Electric ERI Option Connect the isolation cabinet to system components to send and receive automatic signals. See Overview, 1. Run a 24 VDC signal wire and a ground wire page 3. through the I/O strain relief ports on the right side of the system. -
Page 10: Wire Lpo Optocoupler
5. Connect terminal block 12 (C12) to the ground wire. A1+ (relative to NOTE: Terminal block 11 (C11) signal voltage is Function A2–) optically isolated at Graco electrostatic controllers. If using any other controller be sure to use an Low Paint Output 24 VDC 13+ and 14 optocoupler at the input to the device. -
Page 11: Setup Software And Controls
Setup Software and Controls Setup Software and Label the Cabinet Controls Apply conversion label (19) to the cabinet. Always follow all the instructions in your system manuals before and after installing the conversion kit. See Related Manuals, page 2. 1. Follow the software update instructions in the system manual. -
Page 12: Parts
Parts Parts Model 26D030 3A8812B... - Page 13 Parts Model 26D030 Ref. Part No. Description Qty. 19Y758 cable splitter, leads m12-5p 16P316 solenoid valve (includes 112512 ferrule wire (orange) male connector fitting – (includes FF) 24Z226 optocoupler terminal block (includes A and B) 19B745 pressure switch (includes D and E) 121818 bulkhead fitting, fits 5/32 in.
-
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
