Tigo TSI-6K3DTSI-10K3D Quick Start Manual

1. General Information - Specifications
ATTENTION - READ FIRST
!
1. This document is for general guidance only. Refer to the Energy Intelligence (EI) Inverter
Installation & Operations Manual for more detail.
2. Before installing the system, verify that the package contents are intact and complete as
per the packing list. Contact your dealer if there is equipment damage or missing
components.
ATTENTION - Use the appropriate QSG's to perform the physical
!
installation of the EI system in the following order:
1. EI Battery
2. EI Inverter
3. EI Link
4. EI BMS

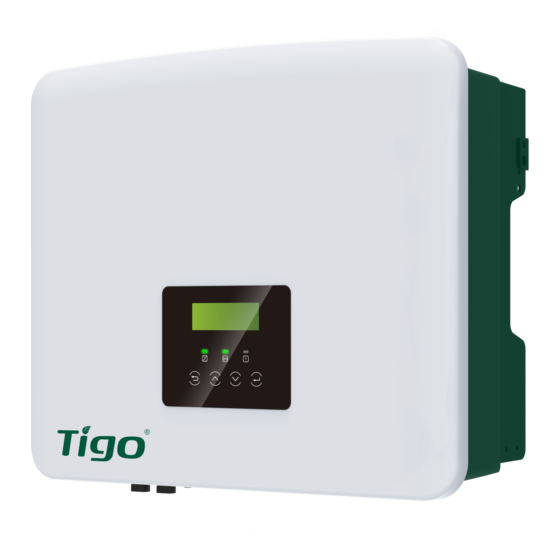

1.2 EI Inverter Overview
BAT
2 3 4 5
1. LCD Screen
2. Grounding cable
3. PV1 + & -
4. PV2 + & -
1.1 Package Contents
Index Item
1 Three Phase EI Inverter
2 Inverter mounting bracket
3 Wall anchor, washer, lag bolt
4 M5 hex screw
5 Waterproof RJ-45 connector
6 RJ 45 terminals
7 Battery power cable connector
8 Safety manual
9 Quick installation guide
1
COM BMS CT
CAN1 CAN2 DRM OFF
6 7 8 9 10 11 12
5. BAT + & - 9. BMS
6. USB Update 10. DRM
7. COM 11. CT
8. CAN1 / CAN2 12. Grid and EPS
1.3 Installation Requirements
NOTE: Do NOT install the EI inverter in direct sun, rain or snow.
Quantity
1
5°
1
3
1
1
3
2
1
1
1.4 Wiring Diagram
Grid
Load
T S R N G T S
N
G
Main Panel
Three Phase EI Inverter
Quick Start Guide - TSI-6K3DTSI-10K3D/TSI-15K3D
≥300mm
≥300mm
≥500mm
EI Inverter
Grid
EPS
EI Link
EPS(Inv)
Grid(Inv)
N N G
R N T S R T S R
Pg 1 of 4
≥300mm
Grid
Meter
N
G
Main Breaker
PN: 002-00108-00 | REV 2.0 | Oct. 20, 2022
