Tigo TSI-3K1D Quick Start Manual

1. General Information - Specifications

ATTENTION - READ FIRST
!
1. This document is for general guidance only. Refer to the Energy Intelligence (EI) Inverter
Installation & Operations Manual for more detail.
2. Before installing the system, verify that the package contents are intact and complete as
per the packing list. Contact your dealer if there is equipment damage or missing
components.
ATTENTION - Use the appropriate QSG's to perform the physical
!
installation of the EI system in the following order:
1. EI Battery
2. EI Inverter
3. EI Link
4. EI BMS

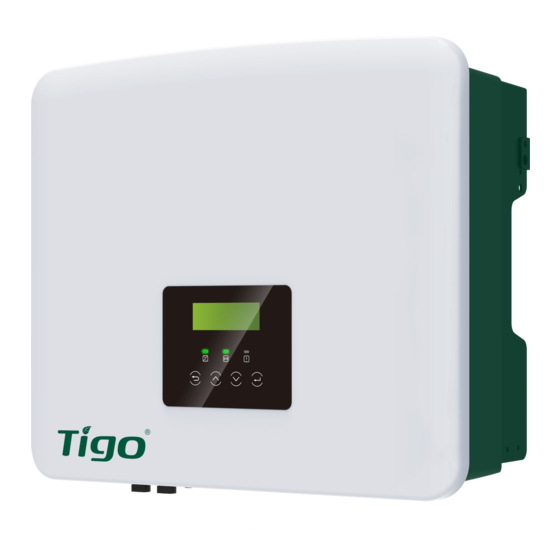

1.2 EI Inverter Overview

BAT
2 3 4 5
1. LCD Screen
2. Grounding cable
3. PV1 + & -
4. PV2 + & -

1.1 Package Contents

Index Item
1 Single phase EI hybrid inverter
2 Wall mounting bracket
3 Wall anchor, washer, lag bolt
4 M5 inner hex screw
5 Waterproof RJ45 connector (spare)
6 Safety manual
7 Quick installation guide
8 Battery Charging Cable Connector
1
6 7 8 9 10 11 12
5. BAT + & - 9. CT
6. USB Update 10. COM
7. BMS 11. Grid
8. DRM (not used) 12. EPS

1.3 Installation Requirements

NOTE: Do NOT install the EI inverter in direct sun, rain or snow.
Quantity
1
5°
1
3
1
2
1
1
2

1.4 Wiring Diagram

Load
L N
N
G
Main Panel
Single Phase EI Inverter
Quick Start Guide - TSI-3K1D/TSI-6K1D
≥300mm
≥300mm
≥500mm
EI Inverter
Grid EPS
EI Link
Grid EPS(Inv) Grid(Inv)
L 7 8
G N 9 10 11
Meter Meter
N
Main Breaker
Pg 1 of 4
≥300mm
Grid Grid
G
PN: 002-00107-00 | REV 2.0 | Oct. 21, 2022
