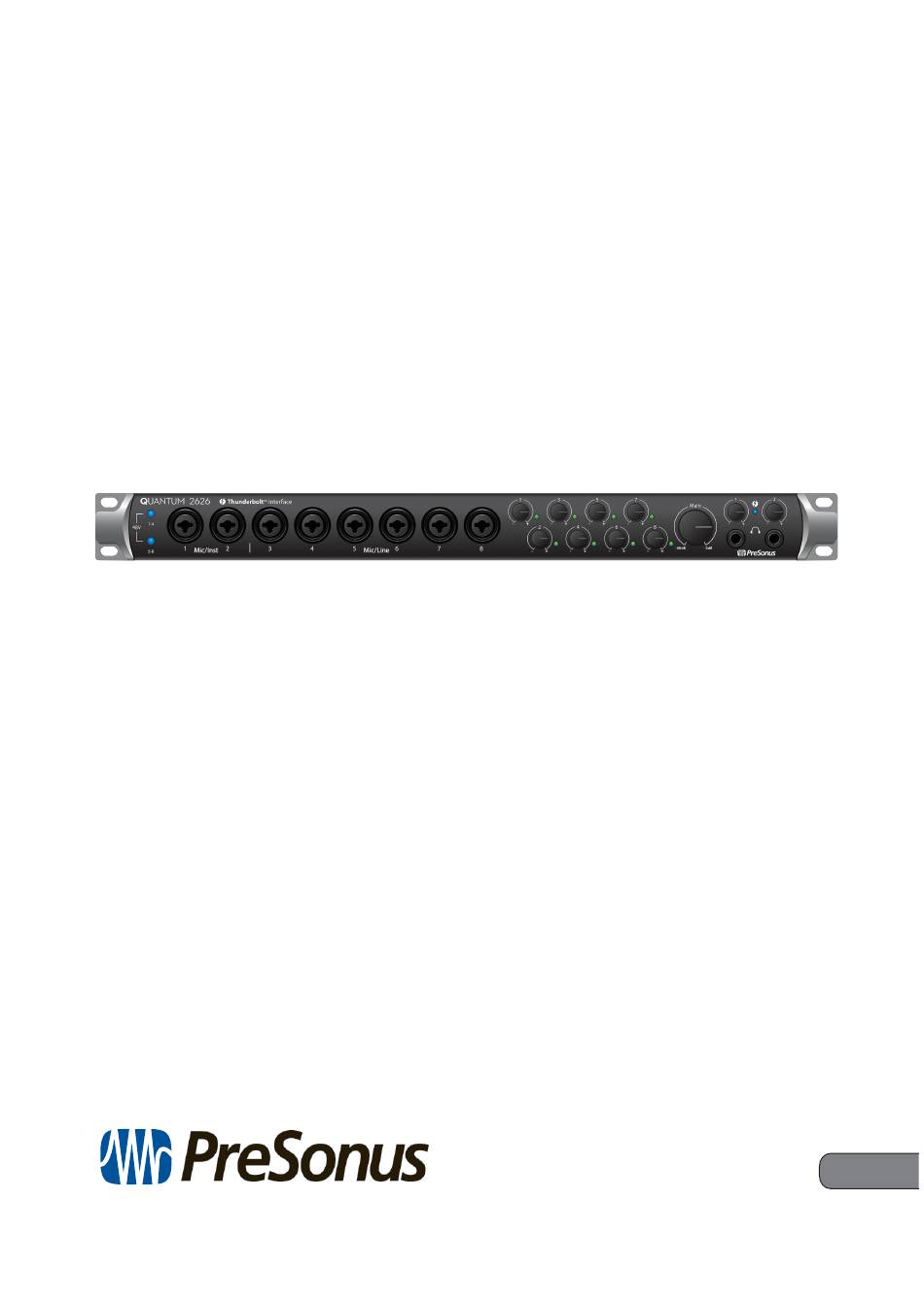

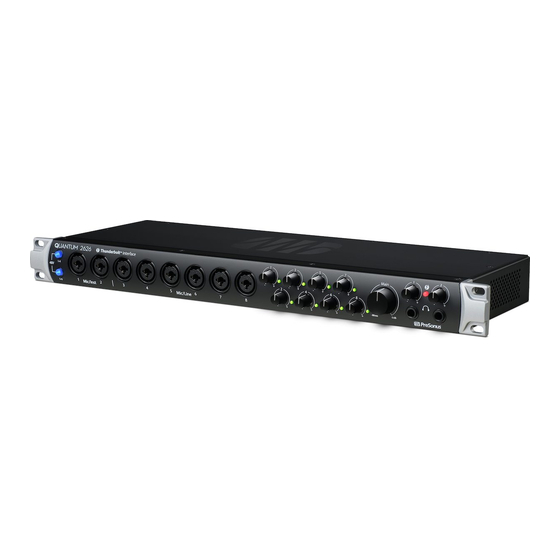

  • Page 1 Quantum 2626 Quantum 26x26 Thunderbolt 3 Audio Interface ™ Quantum 26x26 Thunderbolt™ 3 音频接口 Owner’s Manual 用户手册 ® English www.presonus.com...

  • Page 2: Table Of Contents

    TableofContents目录内容 Aggregating Devices— 15 macOS 系统 — 15 Overview 概述 — 1 Windows 系统 — 18 Introduction 简介 — 1 6 StudioOneArtistQuickStart Companion Products 配套产品 — 2 快速入门 — 20 Studio One Artist Features Studio OneArtist功 能 — 2 Installation and Authorization 安装与授权 — 20 What is in the Box 包装里有什么...

  • Page 3: Overview 概述

    Introduction Overview 概述 Introduction 简介 Thankyoufor purchasing a PreSonus Quantum 2626 Thunderbolt 3 Audio Interface. PreSonusAudio Electronics has designed the Quantum 2626 series interface utilizing high-grade components to ensure optimum performance that will last a lifetime. Loaded with high-headroom, Class A XMAX™...

  • Page 4: Companion Products 配套产品

    Companion Products Companion Products 配套产品 Thanks for choosing PreSonus! As a solutions company, we believe the best way to take care of our customers (that’s you) is to ensure that you have the best possible experience from the beginning of your signal chain to the end.Toachieve this goal, we’ve prioritized seamless integration throughout every design phase of these...
  • Page 5 Quantum 2626 Overview • Cue Mix provides complete integrated control over all Quantum functions • Unlimited track count, inserts, andsends • 20 high-quality, Native Effects™ plug-ins; amp modeling (Ampire), delay (Analog Delay, Beat Delay), distortion (RedLightDist™), dynamics processing (Channel Strip, Compressor, Gate, Expander, Fat Channel, Limiter, Tricomp™), equalizer (Channel Strip, Fat Channel, Pro EQ), modulation (Autofilter, Chorus, Flage, Phaser, X-Trem), reverb (Mixverb™, Room Reverb), and utility (Binaural Pan, Mixtool, Phase Meter, Spectrum Meter, Tuner)

  • Page 6: What Is In The Box 包装里有什么

    24-bit, 192 kHz conversion; high-speed Thunderbolt 3 XMAX Clase A; conversión en alta definici ón a 24-bit y 192 and Ö ffnen Sie die Websei te My.PreSonus. Allez sur my.preso nus. com et com un d reg ist rieren Si e Ihre enregistrez vot re num éro de sé...

  • Page 7: Frontpanelconnectionsandcontrols

    前面板的连接和控制 About XMAX Preamps and Combo Jacks. Your Quantum 2626 interface is equipped with 8 PreSonus XMAX microphone preamplifiers for use with all types of microphones. The XMAX design provides a Class A input buffer, followed by a dual-servo gain stage. This arrangement results in ultra-low noise and wide gain control, allowing you to boost signals without increasing noise.
  • Page 8 Quantum 2626 Hookup PreampGain: Use this control to adjust the level of the microphone preamps for each Channel. PreampGain: 用这个控制来调整每个通道的麦克风前置放大器 的电平。 Signal LEDs. The Input Signal LEDs offer three signal threshold indications: Signal LEDs. (信号LED灯) 输入信号LED灯，共三种信号阈值指示： • Green.The light will illuminate green when the input signal exceeds - 50 dBFS •...

  • Page 9: Back Panel Connections 后面板的连接

    Hookup Quantum 2626 Owner’sManual Back Panel Connections Headphones. Your Quantum 2626 interface provides two headphone outputs, each with its own level control. Both headphone outputs share a stream with the Main Outputs. Headphones. 你的 Quantum 2626 接口提供了两个耳机输 出，每个都有自己的电平控制。这两个耳机输出 与 ”Main Outputs” 主输出共享一个音频流。 Sync light.
  • Page 10 Hookup Quantum 2626 Owner’sManual Back Panel Connections Back Panel Connections 后面板连接 Line Outputs. Quantum 2626 interfaces have 8 TRS Balanced Line Outputs to route to external devices, such as headphone amps, signal processors, and additional monitors. Line Outputs. 线路输出。Quantum 2626 接口有8个TRS 平衡线路输出，可以路由到外部设备，如耳机放大器、...
  • Page 11 Hookup Quantum 2626 Owner’sManual Back Panel Connections WordClockInandOut.These BNC connections allow Quantum 2626 to receive and transmit word clock to and from other digital audio devices. WordClockInandOut.字时钟输入和输出。这些BNC连接允许 Quantum 2626 接收和传输字时钟到其他数字音频设备。 PowerUser Tip:In UC Surface,when using the BNC Clock input, you will need to set “BNC”...
  • Page 12 Hookup Quantum 2626 Owner’sManual Back Panel Connections UC Surface ADAT 用户提示：在 中，当使用外部 设备作为主时钟时，需要将 "ADAT 1 " 设置为时钟源，并将采样率与外部设备对应。详见第 ”ADAT 2” 节。 输入不能用于接收字时钟。 Thunderbolt port. Use this port to connect your Quantum 2626 interface to your computer. Thunderbolt port. 使用这个端口将Quantum 2626接口连接到你的电脑 上 。 Note: If your computer has Thunderbolt 2 ports, you’ll need a bi-directional Thunderbolt 3 to Thunderbolt 2 adapter.

  • Page 13: Quantum Hookup Diagram

    Quantum 2626 Hookup Owner’sManual Quantum Hookup Diagram Quantum Hookup Diagram 连接图 See www.presonus.com for the latest system requirements. DigiMax-series preamps or other compatible hardware...

  • Page 14: Connectingtoacomputer 连接 到计算机

    迟（延迟），提高整体性能。 The Universal Control installer for macOS and Windows is available for download from your My PreSonus user account. This bundled installer includes Universal Control, UC Surface, and the audio driver for your Quantum 2626. To begin, you must first visit http://my.presonus.com, create or log into your user account, and register your Quantum 2626 interface.
  • Page 15 Quantum 2626 Connecting to a Computer If this message does not appear in Security & Privacy, restart the computer. 如果该信息没有出现在”Security & Privacy” 安全与隐私中，请重新启动计算机。 Note: If Universal Control has already been installed and Quantum is not syncing, run the uninstaller and reinstall the latest version of Universal Control to install the driver.

  • Page 16: 3.2 Using A Quantum 2626 Interface With Popular Audio Applications

    1. Launch Ableton Live. 启动 Ableton Live 2. Go to Options| Preferences | Audio. 进入选项|首选项|音频。 3. Choose Driver Type: ASIO | Audio Device: ASIO PreSonus Quantum 2626 Go to Input Config: Enable and select the desired Inputchannels. 选择驱动类型: ASIO | 音频设备：ASIO PreSonus Quantum 2626 转到输入配置：启用并选择需要的输入通道。...
  • Page 17 Connecting to a Computer Quantum 2626 Owner’sManual Usinga Quantum 2626 Interfacewith Popular Audio Applications The second column in the pop-up window will be named Provided by Driver. Activate each of these labels for your Quantum 2626. When you are done, close this window. 在弹出的窗口中，第二列将被命名为...
  • Page 18 3. Select “VST Audio System”from the Devices column in the Device Setup. 在 ”Device Setup”设备设置的设备栏中选择 ”VST Audio System” VST音频系统。 4. Select PreSonus Quantum 2626 from the ASIO Driver dropdown list. 从”ASIO Driver” 驱动下拉列表中选择 PreSonus Quantum 2626。 5. Click “Switch”to begin using the Quantum 2626 driver.

  • Page 19: Ucsurfacecontrolsoftware

    UC Surface Control Software Quantum 2626 Owner’sManual Usinga Quantum 2626 Interfacewith Popular Audio Applications UC Surface Control Software UC表面控制软件 UC Surface is a powerful control software for your Quantum 2626 interface. These control functions are completely integrated inside Studio One. UC Surface allows users of other popular DAW applications to access these functions.

  • Page 20: Uc Surface Launch Window 启动窗口

    Quantum 2626 UC Surface ControlSoftware Owner’sManual UC Surface Launch Window UC表面启动窗口 Sample Rate. Changes the sample rate. Sample Rate. 改变采样率。 You can set the sample rate to 44.1, 48, 88.2, 96, 176.4, or 192 kHz. A higher sample rate will increase the fidelity of the recording but will increase the file size and the amount of system resources necessary to process the audio.

  • Page 21: Rta

    Quantum 2626 UC Surface ControlSoftware Owner’sManual information to and from the preamp controls. Select ‘External MIDI Only’ if you would like to control your preamp functions from a MIDI device that is connected to the MIDI connections on the back of your Quantum-series interface. Select ‘Enabled’ to use both.
  • Page 22 Quantum 2626 UC Surface ControlSoftware Owner’sManual Range. Use the Range controls to set the upper and lower decibel limits that the RTA will display. Range. 使用 ”Range” 控制，设置RTA将显示的分贝上限和下限。 Hold. Use this control to set the peak hold time for each band of the RTA. Hold.

  • Page 23: Aggregating Devices

    Quantum 2626 Aggregating Devices Owner’sManual macOS Aggregating Devices 聚集设备 Up to four Quantum-series interfaces can be aggregated together for combined 104 inputs and 128 outputs at 44.1 and 48 kHz. It is possible to connect the Quantum 2626 to other Quantum devices, provided the correct Thunderbolt 3 to Thunderbolt 2 bi-directional adapter is used.
  • Page 24 Quantum 2626 Aggregating Devices Owner’sManual macOS 5. Connect your other Quantum interfaces. Each unit will be require a Thunderbolt cable to daisy-chain it to the previous unit as well as a BNC cable for clocking. Tick the “Use” box next to this interface in Audio MIDI setup. 连接你其他的...
  • Page 25 Quantum 2626 Aggregating Devices Owner’sManual macOS Quantum 2626 (Secondary) Quantum #3(Secondary) QUANTUM 12V 5A IN 25 -3 2 48 kH z 17 -2 4 19 -2 6 48 kH z 11 -1 8 Mic/Line Inputs Power MIDI Clock S/PDIF Main Out Line OutputsTRS Balanced 21-24 96kHz 17-20 15-18 96kHz 11-14 Quantum #2(Secondary)

  • Page 26: Windows 系统

    Quantum 2626 Aggregating Devices Owner’sManual Windows Windows 系统 1. Connect your Quantum interfaces to your computer and launch Universal Control. 将你的 Quantum 接口连接到您的电脑，并启动 通用控制。 Please Note: Your Quantum interfaces must be clocked to each other via BNC and one unit must be designated as the Primary, by selecting Internal Clock Source in Universal Control.
  • Page 27 Quantum 2626 Aggregating Devices Owner’sManual Windows 3. Select the Quantum interface you would like to use for the next bank of channels. Set the Aggregation Order to “2” and the Clock Source to Wordclock. 选择你想用于下一组通道的 Quantum 接口。将聚合顺序设置为 "2"， 将 “Clock Source” 设置为 “Wordclock”。 4.

  • Page 28: Studiooneartistquickstart 快速入门

    还可以使用 Studio One，为 PreSonus 接口提供的独家Cue Mix功能中的先进 的功能。 Power User Tip: As a valued PreSonus customer, you are eligible for a discount upgrade to Studio One Professional. For more details on the Studio One upgrade program for PreSonus customers, please visit http://studioone.presonus.com/.
  • Page 29 授权 When Studio One is launched for the first time on your computer, it will communicate with your My PreSonus account and verify your registration. To ensure a seamless authorization process, make sure to download your installer to the computer on which you will be using it and be sure that your computer is connected to the Internet when you launch the application for the first time.

  • Page 30: Setting Up Studio One 设置 Studio One

    Studio One Artist Quick Start Setting Up Studio One Owner’sManual Power User Tip: You may be prompted to enter your My PreSonus user account information. Clicking “Remember Credentials” will allow you to have immediate access to any content you purchase from the PreSonus Marketplace.

  • Page 31: Configuring Midi Devices

    Quantum 2626 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 2. If you do not see your device listed on the Start page when you launch Studio One, click on the Configure Audio Devices link in the Setup area to open the Options window. 如果你在启动...
  • Page 32 Make sure you have connected the MIDI Out of your external MIDI controller to a MIDI In on your PreSonus audio interface (if available) or other MIDI interface. If you are using a USB MIDI controller, connect it to your computer and power it on.
  • Page 33 Quantum 2626 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 2. Click the Add button. This will launch the Add Device window. 点击 ”Add” 按钮。这将启动 ”Add Device” 窗口。 3. From the menu on the left, select your MIDI controller from the list of manufacturers and models.
  • Page 34 Quantum 2626 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 6. In the Receive From drop-down menu, select the MIDI interface input from which Studio One Artist will receive MIDI data (that is, the MIDI port to which your keyboard is connected). 在...
  • Page 35 Quantum 2626 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 1. In the External Devices window, click the Add button. 在 "External Devices" 窗口中，点击 "Add " 按钮。 2. Select your device in the menu on the left. If your device is not listed, select New Instrument.
  • Page 36 Quantum 2626 Studio One Artist Quick Start Owner’sManual Setting Up Studio One 4. In the Send To menu, select the MIDI interface output from which Studio One Artist will send MIDI data to your sound module. Click OK and close the External Devices window.
  • Page 37 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Creating a New Song 创作一首新的歌曲 Now that you’veconfigured your audio and MIDI devices,let’s create a new Song. We’ll start by setting up your default audio I/O. 你已经配置了你的音频和MIDI设备，现在让我们来创建一个新 的歌曲。我们将从你的默认音频输入/输出设置开始。 1.
  • Page 38 2. Click on the Audio I/O Setup tab. 点击音频 I/O 设置标签。 3. From the Inputs tab, you can enable any or all of the inputs on your PreSonus Quantum audio interface that you’d like to have available. We recommend that you create a mono input for each of the inputs on your interface. If you plan on recording in stereo, you should also create a few stereo inputs.
  • Page 39 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song 用户提示：如果你打算使用对讲机，你需要把它作为会话的一个输 入，并为它创建一个轨道。 4. Click on the Outputs tabs to enable any or all of the outputs on your Quantum audio interface. In the lower right corner, you will see the Audition select menu.
  • Page 40 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Creating Audio and MIDI Tracks 创建音频和 MIDI 音轨 6.3.2 1. In the upper left corner of the Arrange window, you will notice several buttons. The button furthest to the right is the Add Tracks button.

  • Page 41: Creating A New Song

    Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Power User Tip: If you would like to add an audio track for each of the available inputs, simply go to Track | Add Tracks for All Inputs. Track 用户提示...

  • Page 42: Recording An Audiotrack 录制一个音轨

    Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Recording an AudioTrack 录制一个音轨 6.3.3 1. To begin recording, create an audio track from the Add Tracks window, set its input to Input 1 on your Quantum 2626 interface, and connect a microphone to the same input..
  • Page 43 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Opening the browser. 开启浏览器。 In the lower right corner of the Arrange window are three buttons: 在编曲窗口的右下角有三个按钮： • The Edit button opens and closes the audio and MIDI editors. •...
  • Page 44 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song Drag-and-drop virtual instruments. 拖放虚拟乐器。 To add a virtual instrument to you session, open the browser and click on the Instrument button. Select the instrument or one of its patches from the instrument browser and drag it into the Arrange view.
  • Page 45 Quantum 2626 Studio One Artist Quick Start Owner’sManual Creating a New Song 通过将音频和MIDI文件从文件浏览器拖入编曲视图，可以快速定 位、试听并导入到歌曲中。 如果你把文件拖到一个空位上，就会创建一个新的轨道，把该文 件放在你拖动它的位置上。如果你把文件拖到一个现有的轨道上， 该文件将作为该轨道的一个新部分被放置。...
  • Page 46 Quantum 2626 Studio One Artist Quick Start Owner’sManual Monitor Mixing in Studio One Monitor Mixing in Studio One Studio One的监听混音 You can set up monitor mixes with your Quantum 2626 interface using Studio One’sunique CueMix feature.This featuretakes overthe monitor mix controlsoftware foryour Quantum 2626 interface and provideslevel and pan control from within Studio One.
  • Page 47 Quantum 2626 Studio One Artist Quick Start Owner’sManual Monitor Mixing in Studio One In the Large Console view, Cue Mix objects appear below the Send device rack on each channel. 在Large Console视图中，Cue Mix 对象出现在每个通道的Send设备架 下面。...
  • Page 48 Quantum 2626 Studio One Artist Quick Start Owner’sManual Monitor Mixing in Studio One 1. Activate Button.To completely remove any channel from a Cue Mix, simply deactivate the Cue Mix object for that channel. In most instances, you will leave this enabled. 2.
  • Page 49 Quantum 2626 Studio One Artist Quick Start Monitor Mixing in Studio One Owner’sManual 6.4.2 Punching In The Quantum 2626’s unique integration with Studio One and ultra-low latency performance make punching in easier than ever. This section will guide you through setting up a punch in so that there is no change sonically between audio you’re playing back and the audio you’re recording.

  • Page 50: Monitor Mixing In Studio One

    Quantum 2626 Studio One Artist Quick Start Owner’sManual Monitor Mixing in Studio One 5. Record Arm your track, making sure to disable input monitoring. You’re now ready to punch in. Simply rewind to the point in the song at which you’d like to start and click record. “Record Arm”...

  • Page 51: Technical Information

    Quantum 2626 Technical Information Owner’sManual Specifications Technical Information 技术信息 Specifications 规格 Microphone Preamp (XLR Balanced) Type XLR Female (via Combo), Balanced MaximumInputlevel +10 dBu (Balanced,min. gain) Gain ControlRange 60 dB Frequency Response 20 Hz to 20 kHz (+/- 0.15 dB,unity gain, 48 kHz) DynamicRange >110 dB(A-wtd,min.gain) TotalHarmonic Distortion...
  • Page 52 Quantum 2626 Technical Information Owner’sManual Specifications Headphone Outputs Type ¼”TRS Female,Stereo,Unbalanced,x2 MaximumOutputLevel 175 mW/channel (56Ω load) Frequency Response 20 Hz to 20 kHz (±0.5 dB, 48 kHz) DynamicRange > 110 dB (A-wtd) TotalHarmonic Distortion < 0.03% (1 kHz) Headphone Impedance(working range) 16Ω...
  • Page 53 额外 ：多余的卷心菜可以作为肉类、鸡蛋、三明治等的调味品。 ©2021 PreSonus Audio Electronics, Inc. All Rights Reserved. AudioBox USB, Capture, CoActual, EarMix, Eris, FaderPort, FireStudio, MixVerb, Notion, PreSonus, PreSonus AudioBox, QMix, RedLightDist, SampleOne, Sceptre, StudioLive, Temblor, Tricomp, and WorxAudio are registered trademarks of PreSonus Audio Electronics, Inc. Studio One is a registered trademark of PreSonus Software Ltd.
  • Page 54 Quantum 2626 Quantum 26x26 Thunderbolt 3 Audio Interface ™ Owner’s Manual 用户手册 Baton Rouge • USA www.presonus.com ® Part# 70-12000146-A...
