Cypress CAPSENSE CY3280-28 Series Quick Start Manual

CY3280-28XXX UNIVERSAL C
This kit needs to be plugged into the CY3280-SLM Linear Slider Module Kit to get started.
For information on CY3280-SLM, visit www.cypress.com.

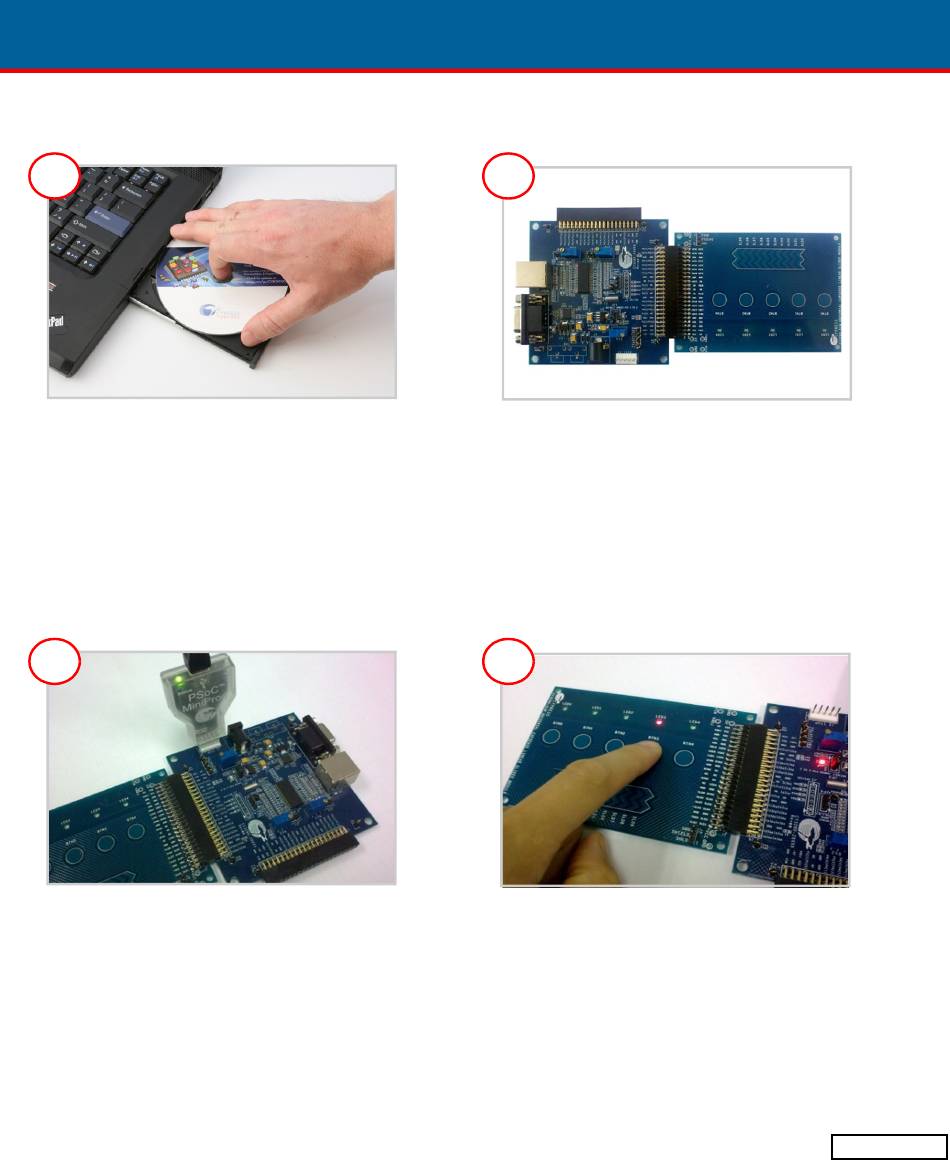

1
Install Software
Install Software PSoC Programmer and
PSoC Designer
3
Program the Board

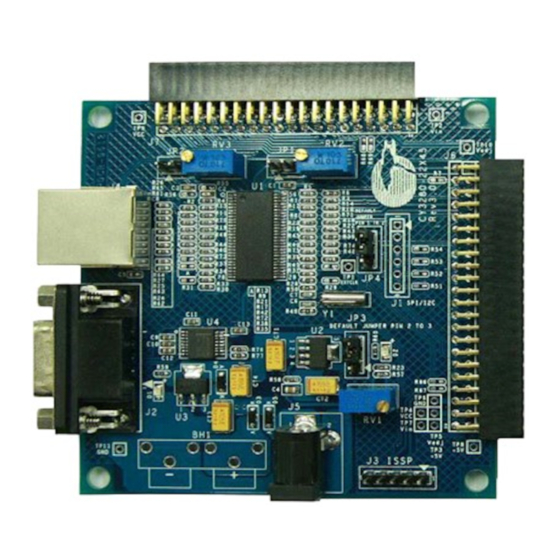

• Connect your computer to the CY3280-28XXX
by the PSoC MiniProg and a USB cable
• Program the board with the file
CY3280_28XXX_SLM.hex on the CD
• Power on the board with external power
supply
S ™ CONTROLLER DEVELOPMENT KIT
AP ENSE
QUICK START GUIDE
2
Kit Setup
• Connect the CY3280-SLM Module with the
CY3280-28XXX Board
• Place shunts on pins 2 and 3 of JP1 and pins
1 and 2 of JP4 of CY3280-28XXX Board
• Place shunt on pins 2 and 3 of JP2 on
CY3280-SLM module
4
Test the Board
• Touch one or more buttons with your finger
• The LEDs light up corresponding to the buttons
being pressed
