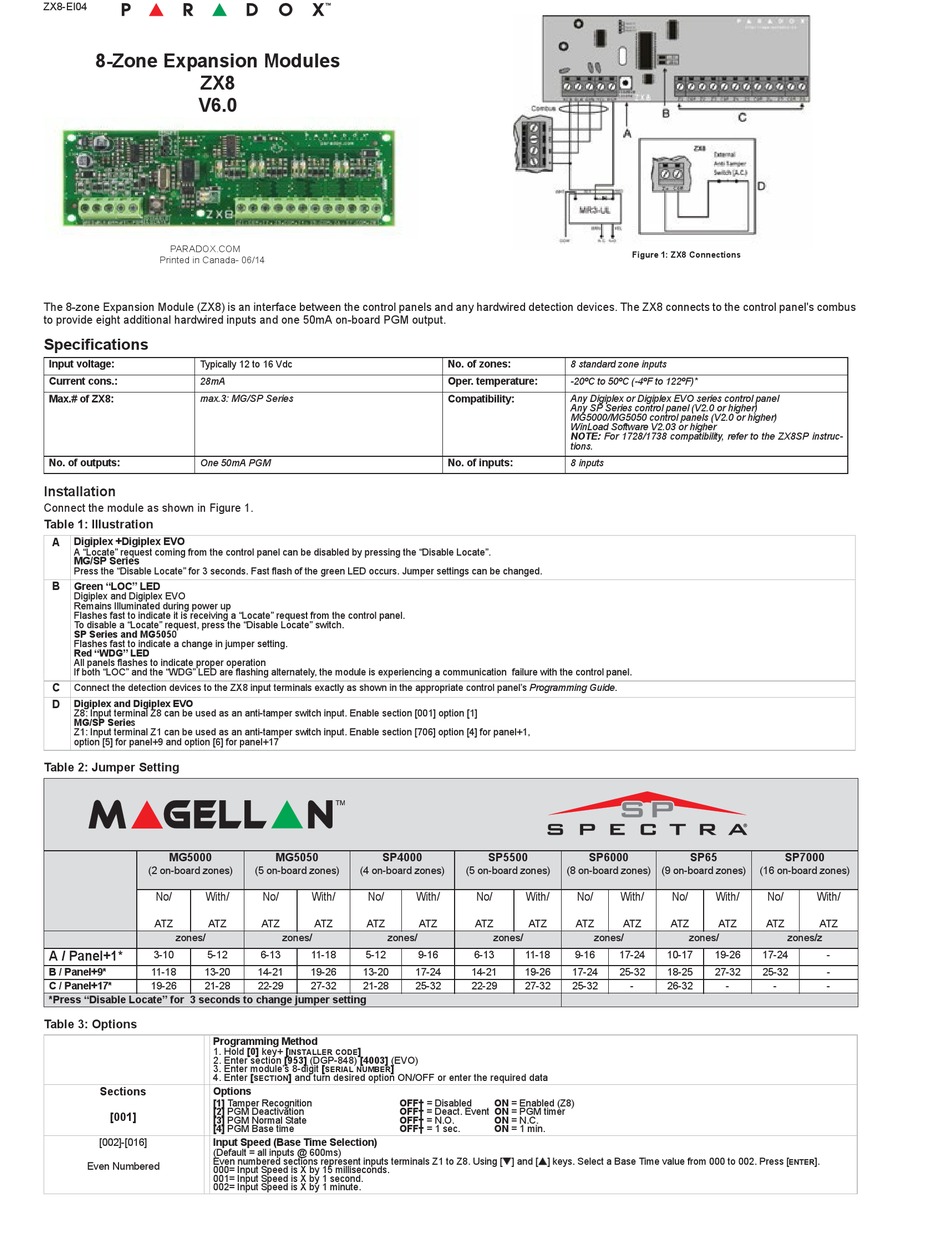

ZX8-EI04
8-Zone Expansion Modules
ZX8
V6.0
PARADOX.COM
Printed in Canada- 06/14

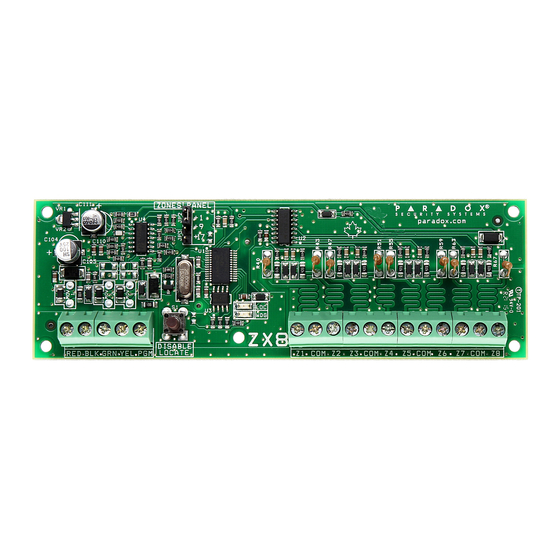

The 8-zone Expansion Module (ZX8) is an interface between the control panels and any hardwired detection devices. The ZX8 connects to the control panel's combus
to provide eight additional hardwired inputs and one 50mA on-board PGM output.
Specifications
Input voltage:
Typically 12 to 16 Vdc
Current cons.:
28mA
Max.# of ZX8:
max.3: MG/SP Series
No. of outputs:
One 50mA PGM
Installation
Connect the module as shown in Figure 1.
Table 1: Illustration
A
Digiplex +Digiplex EVO
A "Locate" request coming from the control panel can be disabled by pressing the "Disable Locate".
MG/SP Series
Press the "Disable Locate" for 3 seconds. Fast flash of the green LED occurs. Jumper settings can be changed.
B
Green "LOC" LED
Digiplex and Digiplex EVO
Remains Illuminated during power up
Flashes fast to indicate it is receiving a "Locate" request from the control panel.
To disable a "Locate" request, press the "Disable Locate" switch.
SP Series and MG5050
Flashes fast to indicate a change in jumper setting.
Red "WDG" LED
All panels flashes to indicate proper operation
If both "LOC" and the "WDG" LED are flashing alternately, the module is experiencing a communication failure with the control panel.
C
Connect the detection devices to the ZX8 input terminals exactly as shown in the appropriate control panel's Programming Guide.
D
Digiplex and Digiplex EVO
Z8: Input terminal Z8 can be used as an anti-tamper switch input. Enable section [001] option [1]
MG/SP Series
Z1: Input terminal Z1 can be used as an anti-tamper switch input. Enable section [706] option [4] for panel+1,
option [5] for panel+9 and option [6] for panel+17
Table 2: Jumper Setting
MG5000
(2 on-board zones)
No/
With/
ATZ
ATZ
zones/
A / Panel+1*
3-10
5-12
B / Panel+9*
11-18
13-20
C / Panel+17*
19-26
21-28
*Press "Disable Locate" for 3 seconds to change jumper setting
Table 3: Options
Programming Method
1. Hold [0] key+ [
2. Enter section [953] (DGP-848) [4003] (EVO)
3. Enter module's 8-digit [
4. Enter [
Sections
Options
[1] Tamper Recognition
[2] PGM Deactivation
[001]
[3] PGM Normal State
[4] PGM Base time
[002]-[016]
Input Speed (Base Time Selection)
(Default = all inputs @ 600ms)
Even numbered sections represent inputs terminals Z1 to Z8. Using [q] and [p] keys. Select a Base Time value from 000 to 002. Press [
Even Numbered
000= Input Speed is X by 15 milliseconds.
001= Input Speed is X by 1 second.
002= Input Speed is X by 1 minute.
MG5050
SP4000
(5 on-board zones)
(4 on-board zones)
No/
With/
No/
With/
ATZ
ATZ
ATZ
ATZ
zones/
zones/
6-13
11-18
5-12
9-16
14-21
19-26
13-20
17-24
22-29
27-32
21-28
25-32
]
INSTALLER CODE
]
SERIAL NUMBER
] and turn desired option ON/OFF or enter the required data
SECTION
OFF† = Disabled
OFF† = Deact. Event ON = PGM timer
OFF† = N.O.
OFF† = 1 sec.
No. of zones:
8 standard zone inputs
Oper. temperature:
-20ºC to 50ºC (-4ºF to 122ºF)*
Compatibility:
Any Digiplex or Digiplex EVO series control panel
Any SP Series control panel (V2.0 or higher)
MG5000/MG5050 control panels (V2.0 or higher)
WinLoad Software V2.03 or higher
NOTE: For 1728/1738 compatibility, refer to the ZX8SP instruc-
tions.
No. of inputs:
8 inputs
SP5500
SP6000
(5 on-board zones)
(8 on-board zones)
No/
With/
No/
With/
ATZ
ATZ
ATZ
ATZ
zones/
zones/
6-13
11-18
9-16
17-24
14-21
19-26
17-24
25-32
22-29
27-32
25-32
ON = Enabled (Z8)
ON = N.C.
ON = 1 min.
Figure 1: ZX8 Connections
SP65
SP7000
(9 on-board zones)
(16 on-board zones)
No/
With/
No/
ATZ
ATZ
ATZ
zones/
zones/z
10-17
19-26
17-24
18-25
27-32
25-32
-
26-32
-
-
ENTER
With/
ATZ
-
-
-
].
